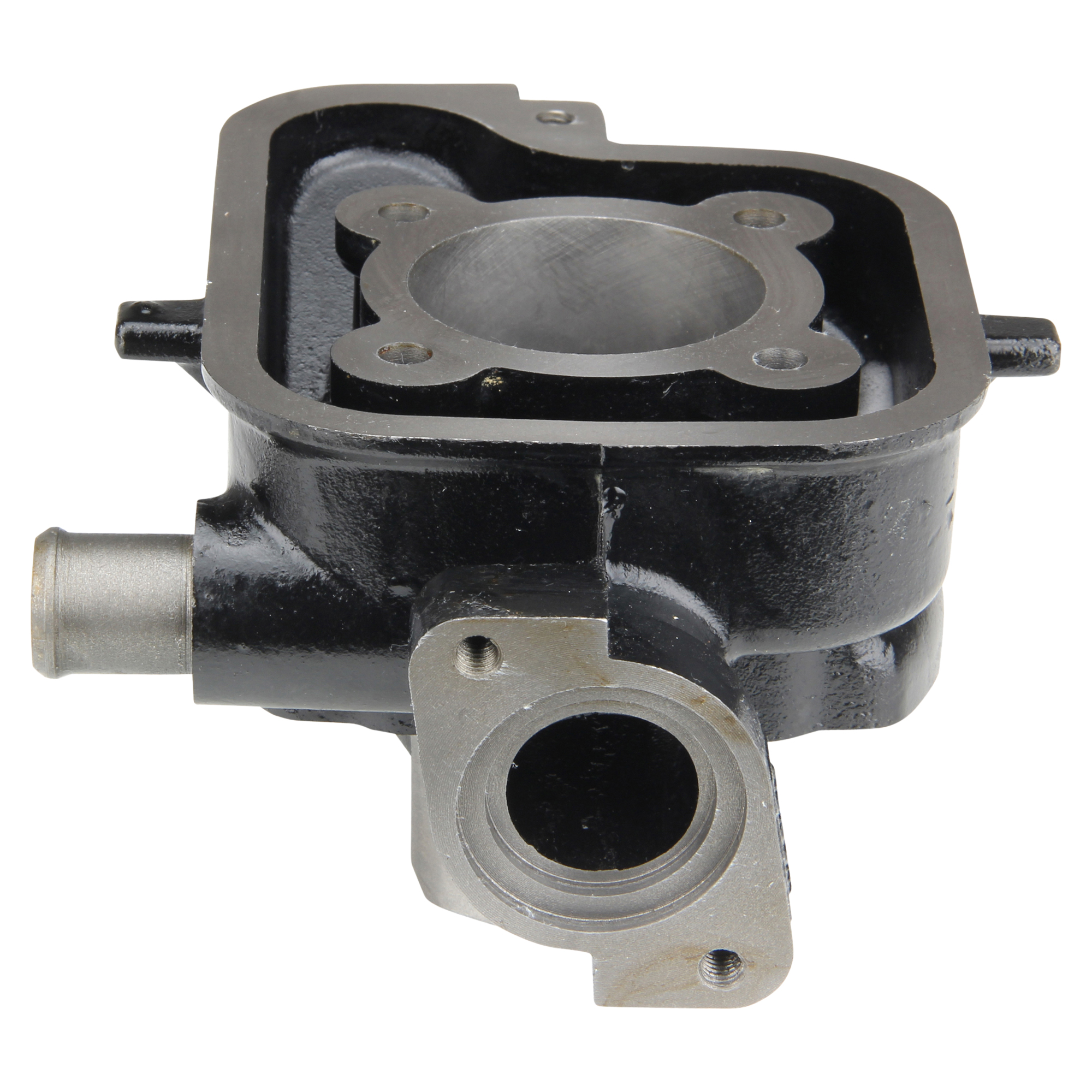

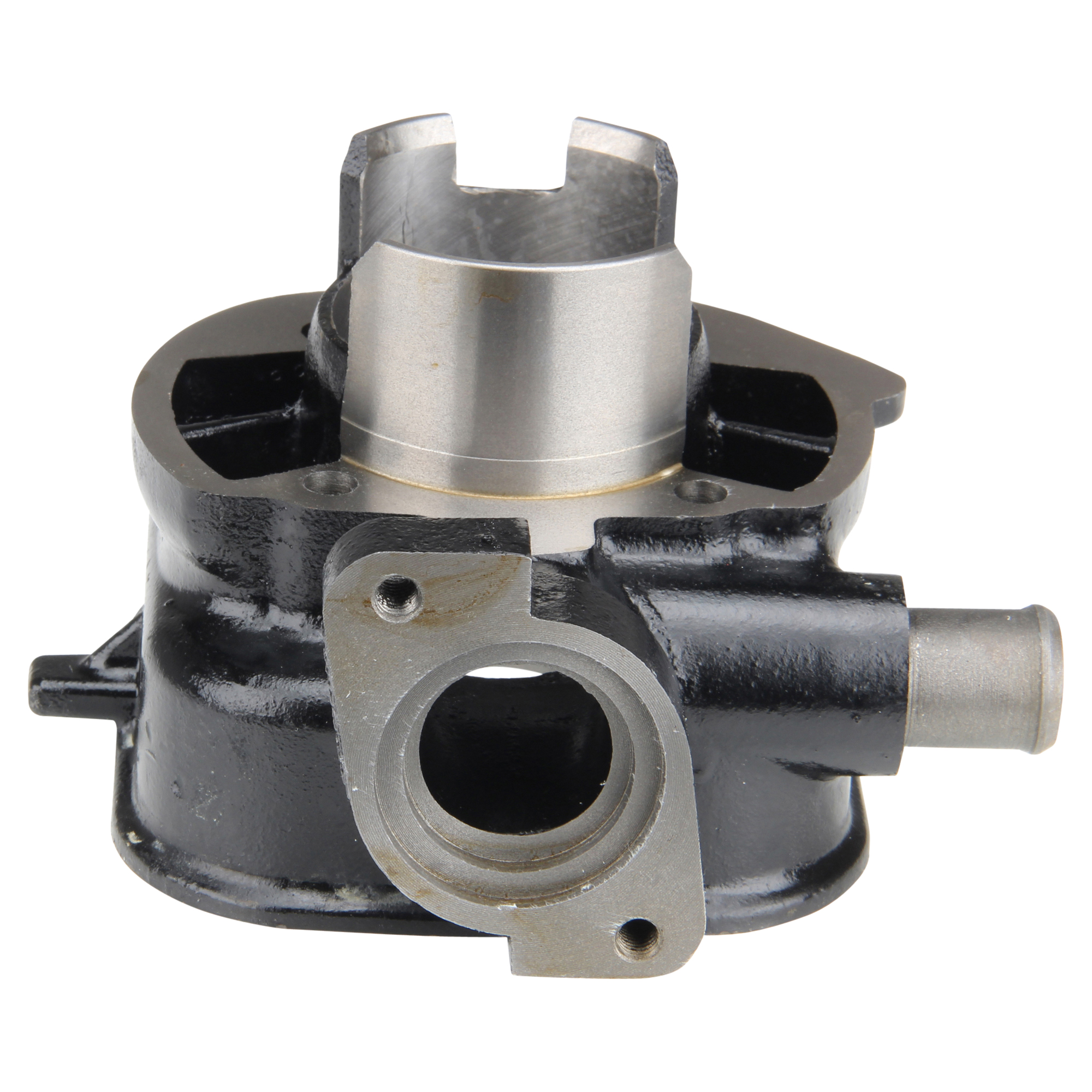

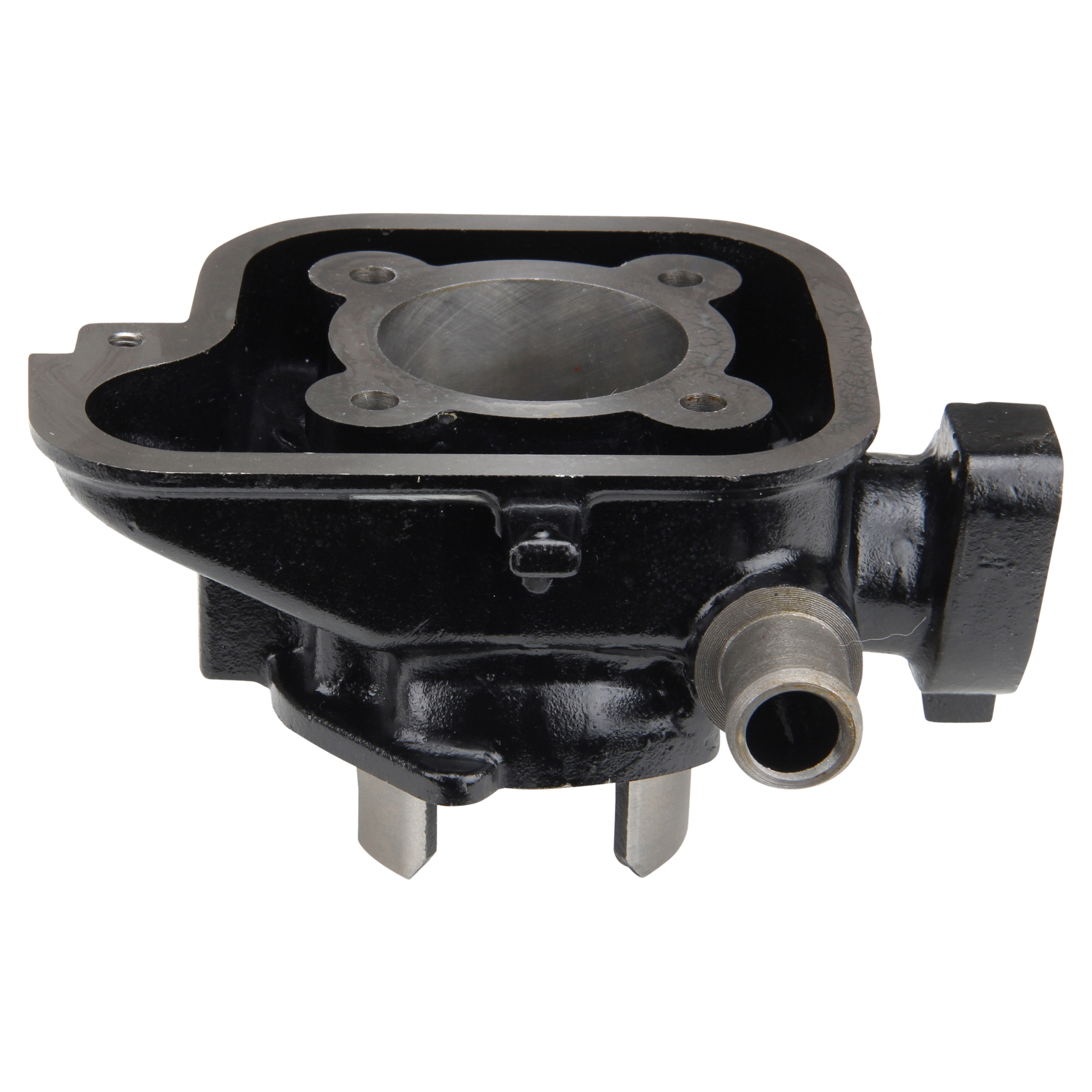

Cylinder Kit + Head 70ccm 47mm Peugeot LC Jet Force C-Tech / Ludix / Speedfight 3 - Citomerx 106035
- Manufacturer: Citomerx
- Item no: 106035
- Manufacturer no.: 106035
- EAN: 4060861224188
Item data
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 140 x 100 x 60 mm |
| Piston pin diameter: | 12 mm |
| Displacement: | 70 ccm |
| Can the original cylinder head be used?: | Yes |
| Cylinder head stud bolt spacing: | 48 x 48 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Cylinder head stud diameter: | 7 mm |
| Surface finish: | Matt |
| Cylinder special feature: | Anschluss Kühlwasser: 18 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861224188 |
| Diffuser internal dimension: | 23 mm |
| Cylinder dimensions (LxWxH): | 155 x 120 x 90 mm |
| Outlet Stud distance: | 54 mm |

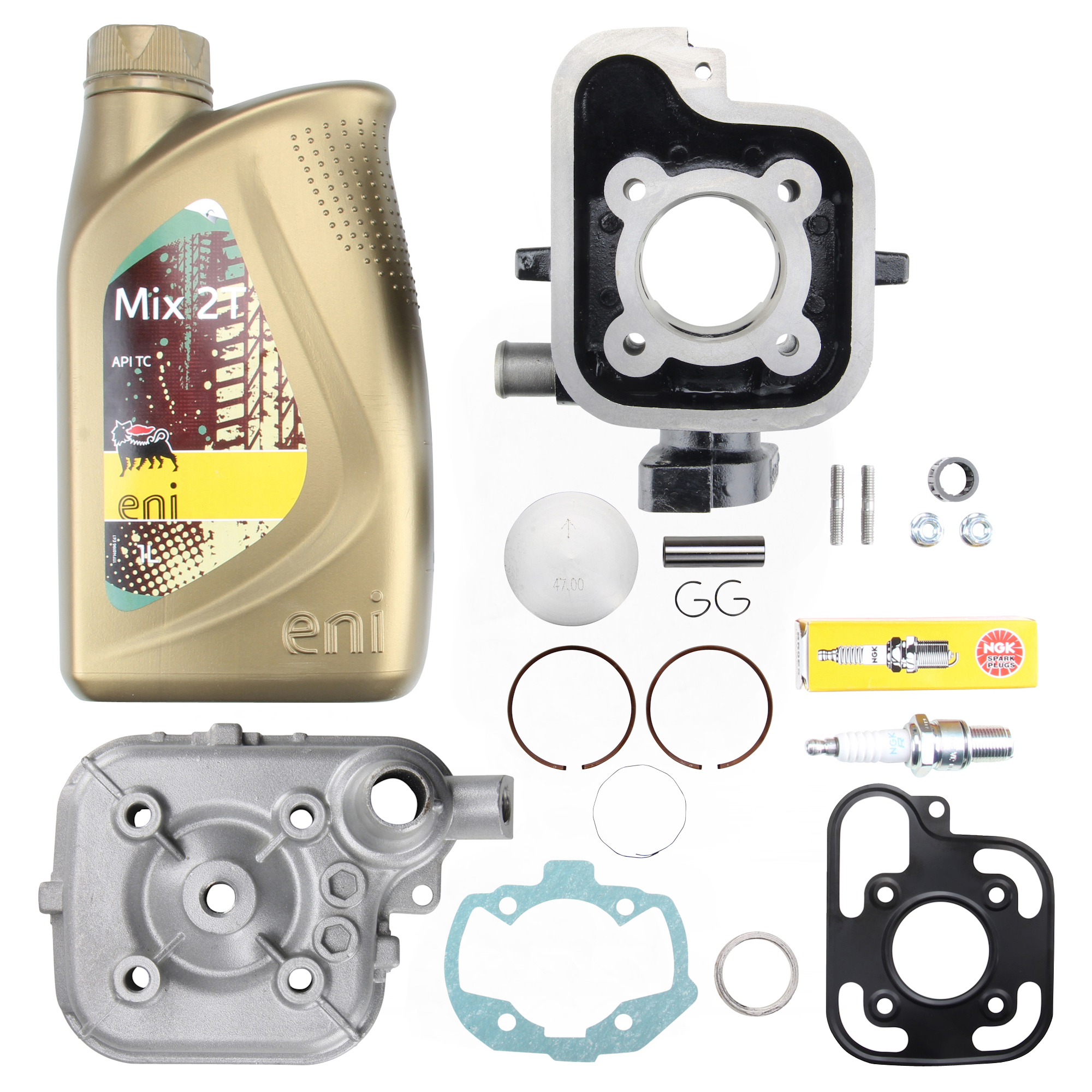

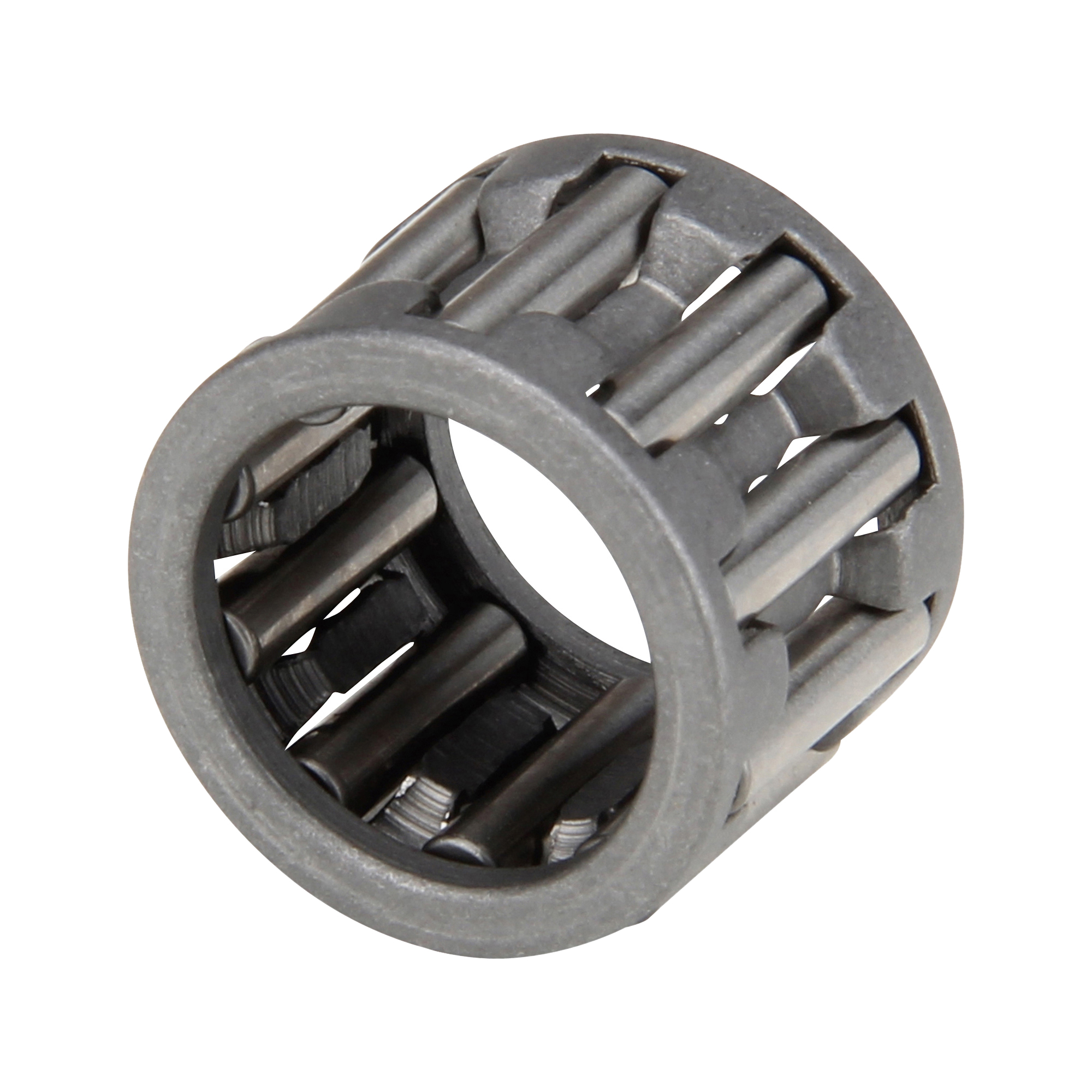

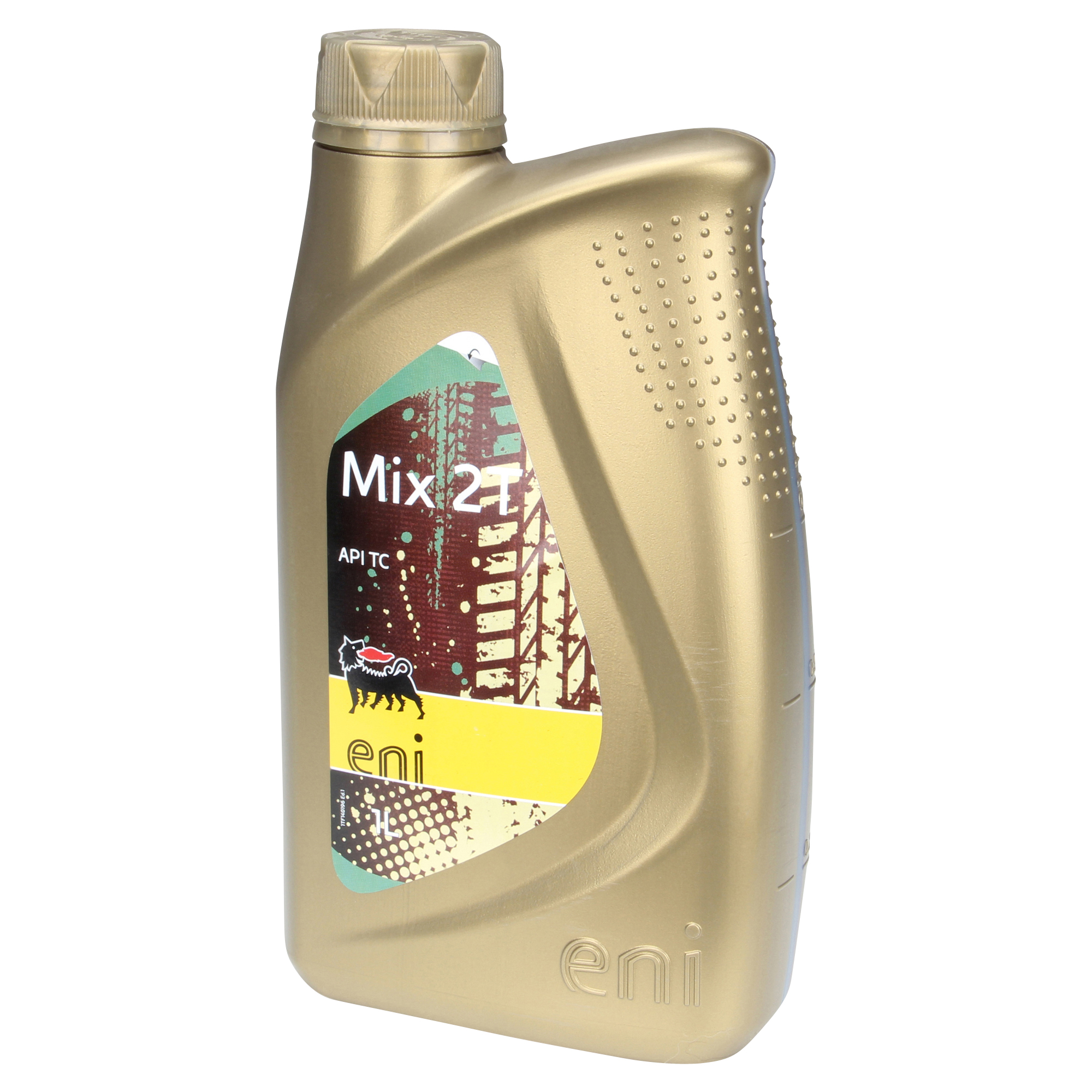

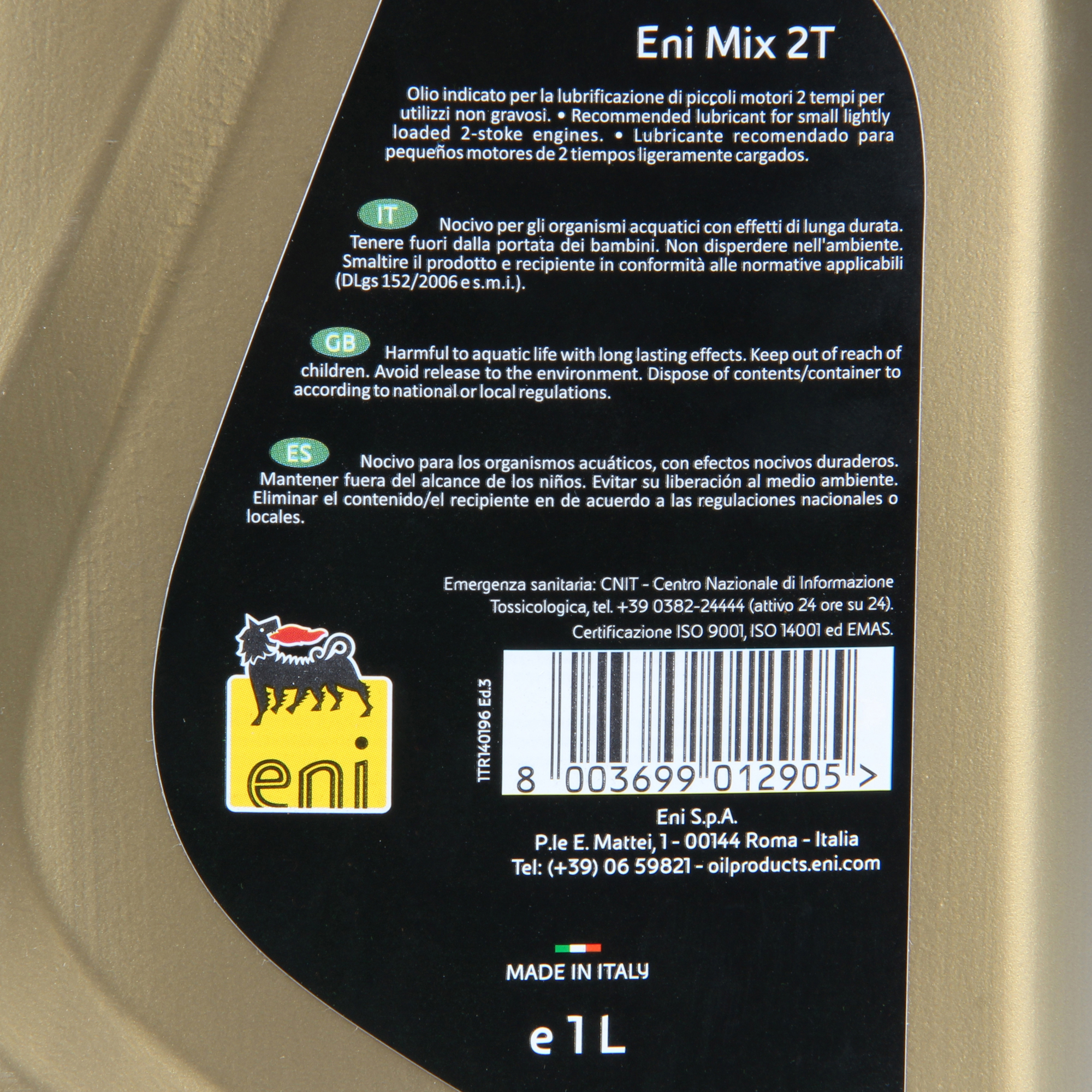

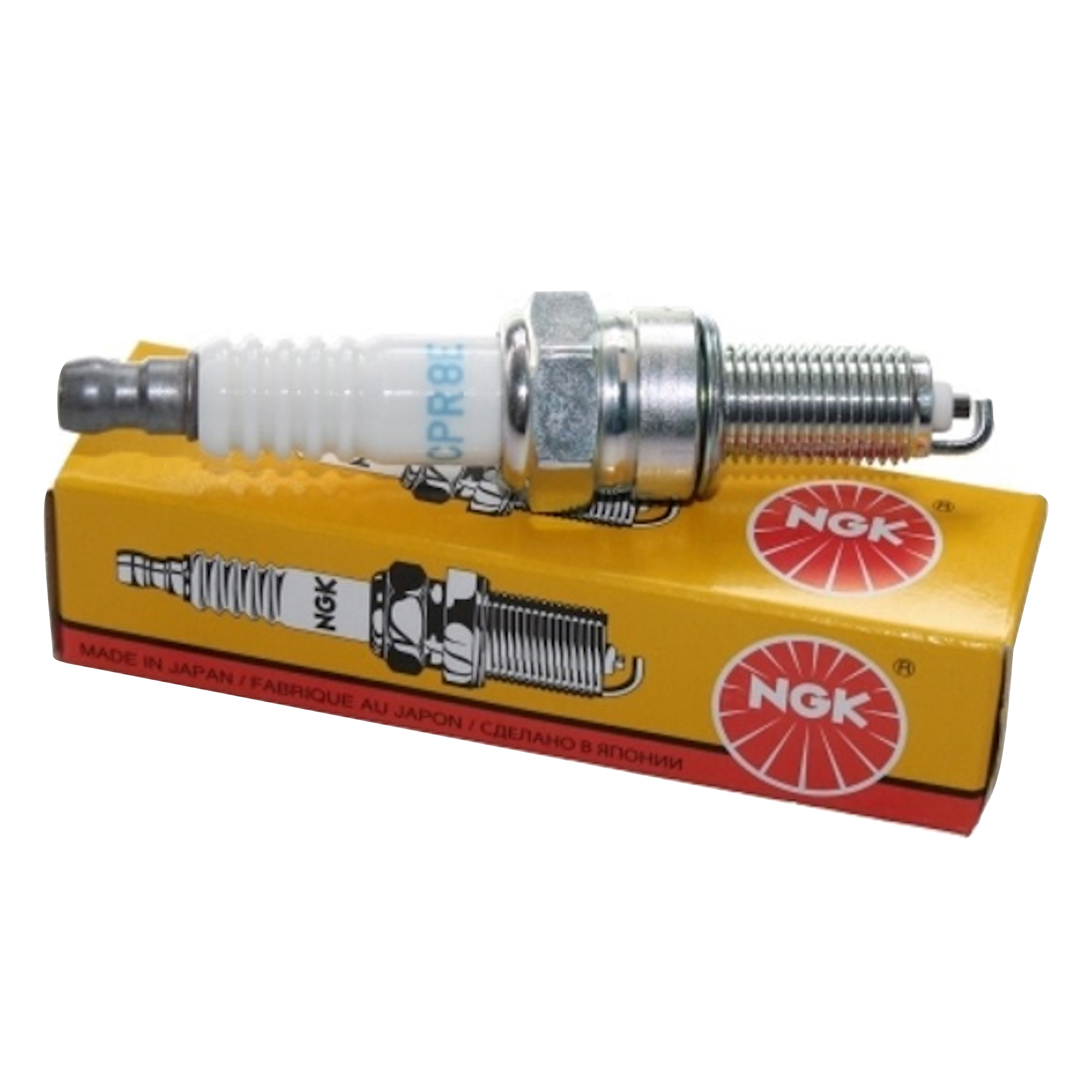

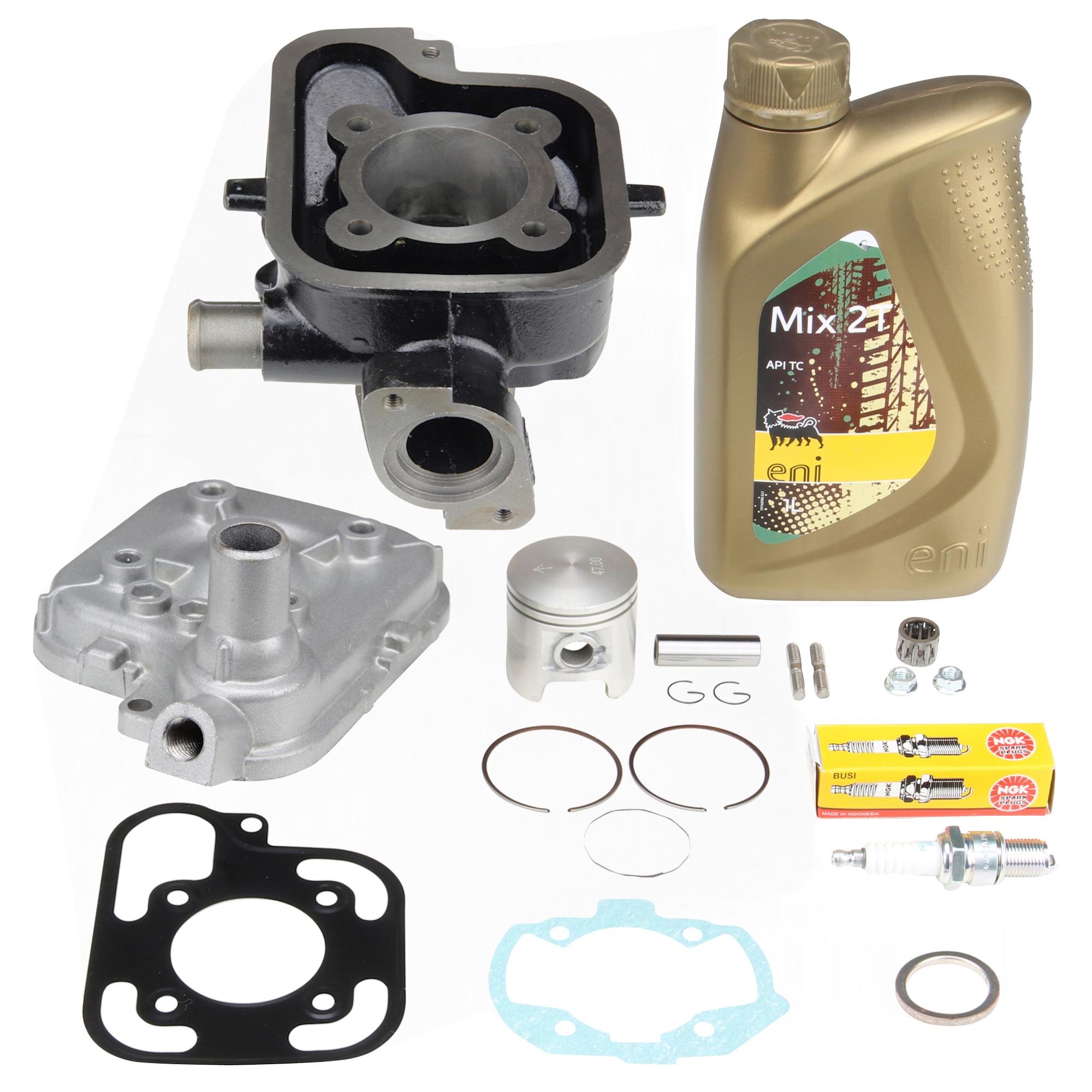

| Scope of delivery: | Cylinder head, Cylinder, Gasket set, Kolben Set, 2x Stehbolzen M6x26, 2x Krümmermutter M6, Öl Agip Mix 2T, Nadellager 12x16x16, Zündkerze NGK CPR8E |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 48 x 48 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 7 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 106035 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder set Cylinder head Needle bearing Spark plug Stud bolt Oil |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Tuning |
| suitable for: | Peugeot LC horizontal |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
70cc 47mm Cylinder Kit with Head for Peugeot Speedfight 1 2 LC Upright – Citomerx
Cylinder kit 50cc + cylinder head + gasket set for Peugeot Jetforce / Speedfight 3 / Ludix LC
Cylinder head 50cc 40mm for Peugeot LC horizontal Jet Force 50 C-Tech / Ludix 1 2 / Speedfight 3
The high-quality Cylinder Kit + Head 70ccm 47mm LARGE by Citomerx is the ideal choice for increasing the performance of your Peugeot LC with a horizontal engine. This kit fits perfectly for Peugeot Jet Force C-Tech, Peugeot Ludix 1 and 2, and Peugeot Speedfight 3 with a liquid-cooled engine. The optimized design ensures improved combustion, resulting in more power and torque. Perfect for tuning enthusiasts who want to get the maximum out of their scooter.
Features:
-
Displacement: 70ccm
-
Bore: 47mm
-
Suitable for Peugeot LC horizontal engines
-
High-quality construction for long durability
-
Optimal power delivery and improved cooling
-
Perfect replacement or upgrade for worn-out original cylinders
Fits the following models:
-
Peugeot Jet Force C-Tech (LC)
-
Peugeot Ludix 1 & 2 (LC)
-
Peugeot Speedfight 3 (LC)
-
Other Peugeot scooters with a liquid-cooled horizontal engine
