Cylinder Kit 50cc Peugeot Speedfight 1 2 LC upright 40mm with Cylinder Head Citomerx
- Manufacturer: Citomerx
- Item no: 105827
- Manufacturer no.: 105827
- EAN: 4060861222351
Item data
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 140 x 100 x 40 mm |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Cylinder head stud bolt spacing: | 48 x 48 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Cylinder head stud diameter: | 7 mm |
| Surface finish: | Matt |
| Cylinder special feature: | Anschluss Kühlwasser: 18 mm |
| GTIN: | 4060861222351 |
| Diffuser internal dimension: | 22 mm |
| Cylinder dimensions (LxWxH): | 140 x 100 x 90 mm |
| Outlet Stud distance: | 54 mm |

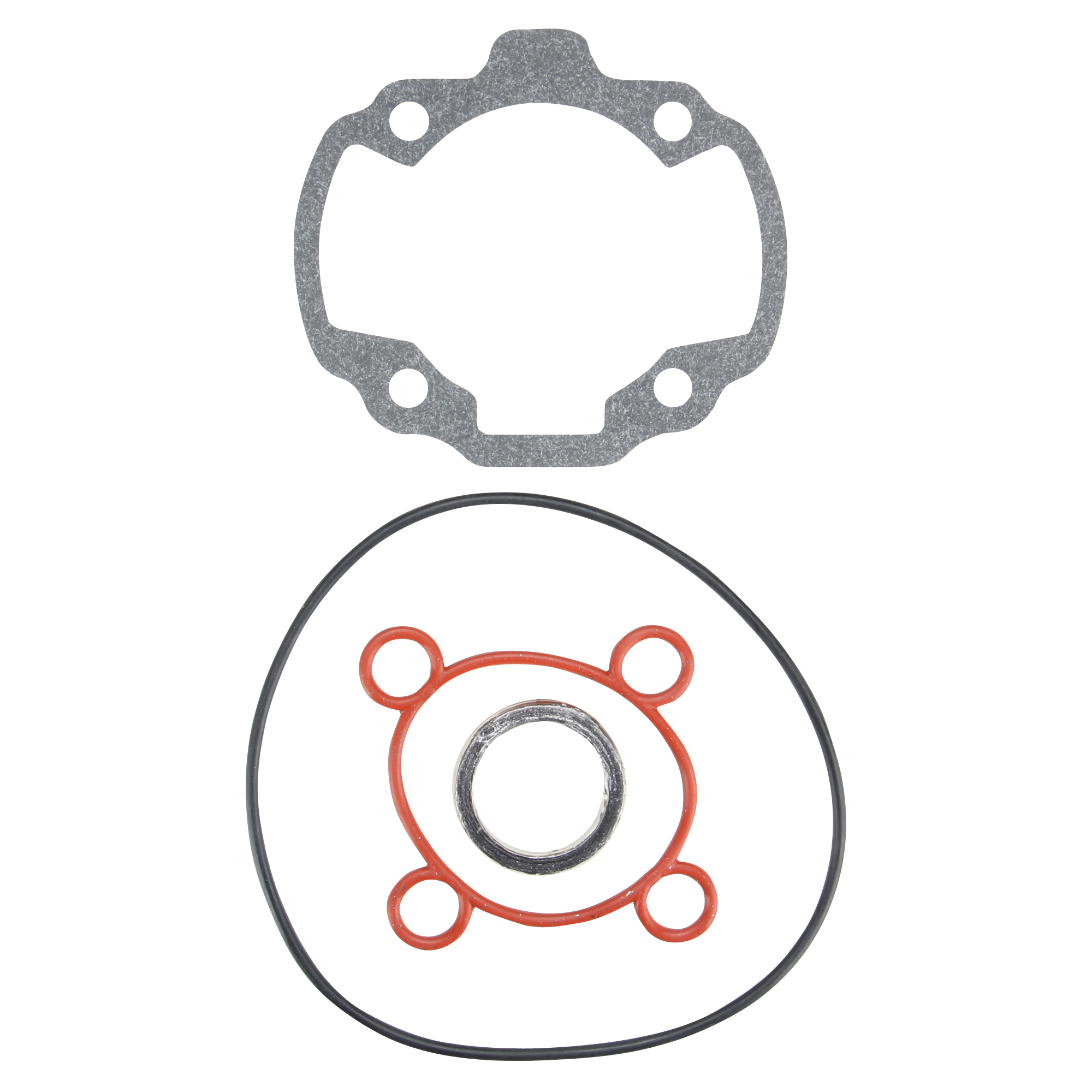

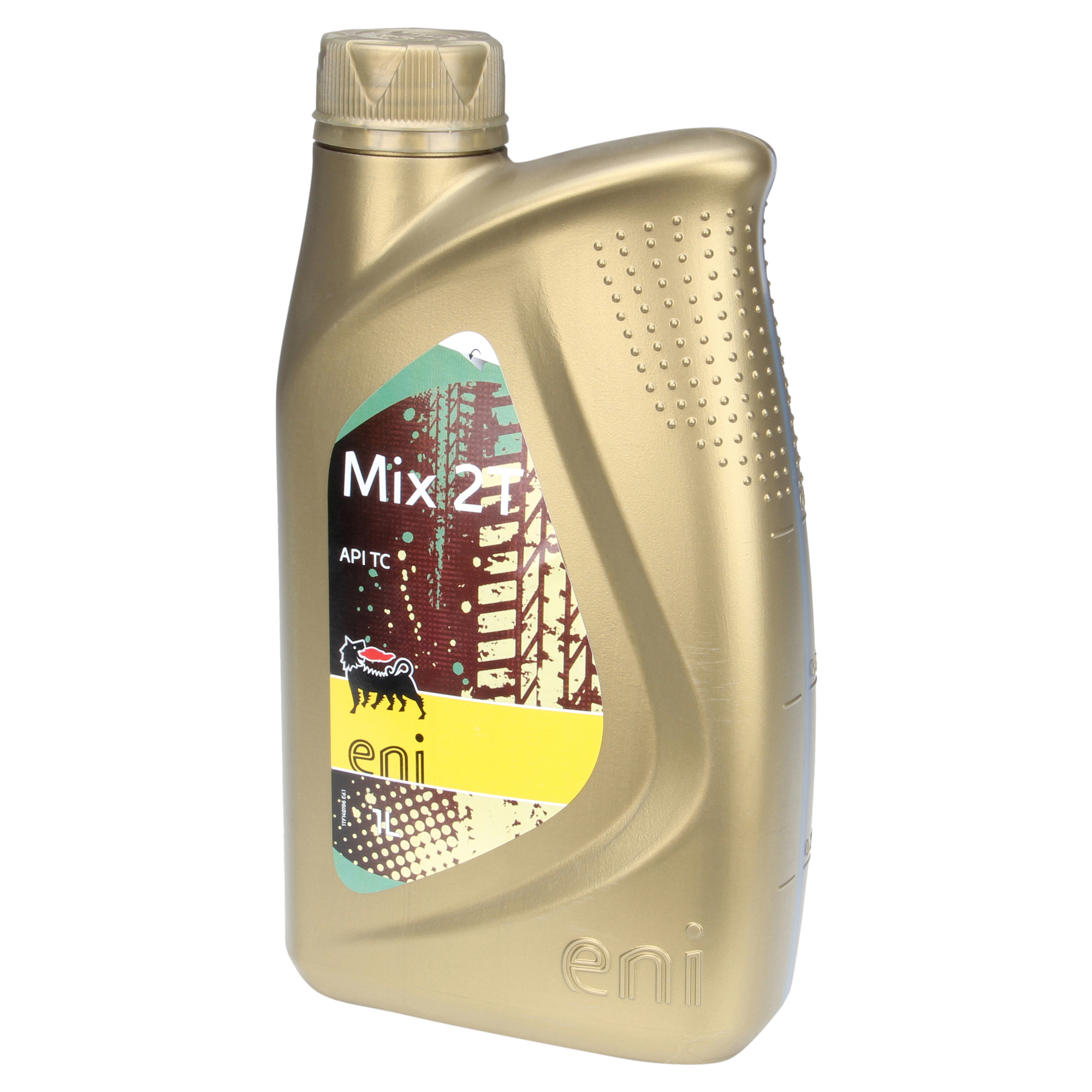

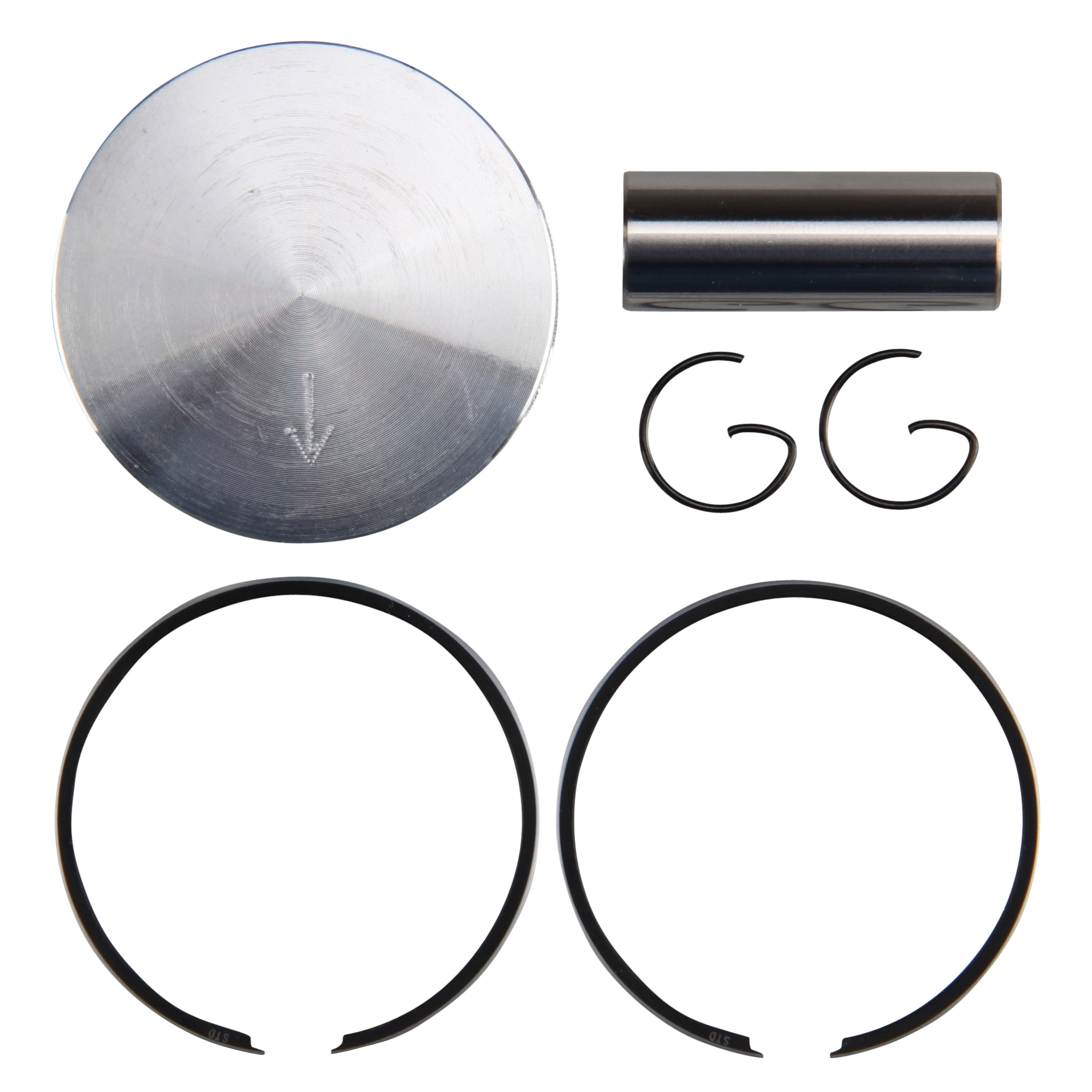

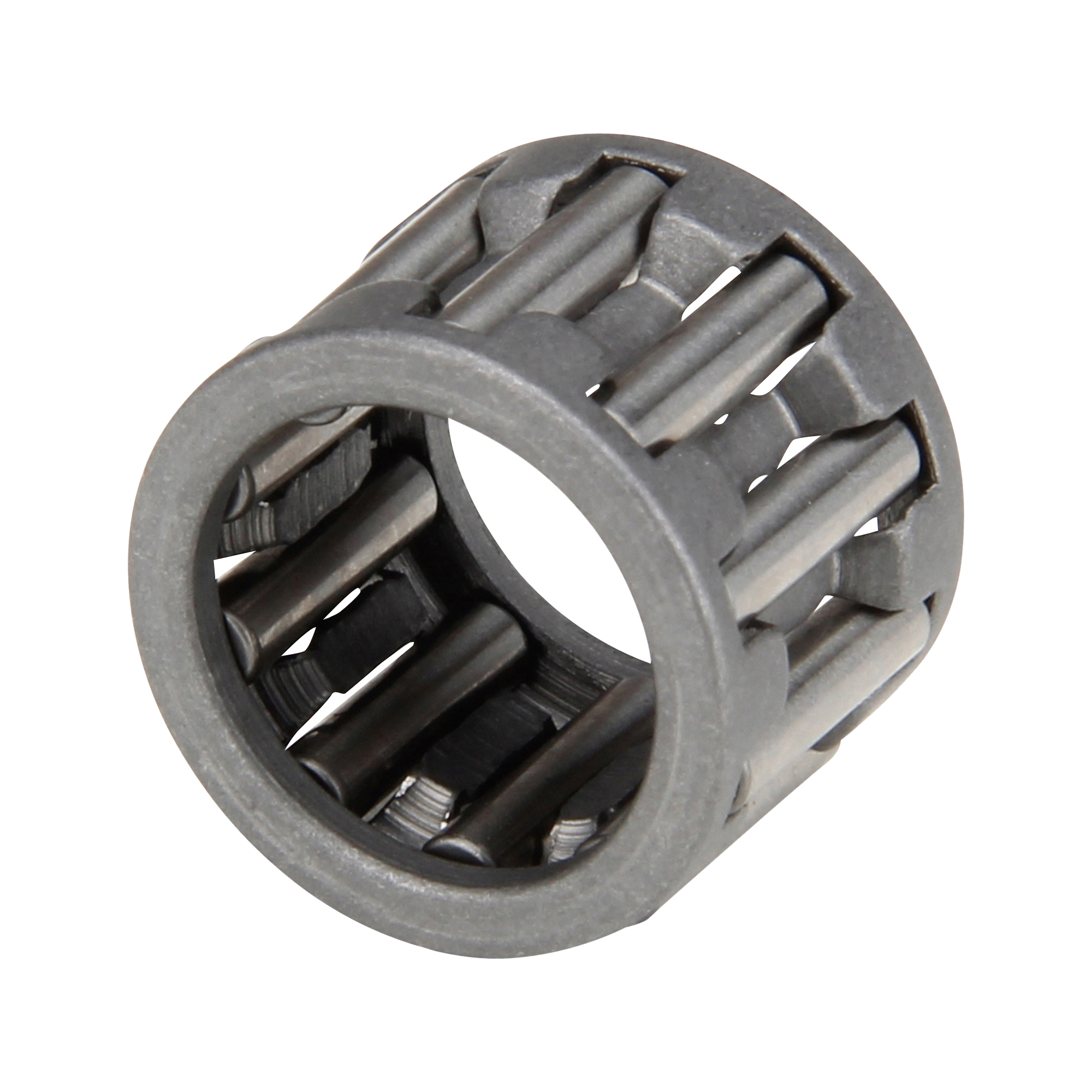

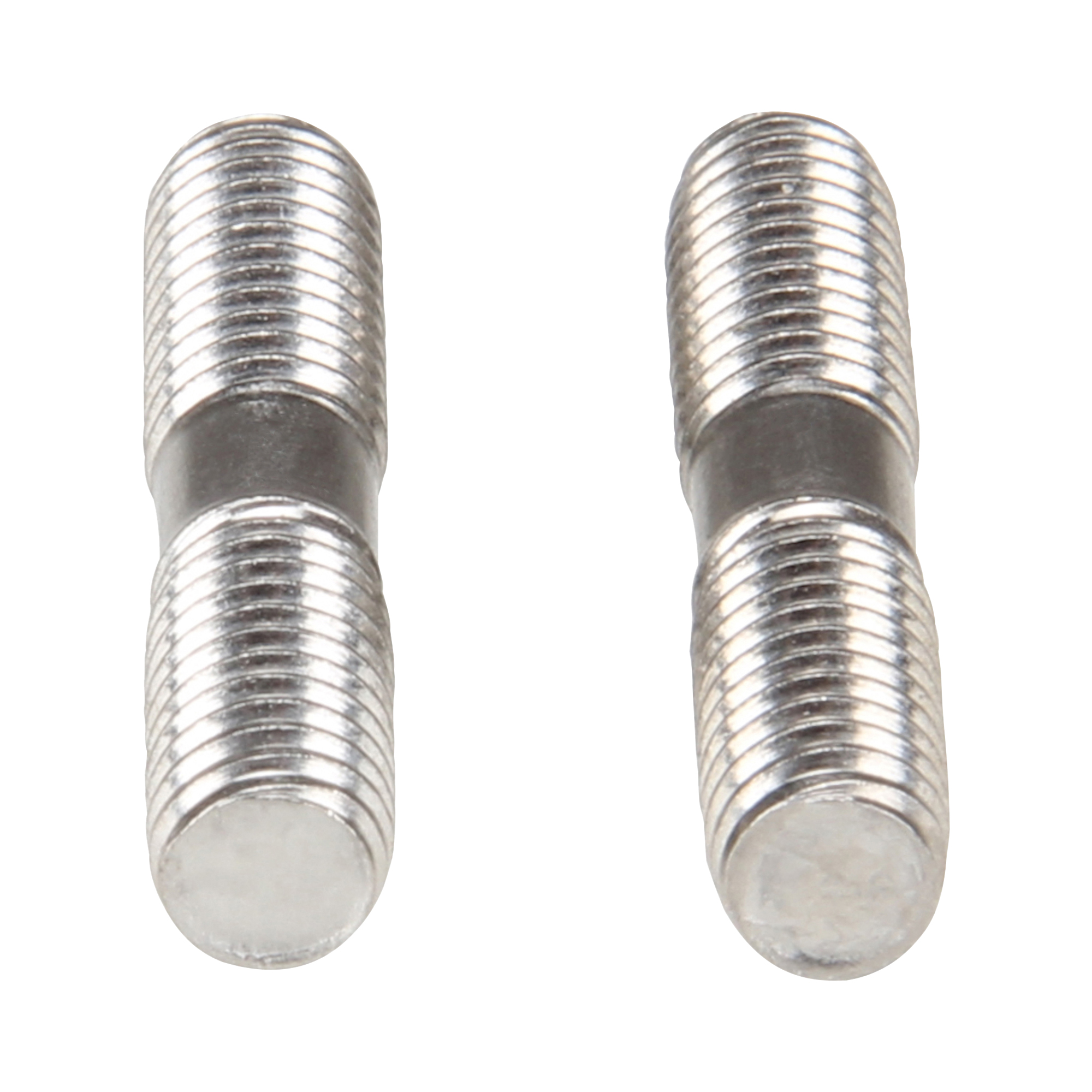

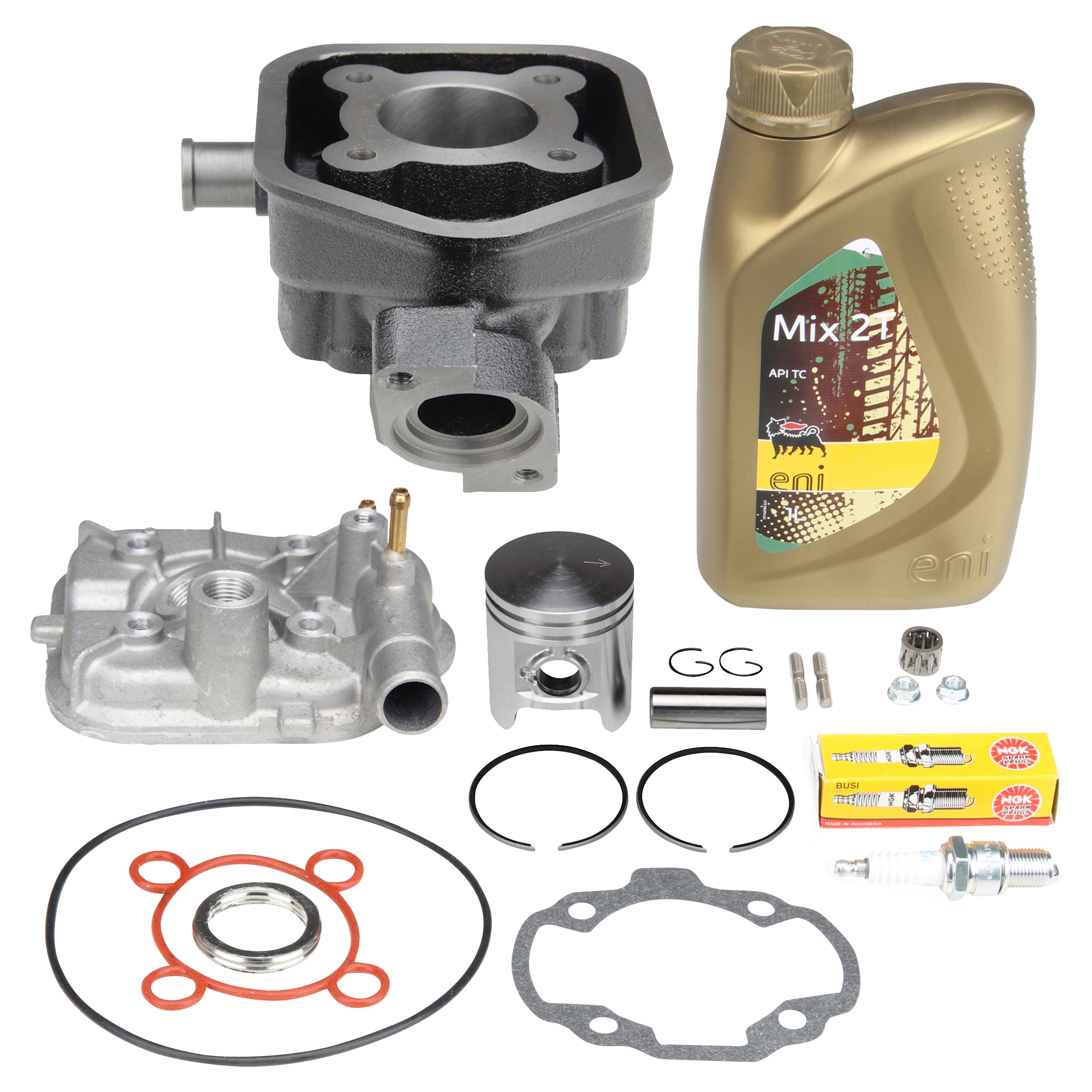

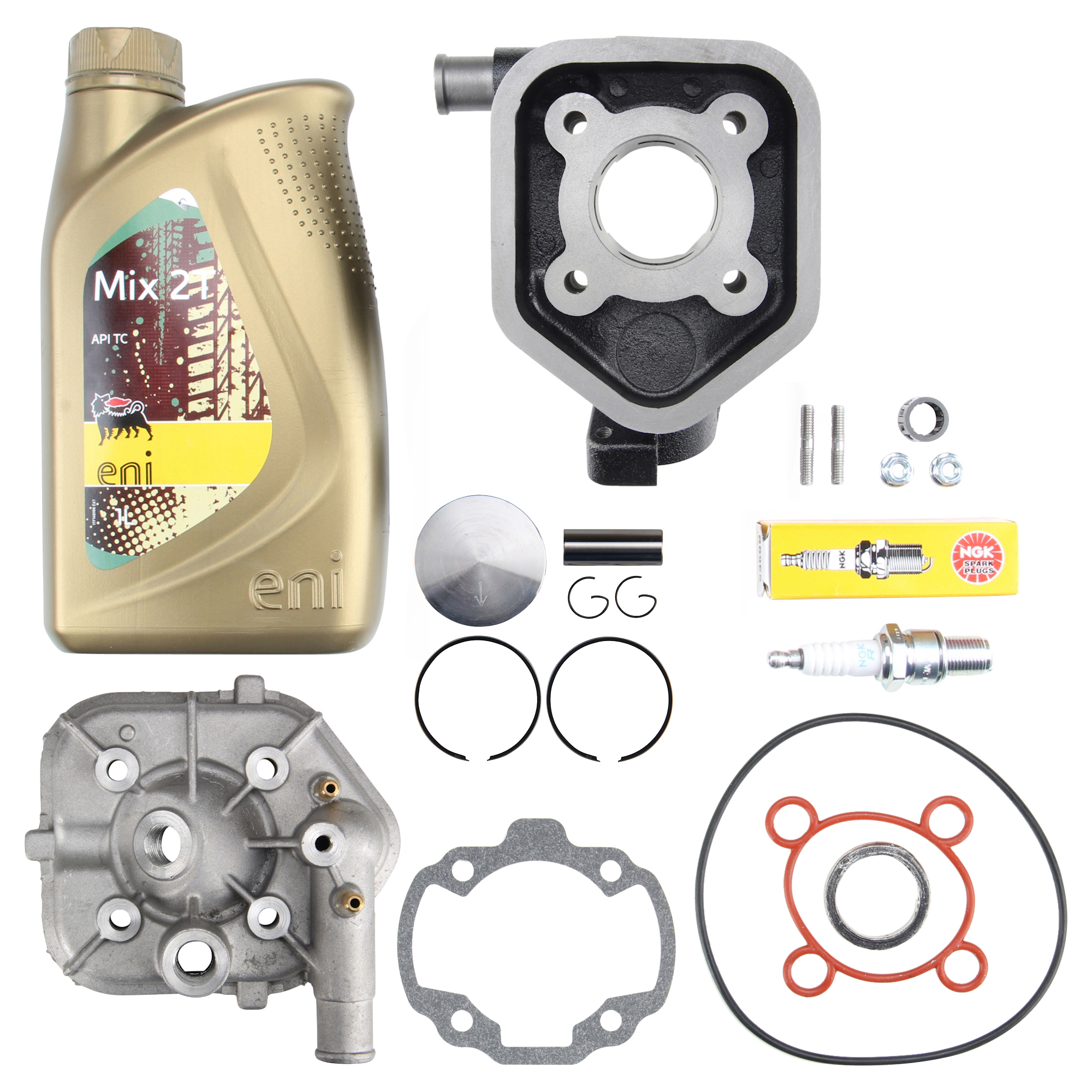

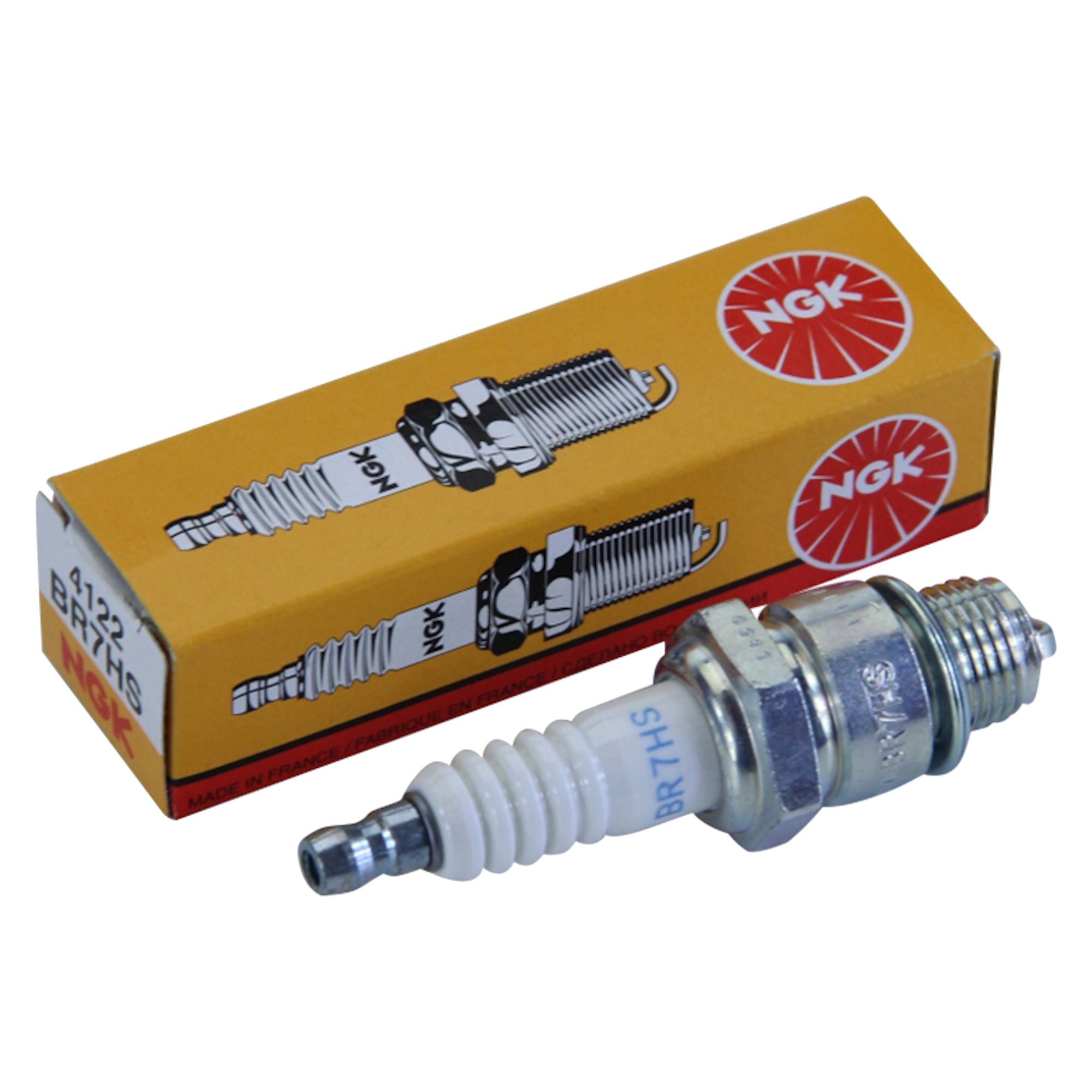

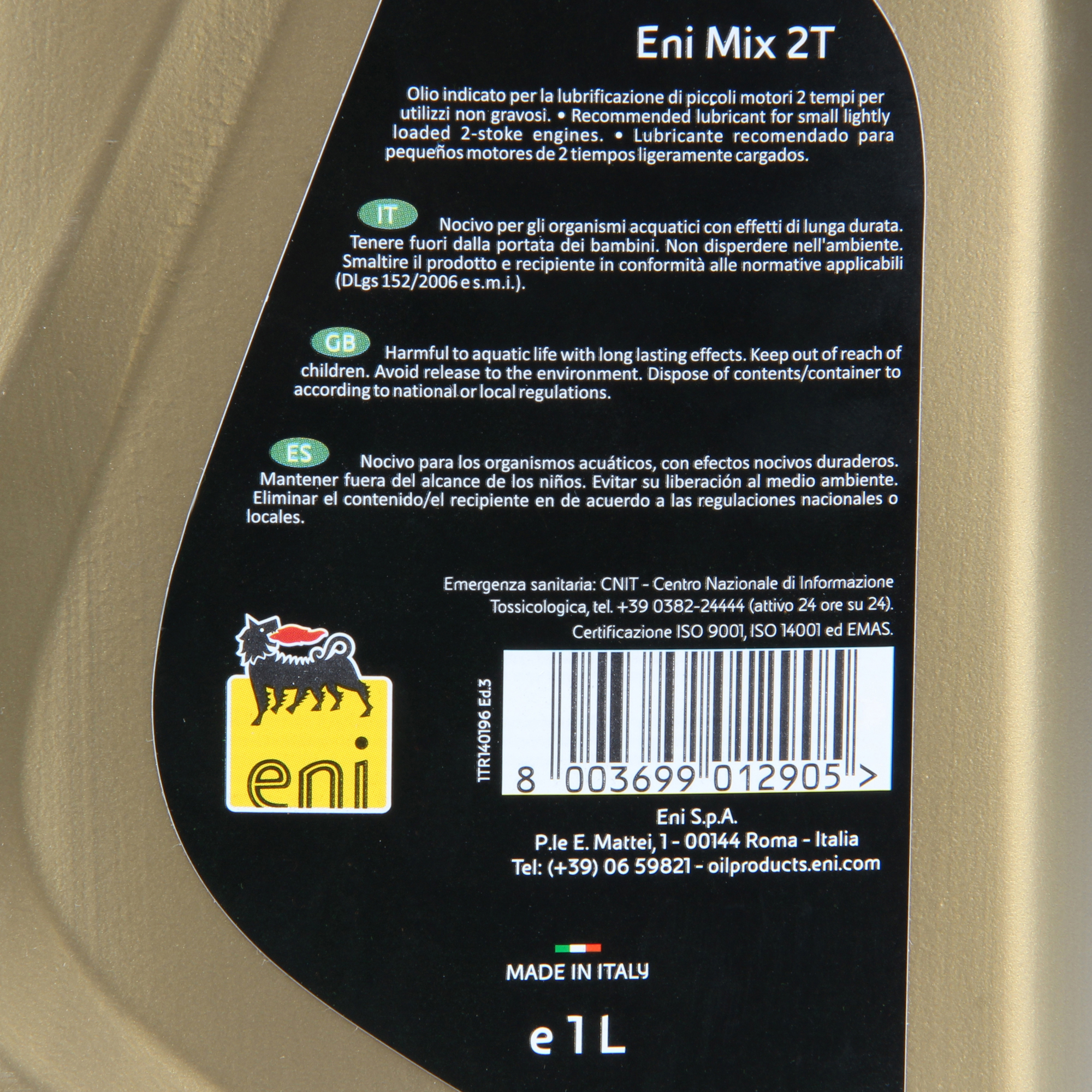

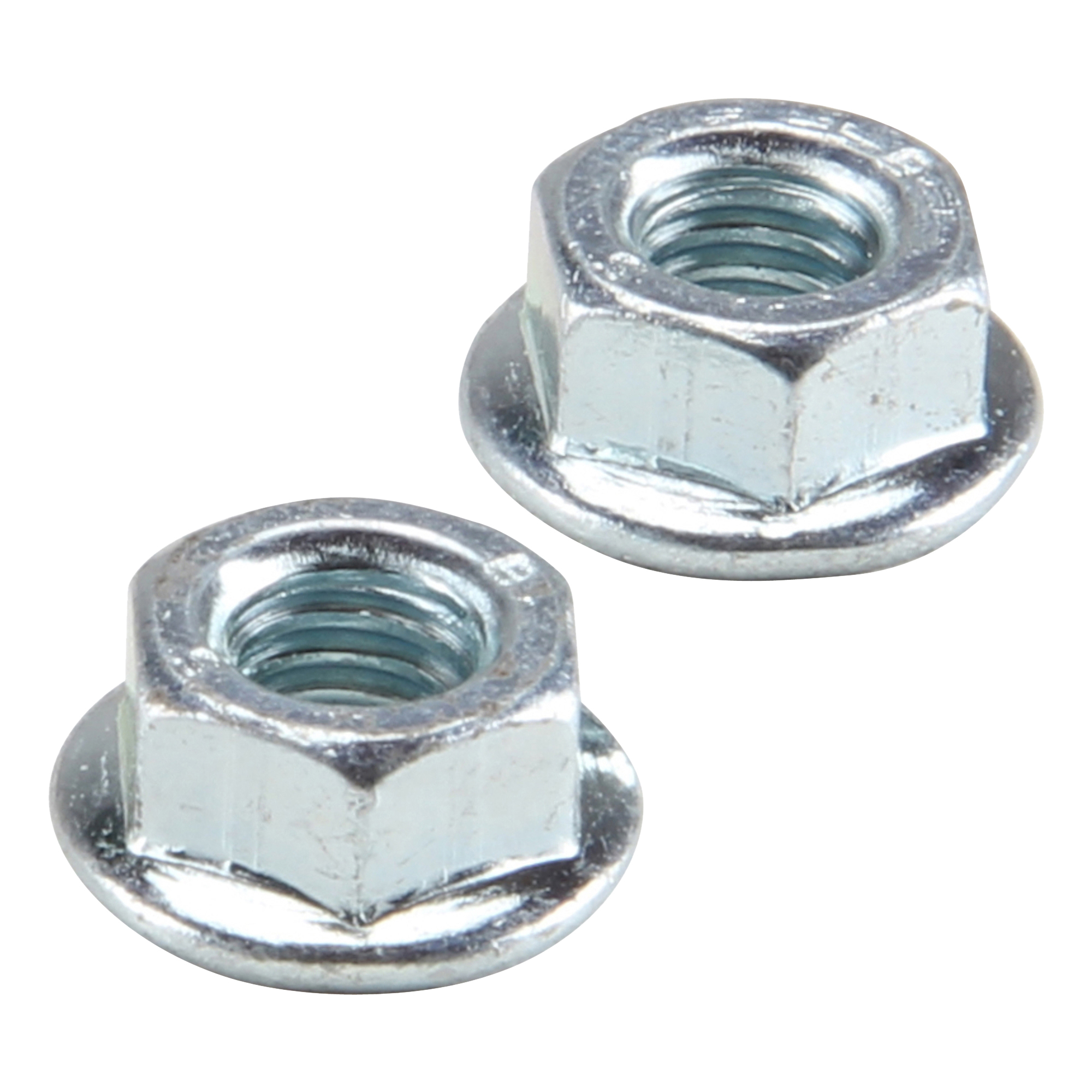

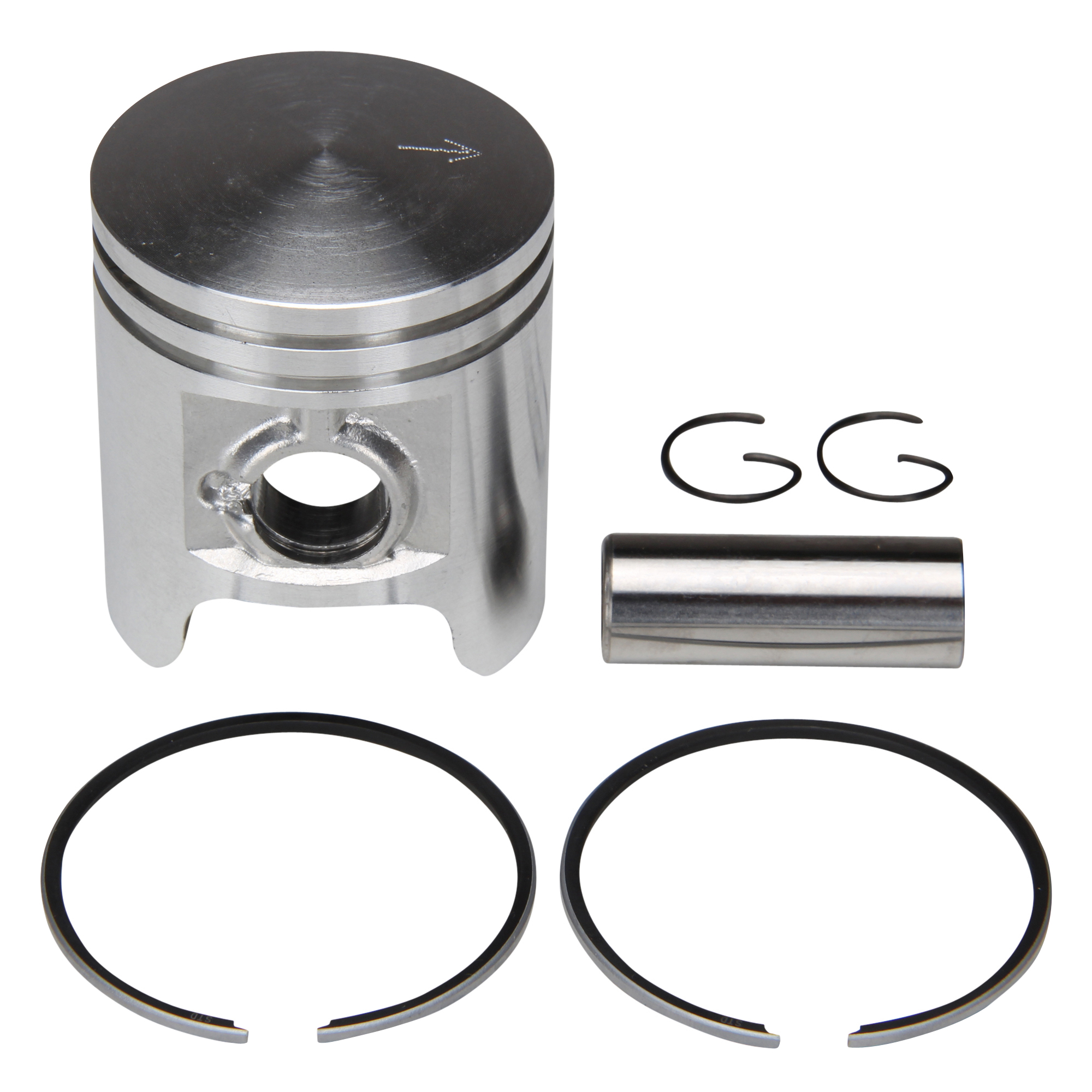

| Scope of delivery: | Cylinder head, Cylinder, Gasket set, Kolben Set, 2x Stehbolzen M6x26, 2x Krümmermutter M6, Öl Agip Mix 2T, Zündkerze NGK BR7HS, Nadellager 12x16x16 |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 48 x 48 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 7 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 105827 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder set Cylinder head Needle bearing Spark plug Stud bolt Oil |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Standard |
| suitable for: | Peugeot LC upright |
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Cylinder kit 80cc including cylinder head + valves for China scooters, Baotian, Rex, MKS, Zongshen
Citomerx Cylinder Kit 70ccm 47mm for Peugeot Speedfight 1 & 2 LC upright – incl. Cylinder Head

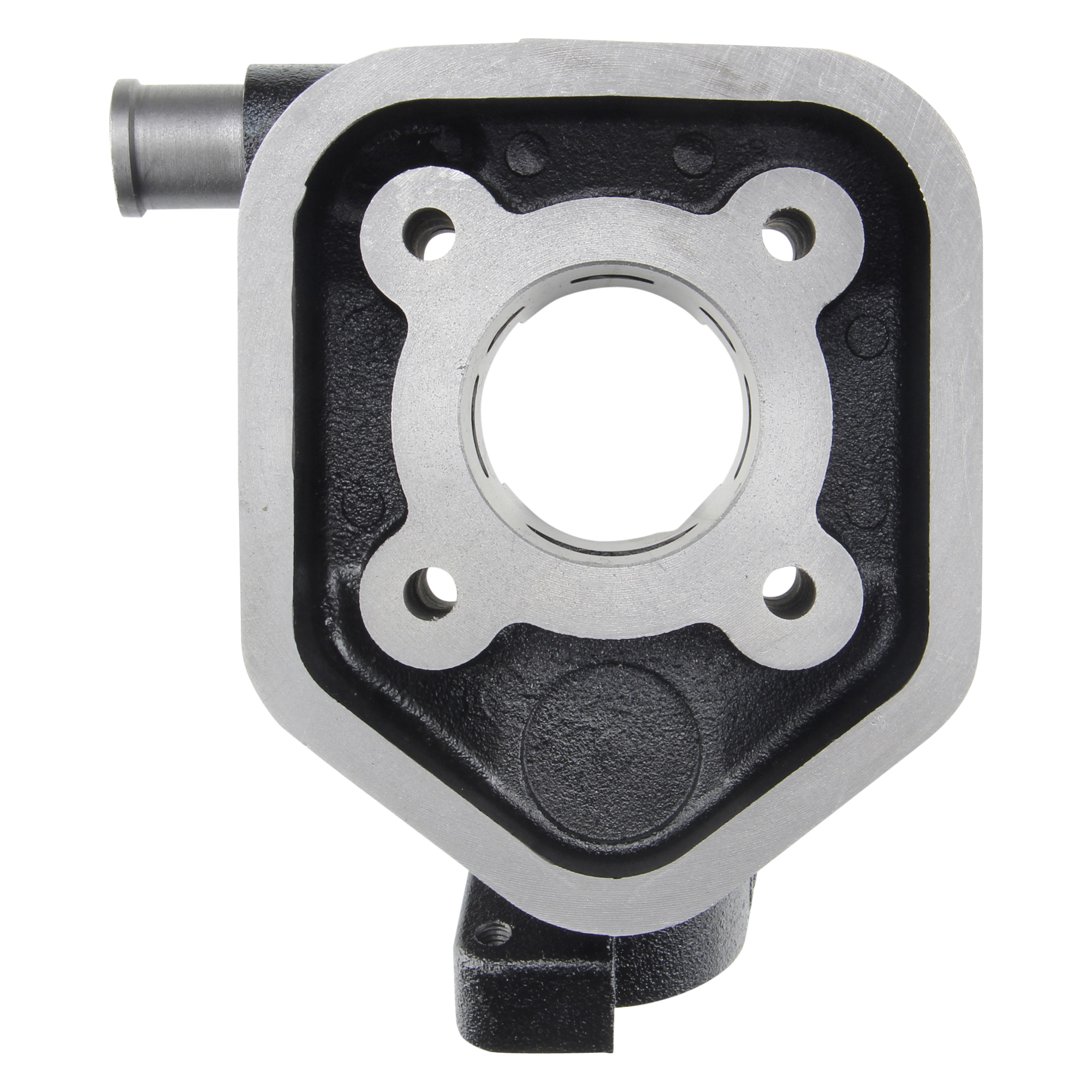

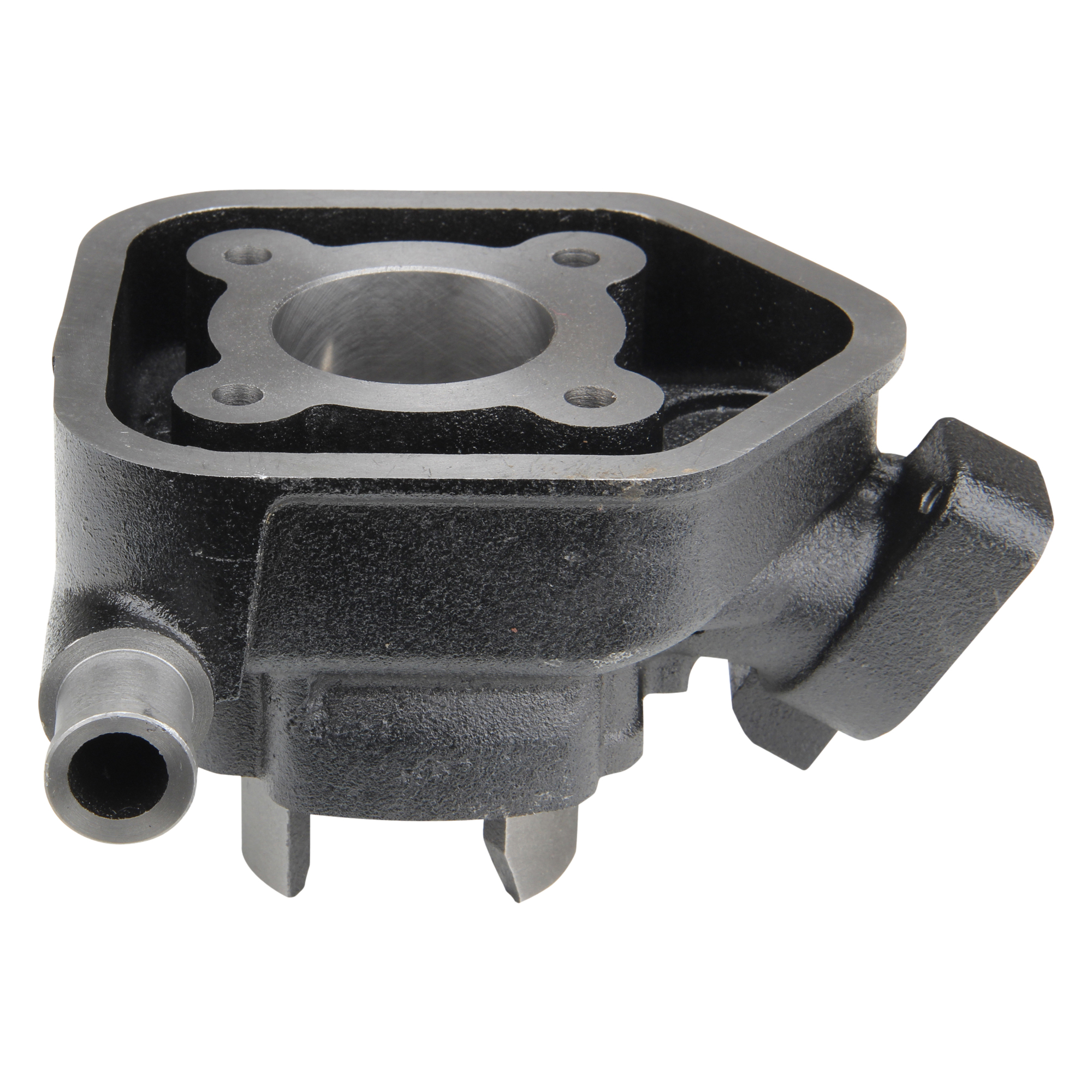

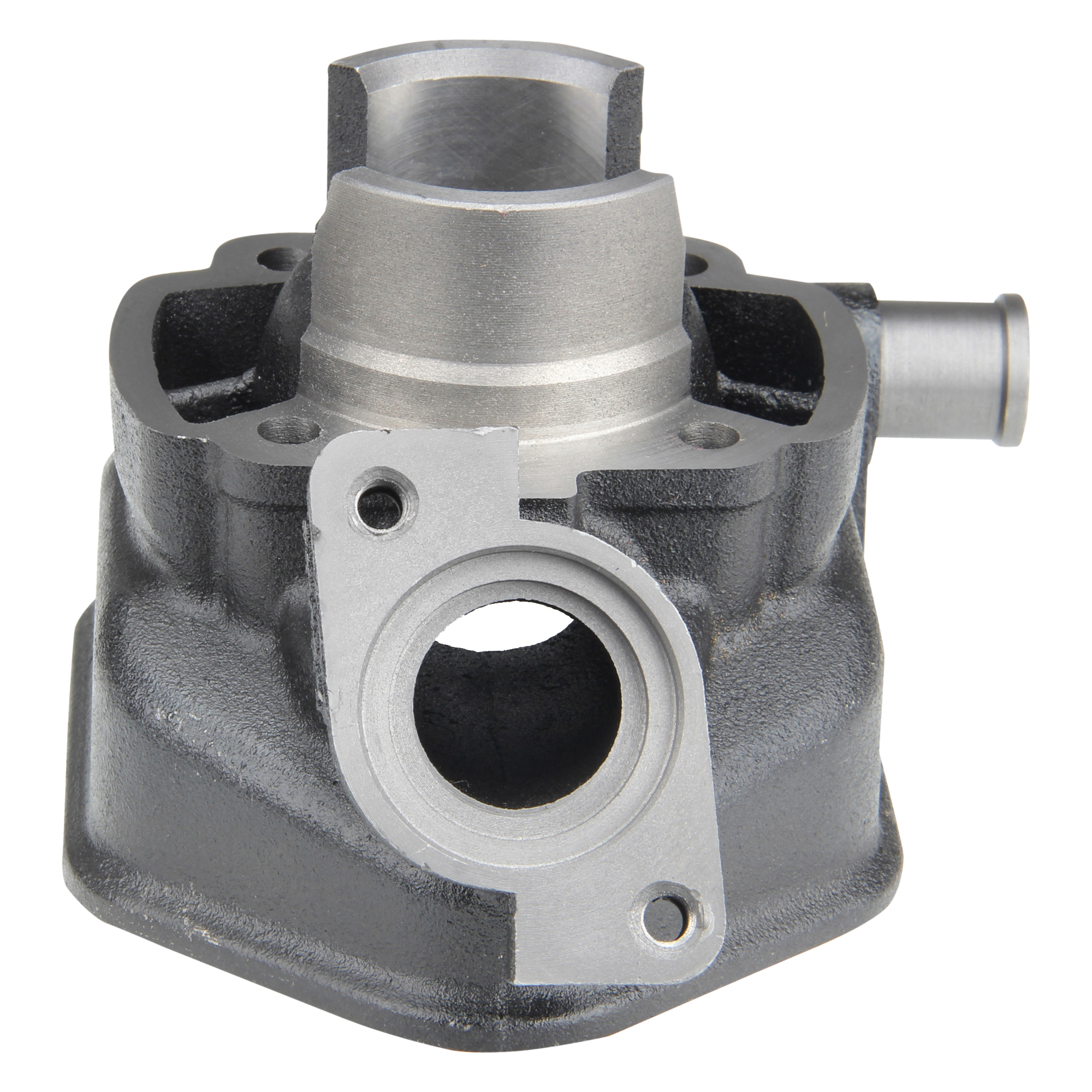

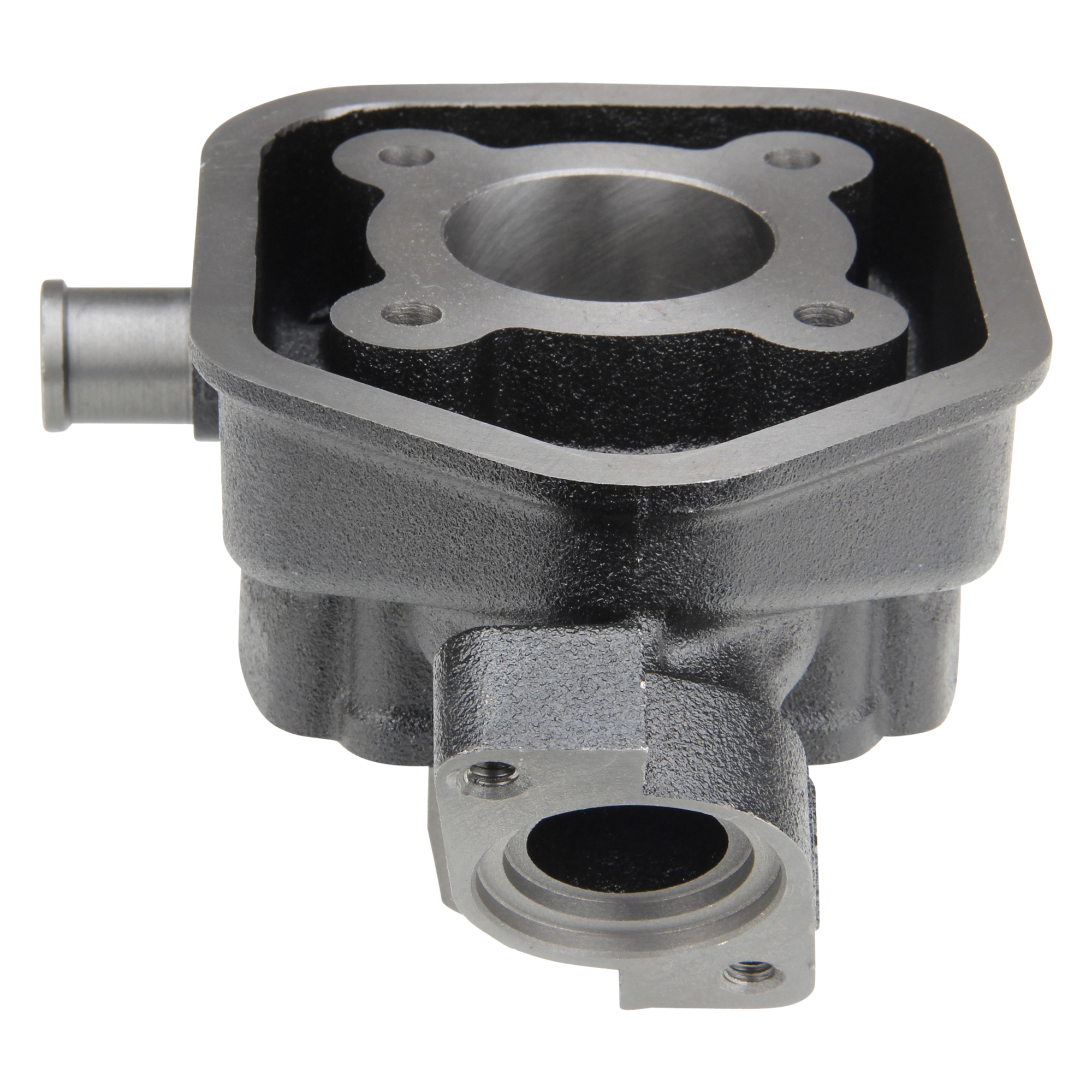

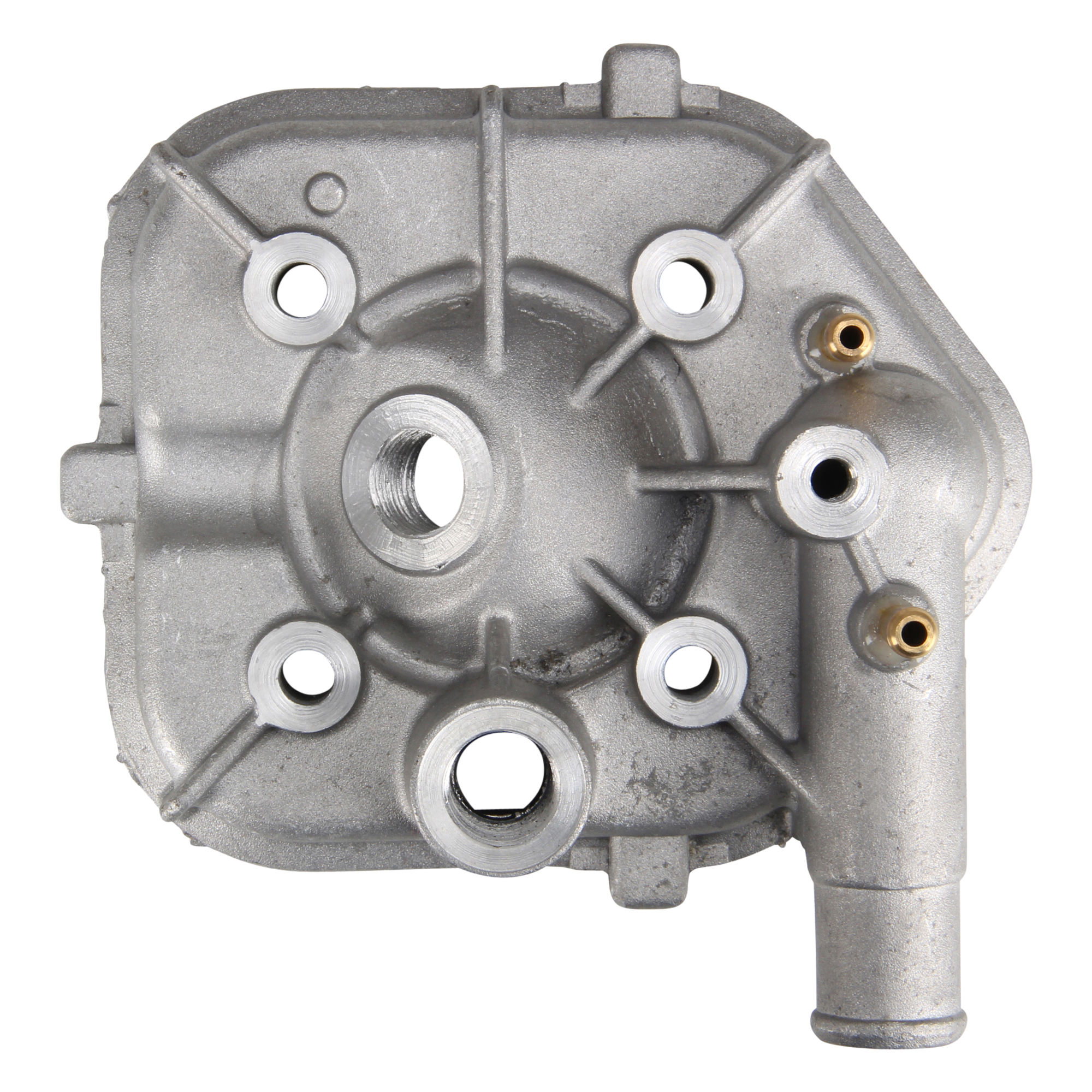

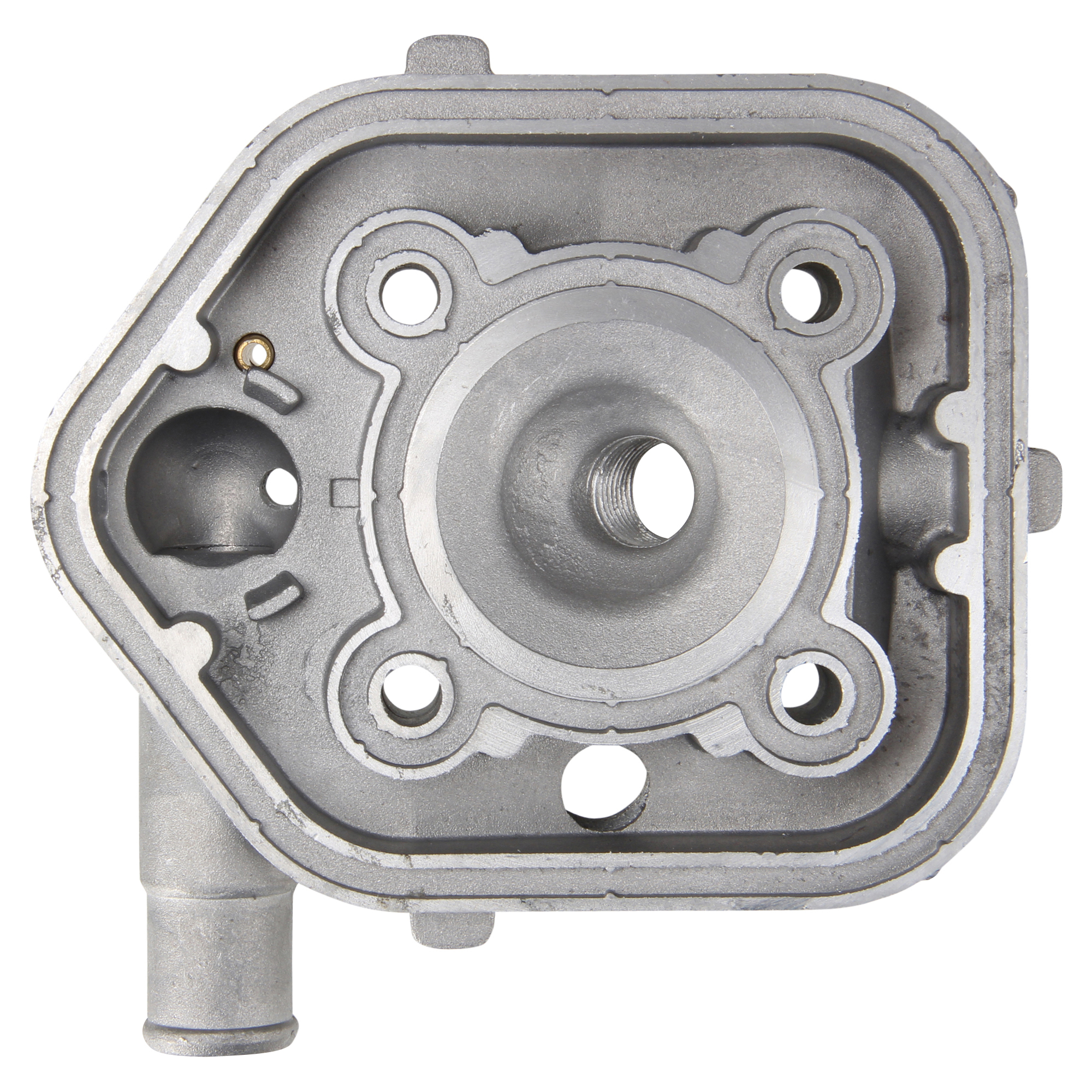

The Cylinder Kit + Head 50cc 40mm LARGE for Peugeot LC upright Speedfight 1 2 from Citomerx is the ideal choice for those looking for a high-quality and powerful replacement for their original cylinder. This complete kit includes a durable cast iron cylinder with a 50cc displacement and a 40mm bore, including the matching cylinder head. Thanks to precise manufacturing, this kit ensures optimal cooling and performance for your engine.
Whether as a replacement for a defective cylinder or for a major engine overhaul – with this cylinder kit, you will get your Peugeot Speedfight 1 or 2 with a water-cooled, upright engine back in top shape. The high fitting accuracy makes installation easy and ensures a long service life.
Technical Specifications:
-
Displacement: 50cc
-
Bore: 40mm
-
Material: Cast iron
-
Suitable for: Peugeot Speedfight 1 & 2 (LC, upright)
-

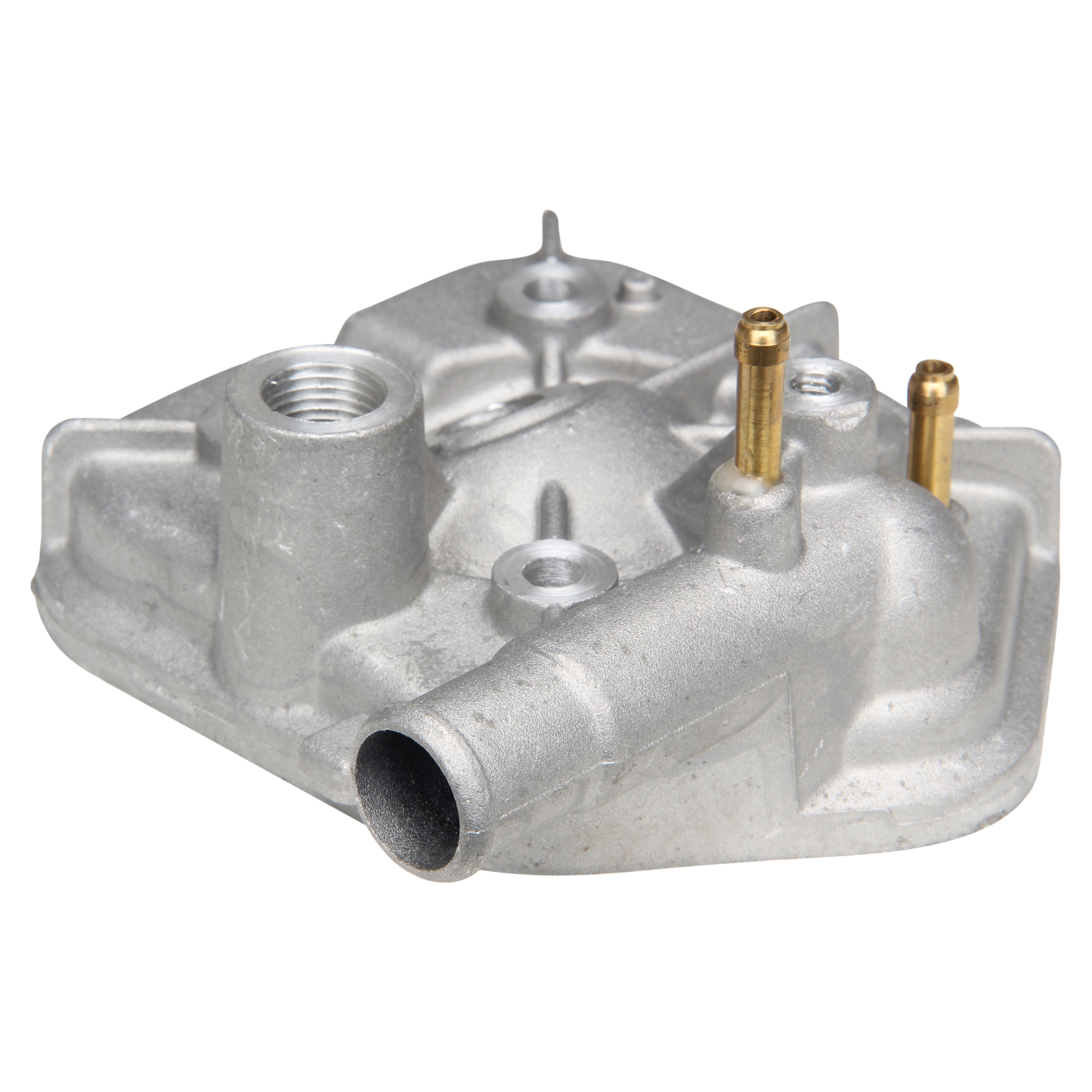

Includes: Cylinder head
-
Manufacturer: Citomerx
-
Part number: 105827
