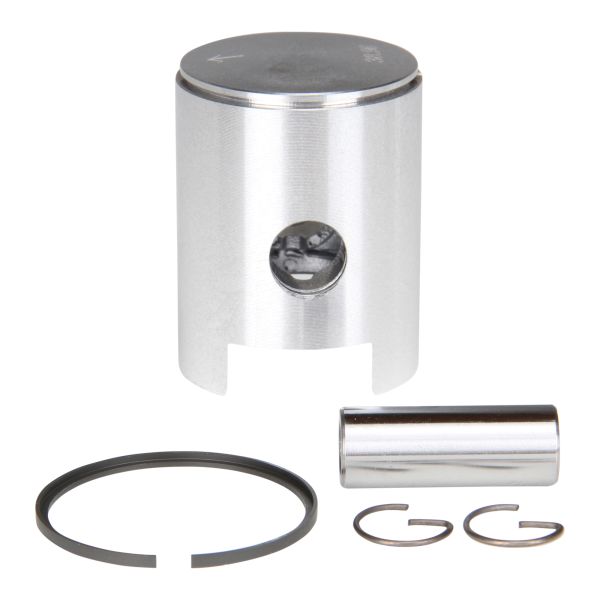

Piston 39mm 50cc Tol. B/C (38.96mm) for Zündapp C KS RS 50 Type 441 515 517 530 561 - Citomerx
- Manufacturer: Citomerx
- Item no: 110555
- Manufacturer no.: 110555
- EAN: 4060861245619
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 26 mm |
| Dimension F (piston skirt width inlet side): | 33 mm |
| Dimension I (piston skirt length outlet side): | 48 mm |
| Piston ring dimension: | 39 x 2.0 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | L-ring |
| Vintage part: | Yes |
| Cylinder bores: | 39 mm |
| Dimension C (piston height): | 50 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 51.5 mm |
| Dimension G (piston skirt length inlet side): | 48 mm |
| OE/OEM reference number(s): | 284-02.706, 284-02.775, 284-02.747, 284-02.701, 284-02.713 |
| Dimension A (piston diameter): | 38.96 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 1.5 mm |
| Dimension H (piston skirt width outlet side): | 30 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length: | 31.5 mm |
| Piston ring width: | 1.75 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Tolerance size: | BC (38.96mm) |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 39 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 110555 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Seatpost Saddle Tube Saddle Pipe chrome 22/30mm 25cm universal for Puch Maxi | Citomerx
Piston ring 39x2.0mm form B L-ring for Zündapp C KS RS 50 type 441 515 517 530 561
Oil filler plug filler plug red for Zündapp Combinette MC ZD ZR CS Hai CX ZA ZX ZL ZS KS GTS R RS 50 125 175
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Get the high-quality piston from Citomerx, specially designed for Zündapp C KS RS 50 types 441, 515, 517, 530, and 561. With a diameter of 39mm and a tolerance of B/C (38.96mm), this piston offers the highest precision and performance for your motorcycle or moped. Whether you need a repair or replacement, this piston is the perfect choice.
Product Advantages:
- Perfect fit for Zündapp models C KS RS 50 type 441, 515, 517, 530, 561
- Precise tolerance of B/C (38.96mm)
- High-quality and durable material
- Improves engine performance
FAQ:
Q: Is this piston suitable for my Zündapp model?
A: Yes, this piston is compatible with Zündapp models C KS RS 50 type 441, 515, 517, 530, and 561.
Q: What are the advantages of the Citomerx piston?
A: The piston offers a precise fit, high quality, and durable material, which improves the engine performance of your vehicle.
Optional usage tips:
To ensure optimal performance, we recommend checking the piston regularly and replacing it if necessary. Make sure the correct piston size and tolerance are maintained.
Order now and improve the performance of your Zündapp C KS RS 50! Experience the quality and reliability of Citomerx products.
Scope of delivery:
✅ Piston
✅ Piston rings
✅ Piston pin
✅ Circlips
ZS 2Radteile GmbH
Unterbibracherstr. 3
95519 Vorbach
Web page https://www.citomerx.de
Email: info@zweiradteile.net
| Product type | Piston set |
|---|---|
| Dimension B (compression height) | 26 mm |
| Dimension F (piston skirt width inlet side) | 33 mm |
| Dimension I (piston skirt length outlet side) | 48 mm |
| Piston ring dimension | 39 x 2.0 mm |
| Tuning & Styling Part | No |
| Piston ring profile | L-ring |
| Vintage part | Yes |
| Cylinder bores | 39 mm |
| Dimension C (piston height) | 50 mm |
| Dimension J (max. needle bearing width) | 15.5 mm |
| Dimension C + D (total height) | 51.5 mm |
| Dimension G (piston skirt length inlet side) | 48 mm |
| OE/OEM reference number(s) | 284-02.706, 284-02.775, 284-02.747, 284-02.701, 284-02.713 |
| Dimension A (piston diameter) | 38.96 mm |
| Bolt diameter | 12 mm |
| Dimension D (curvature) | 1.5 mm |
| Dimension H (piston skirt width outlet side) | 30 mm |
| Scope of delivery | Piston, Piston pin, Piston clips, Piston ring |
| Bolt length | 31.5 mm |
|---|---|
| Piston ring width | 1.75 mm |
| Dimension E (piston pin diameter) | 12 mm |
| Tolerance size | BC (38.96mm) |
| Piston ring shape | B (groove for center locking pin) |
| Color | Silver |
| Piston diameter | 39 mm |
| Engine type | 2-stroke |
| Scope of delivery | 1x piston set |
| Manufacturer number | 110555 |
| Country and region of manufacture | China |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Units quantity | 1 |
| Description of the package content | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty | 2 years |
| Material | Aluminum alloy |
| suitable for | 50 cc |
