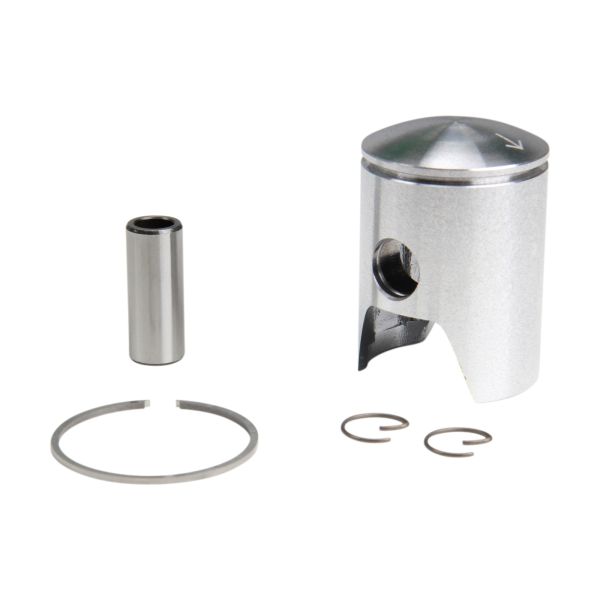

Piston 38mm 50cc for Puch Maxi S N E50 Motor - Citomerx
- Manufacturer: Citomerx
- Item no: 110556
- Manufacturer no.: 110556
- EAN: 4060861245626
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 22 mm |
| Dimension F (piston skirt width inlet side): | 26 mm |
| Dimension I (piston skirt length outlet side): | 45.5 mm |
| Piston ring dimension: | 38 x 1.5 mm |
| Feature: | für Nikasil-beschichtete Zylinder |
| Tuning & Styling Part: | No |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 38 mm |
| Dimension C (piston height): | 49 mm |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Dimension C + D (total height): | 54 mm |
| Dimension G (piston skirt length inlet side): | 45.5 mm |
| Dimension A (piston diameter): | 38 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 5 mm |
| Dimension H (piston skirt width outlet side): | 26 mm |
| Scope of delivery: | Piston, Piston pin, Piston clips |
| Bolt length: | 30 mm |
| Piston ring width: | 1.65 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 110556 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc Puch E50 engine |
Prices plus VAT plus shipping costs
Available immediately! Estimated delivery …
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
The Citomerx piston with a diameter of 38mm is the ideal solution for the Puch Maxi S N E50 motor. This piston is precisely manufactured and offers excellent performance and durability. It is perfect for tuning and repair work and ensures that your motor runs like new again.
High-quality replacement piston for maximum performance
The piston from Citomerx is made of high-strength aluminum and is specially developed for the Puch Maxi S N E50 motor. It guarantees optimal fit and long lifespan. Thanks to precise manufacturing and high material quality, this piston is particularly robust and resilient.
Product advantages
- Precisely manufactured piston for Puch Maxi S N E50 motor
- Diameter: 38mm
- High-quality aluminum for maximum durability
- Optimal fit
- Ideal for tuning and repair work
FAQ
Does the piston fit my Puch Maxi S N E50 motor?
Yes, this piston is specially developed for the Puch Maxi S N E50 motor and guarantees a perfect fit.
Is the piston easy to install?
Yes, thanks to the precise fit and high-quality manufacturing, the installation of the piston is easy and straightforward.
Optional tips for use
To ensure the optimal performance of your motor, we recommend regularly checking the piston and replacing it if necessary. During installation, make sure all parts are clean and correctly assembled.
Order now and maximize the performance of your Puch Maxi S N E50 motor! ✅ Benefit from the high quality and reliability of the Citomerx piston. ✅
