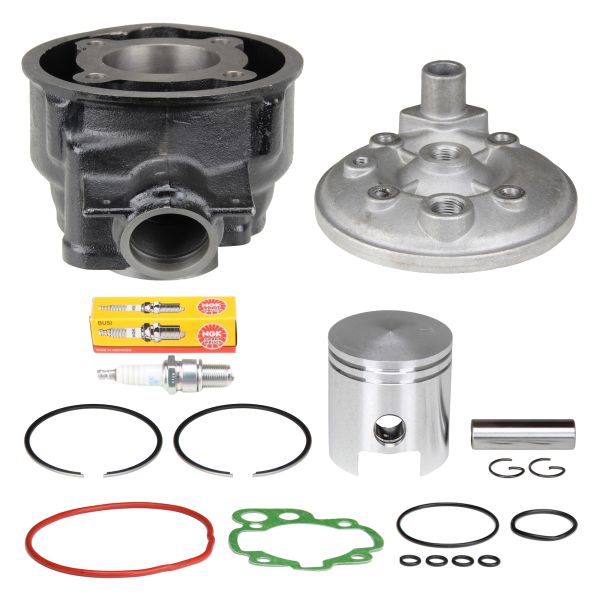

Cylinder Set + Head 70ccm 47mm SMALL for Minarelli LC AM3 AM4 AM5 AM6 / Aprilia Yamaha Malaguti Peugeot Rieju MBK
- Manufacturer: Citomerx
- Item no: 106049
- Manufacturer no.: 106049
- EAN: 4060861224317
Item data
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 120 x 115 x 47 mm |
| Piston pin diameter: | 12 mm |
| Displacement: | 70 ccm |
| Can the original cylinder head be used?: | Nein |
| Cylinder head stud bolt spacing: | 52 x 52 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Cylinder head stud diameter: | 8 mm |
| Surface finish: | Matt |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861224317 |
| Diffuser internal dimension: | 28 mm |
| Cylinder dimensions (LxWxH): | 140 x 110 x 85 mm |
| Scope of delivery: | Cylinder head, Cylinder, Gasket set, Kolben Set, Zündkerze NGK BR8ES |
| Cylinder stud distance: | 52 x 52 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Steck |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 106049 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder set Cylinder head Spark plug |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Tuning |
| suitable for: | Minarelli LC AM3 AM4 AM5 AM6 |
Oil Seal Set 8-piece for Minarelli AM6 / Aprilia Yamaha Malaguti Peugeot Rieju MBK Generic
Water pump repair kit for Minarelli LC engines, MBK Nitro, Yamaha Aerox, Aprilia SR50
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder kit 80cc including cylinder head + valves for China scooters, Baotian, Rex, MKS, Zongshen
Cylinder kit 4-stroke 80cc including head & spark plug for Baotian and Jinlun
Starter pinion starter gear + needle bearing for Minarelli Yamaha Aerox MBK Nitro
Motorcycle Helmet Full-Face CMX ARES silver matte size M incl. tinted spare visor
2x Wagner Two-Stroke Oil Economic 2T Fully Synthetic 1L – High-Performance Oil for Two-Stroke Engines
2x Tires Whitewall Kenda K252 2.25-16 (2 1/4 x 16) 31L TT + Tube + Rim Tape
Cylinder Set 70cc 47mm LARGE for Minarelli LC AM3 AM4 AM5 AM6 / Aprilia Yamaha Malaguti Rieju MBK
Plain Bearing Needle Bearing Starter Freewheel for Minarelli Yamaha Aerox BWs MBK Nitro Stunt
Cylinder Kit 220 cc Ø 69 mm 18 mm Piston Pin – Original Piaggio for APE TM P703 / P703V / P703FL2
Brake lever fitting left for Piaggio Zip Sfera NRG TPH Typhoon Vespa LX ET2
Shock absorber strut 1C003545R5 rear for Piaggio MP3 400 500 / Gilera Fuoco 500
Rear shock absorber strut set 370mm black for BMW C1 125 200 ABS (2000-2004)
Chain set 3-piece silver 11/36 teeth for Hercules Prima 2 3 4 5 5 M 4 5 HR2 P 1 3 MX1 Optima
Ignition electronic clockwise 12V 35W for Puch Maxi, Hercules Prima GT G...
Side stand chrome/black 240mm for Kreidler Florett K54 LF LH LF-H LF-F RS...
Hercules Prima 2 3 4 5 s M Optima 6 x rubber for luggage rack buffers
Clutch lever left with ball silver for Yamaha FS1 DX TZ 125 250 RD 50 TZR 250
Brake pads Brenta 3034B organic rear for Suzuki AN 250 400 Burgman Sky Wave Type 2
Citomerx Motorcycle Lift Moto Cross Lift XL hydraulic with wheels – robust workshop solution for enduros & crossbikes
Cylinder kit 70cc incl. cylinder head LC water cooled for Minarelli engines, AM 2, 3, 4, 5, 6
Starter freewheel complete for AC & LC Minarelli engines, Aerox, Nitro, SR50, CPI
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
The 70ccm cylinder set with head from Citomerx is the perfect solution for those who want to give their two-wheeler more power and reliability. This high-quality set is specially designed for Minarelli LC AM3 AM4 AM5 AM6 as well as models from Aprilia, Yamaha, Malaguti, Peugeot, Rieju, and MBK. It offers a precise fit and effortlessly replaces the original part. The cylinder and head are made of robust materials and guarantee a long service life.
Product Advantages:
- More power and better performance
- High-quality workmanship and durable materials
- Precisely fitting for many models from Minarelli, Aprilia, Yamaha, Malaguti, Peugeot, Rieju, and MBK
FAQ:
Question: Is the cylinder set compatible with my model?
Answer: Yes, this set is suitable for Minarelli LC AM3 AM4 AM5 AM6 as well as many models from Aprilia, Yamaha, Malaguti, Peugeot, Rieju, and MBK.
Question: How much more power can I expect?
Answer: The 70ccm set offers a noticeable power increase compared to the original part.
Scope of delivery:
✔ Cylinder
✔ Cylinder head
Don't miss the opportunity to take your two-wheeler to the next level. Order the cylinder set from Citomerx now and experience the perfect combination of quality and performance!
