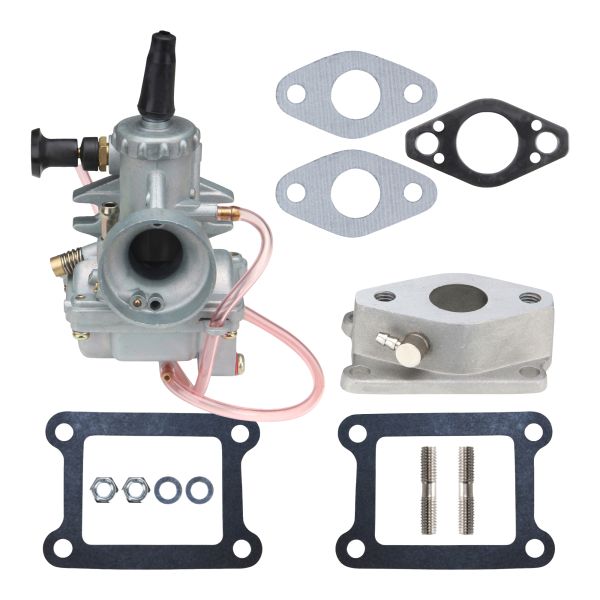

Carburetor VM20 20mm + Insulating Plate + Intake Manifold + Gaskets for Yamaha DT 50 R M MX (up to 2003) / RD 50 M MX DX - Citomerx
- Manufacturer: Citomerx
- Item no: 114511
- Manufacturer no.: 114511
- EAN: 4060861267420
Item data
| Country of origin: | China |
| Stud Thread: | M8 |
| Product type: | Vergaser-/Ansaugstutzen Set |
| Diaphragm Block Gasket Internal Dimensions: | 38 x 45 mm |
| Intake Manifold Width: | 47 mm |
| Diaphragm Block Gasket Length: | 74 mm |
| Diaphragm Block Gasket Thickness: | 0,5 mm |
| Diaphragm Block Gasket Width: | 50 mm |
| Intake Manifold Height: | 24,5 mm |
| Intake Manifold Gasket Inner Diameter: | 24 mm |
| Intake Manifold Gasket Width: | 68 mm |
| Intake Manifold Gasket Thickness: | 0,6 mm |
| Intake Manifold Gasket Height: | 38 mm |
| Intake Manifold Stud Spacing: | 50 mm |
| Intake Manifold Length: | 72 mm |
| Intake Manifold Internal Dimensions: | 31 x 32 mm |
| Insulation Panel Inner Diameter: | 24 mm |
| Insulation Panel Thickness: | 5,5 mm |
| Insulation Panel Hole Spacing: | 50 mm |
| Insulation Panel Width: | 68 mm |
| Insulation Panel Height: | 37 mm |
| Carburetor Connection on the Cylinder Side: | 21,5 mm |
| Carburetor Hole Spacing on the Cylinder Side: | 50 mm |
| Carburetor Connection on the Air Filter Side: | 43 mm |
| Hole spacing: | 35 x 58 mm |
| Carburetor passage: | 20 mm |
| Tuning & Styling Part: | No |
| Intake manifold gasket Hole spacing: | 50 mm |
| Vintage part: | No |
| Mounting method: | Screw-on |
| Carburetor type: | Mikuni VM20 |
| Universal compatibility: | No |
| GTIN: | 4060861267420 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 24 mm |
| Features: | Ansaugstutzen mit 5 mm Unterdruckanschluss |
| Scope of delivery: | 1x Vergaser-/Ansaugstutzen Set |
| Manufacturer number: | 114511 |
| Installation position: | Engine compartment |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Mikuni carburetor |
Throttle cable black (with distributor/oil pump cable) for Yamaha DT 50 R M MX (1988-1995)
Arexons Motorsil D Silicone Sealant 300° C red 60g for Engine Gearbox
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Throttle cable black (with distributor/oil pump cable) for Yamaha DT 50 R M MX (1988-1995)
Discover the high-quality VM20 20mm carburetor from Citomerx, specially designed for Yamaha DT 50 R M MX models up to 2003 and RD 50 M MX DX. This replacement part set, consisting of a robust carburetor, insulating plate, intake manifold, and gaskets, offers you the perfect solution to optimize engine performance and ensure reliable fuel supply.
Product advantages:
- Durable and precisely manufactured carburetor
- Perfect fit for Yamaha DT 50 R M MX and RD 50 M MX DX
- Easy installation and high performance
FAQ:
Question: Is the VM20 20mm carburetor compatible with other Yamaha models?
Answer: The carburetor is specially designed for Yamaha DT 50 R M MX models up to 2003 and RD 50 M MX DX. For other models, we recommend checking the specific requirements.
Question: How does this carburetor improve the performance of my motorcycle?
Answer: The VM20 20mm carburetor ensures an optimal fuel-air mixture, which increases engine performance and efficiency.
Replace your old carburetor and experience a noticeable performance boost. This replacement part set meets OE standards and is made of high-quality materials to ensure long-lasting durability. With this carburetor set, you are safer and more powerful on the road. Buy now and get your motorcycle back on the road!
Scope of delivery:
✔ VM20 20mm carburetor
✔ Insulating plate
✔ Intake manifold
✔ Gaskets
