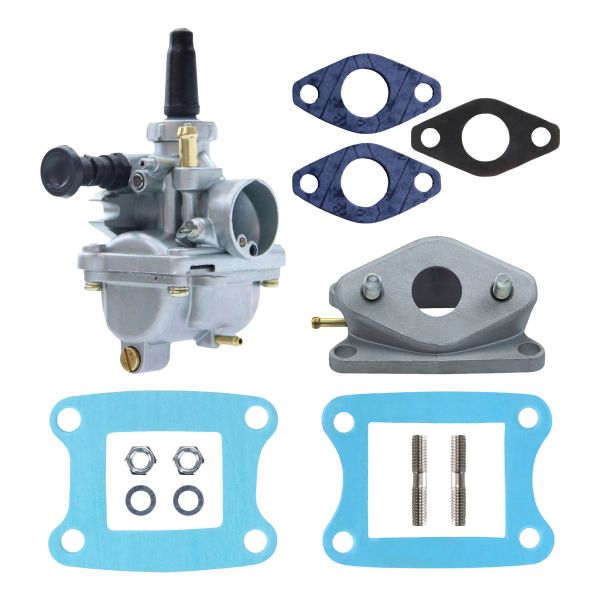

Carburetor VM16 16mm + Insulating Plate + Intake Manifold + Gaskets for Honda MT MB MTX MBX 50 - Citomerx
- Manufacturer: Citomerx
- Item no: 114532
- Manufacturer no.: 114532
- EAN: 4060861267635
Item data
| Country of origin: | China |
| Stud Thread: | M6 |
| Product type: | Vergaser-/Ansaugstutzen Set |
| Carburetor Connection on the Cylinder Side: | 17 mm |
| Insulation Panel Inner Diameter: | 18 mm |
| Intake Manifold Gasket Inner Diameter: | 18 mm |
| Insulation Panel Thickness: | 5 mm |
| Insulation Panel Hole Spacing: | 42 mm |
| Intake Manifold Gasket Width: | 56 mm |
| Insulation Panel Width: | 57 mm |
| Intake Manifold Gasket Thickness: | 0,5 mm |
| Insulation Panel Height: | 30 mm |
| Carburetor Hole Spacing on the Cylinder Side: | 40 mm |
| Carburetor Connection on the Air Filter Side: | 28 mm |
| Intake Manifold Gasket Height: | 30 mm |
| KLEIN Diaphragm Block Seal Length: | 76 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,6 mm |
| Intake Manifold Length: | 72 mm |
| GROß Thickness Membrane Block Gasket: | 0,5 mm |
| Large-Width Diaphragm Block Gasket: | 58 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 44 mm |
| Intake Manifold Width: | 52 mm |
| Intake Manifold Internal Dimensions: | 28 x 38 mm |
| Intake Manifold Height: | 36 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 32 x 38 mm |
| KLEIN Membrane Block Gasket, Wide: | 61 mm |
| Hole spacing: | 40 x 60 mm |
| Carburetor passage: | 16 mm |
| Tuning & Styling Part: | No |
| Intake manifold gasket Hole spacing: | 42 mm |
| Vintage part: | No |
| Mounting method: | Screw-on |
| Carburetor type: | Mikuni VM16 |
| Universal compatibility: | No |
| GTIN: | 4060861267635 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 16 mm |
| Features: | Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x Vergaser-/Ansaugstutzen Set |
| Manufacturer number: | 114532 |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Carburetor repair kit VM16 16mm gasket set Yamaha DT 50 DT50 M MX R, RD50 M MX
Carburetor VM16 16mm for Yamaha DT 50 R M MX (-2003) / RD 50 M MX DX - Citomerx
Gel Battery 12V 5Ah for 50ccm Scooter – YB4L-B, YTX4L-BS, YT4L-B – Citomerx
The high-quality VM16 16mm carburetor from Citomerx including insulating plate, intake manifold, and gaskets is the ideal replacement solution for your Honda MT, MB, MTX, and MBX 50 models. Perfectly tuned to the needs of your two-wheeler, this carburetor ensures an optimal fuel-air mixture, thereby improving the performance and efficiency of your vehicle. With its precise manufacturing and fit, it meets the highest quality standards and guarantees long-lasting use.
Product Advantages:
- High-quality materials for maximum durability
- Perfect fit for Honda MT, MB, MTX, MBX 50
- Optimized fuel-air mixture for better performance
- Easy installation
- Complete set including insulating plate and gaskets
FAQ:
Question: Is the VM16 16mm carburetor easy to install?
Answer: Yes, thanks to the precise fit and the complete set with insulating plate, intake manifold, and gaskets, the installation is straightforward and quick to carry out.
Question: For which models is this carburetor suitable?
Answer: This carburetor has been specifically developed for Honda MT, MB, MTX, and MBX 50 models.
To fully unleash the potential of your two-wheeler, choose the VM16 16mm carburetor from Citomerx now and experience a noticeable performance boost. Replace old or defective carburetors and benefit from improved performance and reliability. Order today and get your motorcycle back in action.
Scope of Delivery:
✔ Carburetor VM16 16mm
✔ Insulating plate
✔ Intake manifold
✔ Gaskets
