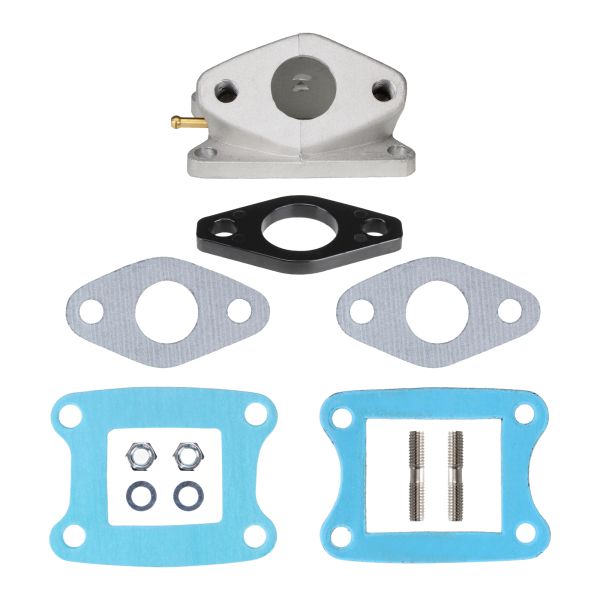

Intake Manifold 20mm + Insulating Plate + Gaskets for Honda MT MB MTX MBX 50
- Manufacturer: Citomerx
- Item no: 114539
- Manufacturer no.: 114539
- EAN: 4060861267697
Item data
| Product type: | Intake manifold set |
| Country of origin: | China |
| Stud Thread: | M8 |
| KLEIN Diaphragm Block Seal Length: | 76 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,6 mm |
| Intake Manifold Gasket Inner Diameter: | 24 mm |
| Intake Manifold Gasket Width: | 68 mm |
| Intake Manifold Gasket Thickness: | 0,6 mm |
| Intake Manifold Gasket Height: | 38 mm |
| Intake Manifold Length: | 72 mm |
| Insulation Panel Inner Diameter: | 24 mm |
| Insulation Panel Thickness: | 5,5 mm |
| Insulation Panel Hole Spacing: | 50 mm |
| Insulation Panel Width: | 68 mm |
| Insulation Panel Height: | 37 mm |
| GROß Thickness Membrane Block Gasket: | 0,5 mm |
| Large-Width Diaphragm Block Gasket: | 58 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 44 mm |
| Intake Manifold Width: | 52 mm |
| Intake Manifold Internal Dimensions: | 28 x 38 mm |
| Intake Manifold Height: | 36 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 32 x 38 mm |
| KLEIN Membrane Block Gasket, Wide: | 61 mm |
| Hole spacing: | 40 x 60 mm |
| Tuning & Styling Part: | No |
| Intake manifold gasket Hole spacing: | 50 mm |
| Vintage part: | No |
| Mounting method: | Screw-on |
| Universal compatibility: | No |
| GTIN: | 4060861267697 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 20 mm |
| Features: | Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x intake manifold set |
| Manufacturer number: | 114539 |
| Installation position: | Engine compartment |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Mikuni carburetor |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
The high-quality intake manifold 20mm including insulating plate and gaskets from Citomerx is the perfect solution for your Honda MT, MB, MTX, and MBX 50. This sturdy and durable intake manifold ensures optimal air supply and increases the performance of your vehicle. Made from high-quality materials, it meets OE standards and is a perfect fit for your model.
Product Advantages:
- Sturdy and durable materials
- Perfect fit for Honda MT, MB, MTX, and MBX 50
- Optimal air supply for increased performance
FAQ:
Question: Is the intake manifold easy to install?
Answer: Yes, the intake manifold is a perfect fit and can be easily mounted without any additional adjustments.
Question: Can this intake manifold improve the performance of my vehicle?
Answer: Yes, the optimal air supply can noticeably improve the performance of your vehicle.
Take advantage of this opportunity and replace your old intake manifold with this high-quality and perfectly fitting replacement part from Citomerx. Experience more performance and safe driving pleasure.
Scope of Delivery:
✔ Intake Manifold 20mm
✔ Insulating Plate
✔ Gaskets
