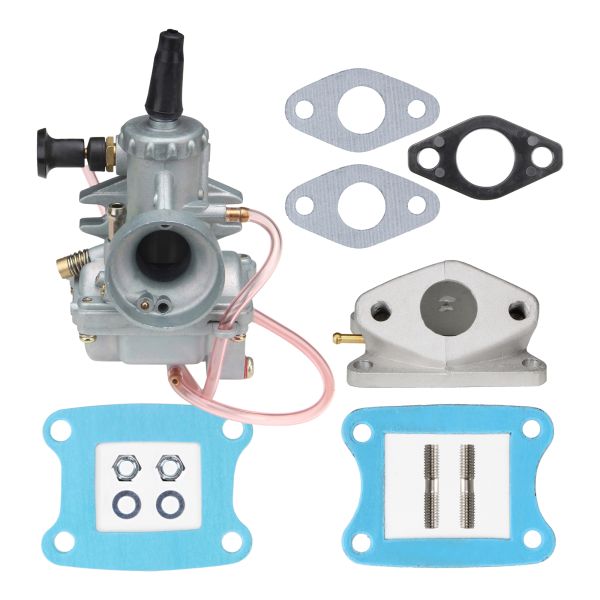

Carburetor VM20 20mm + Insulating Plate + Intake Manifold + Gaskets for Honda MT MB MTX MBX 50 by Citomerx
- Manufacturer: Citomerx
- Item no: 114542
- Manufacturer no.: 114542
- EAN: 4060861267727
Item data
| Country of origin: | China |
| Stud Thread: | M8 |
| Product type: | Vergaser-/Ansaugstutzen Set |
| KLEIN Diaphragm Block Seal Length: | 76 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,6 mm |
| Intake Manifold Gasket Inner Diameter: | 24 mm |
| Intake Manifold Gasket Width: | 68 mm |
| Intake Manifold Gasket Thickness: | 0,6 mm |
| Intake Manifold Gasket Height: | 38 mm |
| Intake Manifold Length: | 72 mm |
| Insulation Panel Inner Diameter: | 24 mm |
| Insulation Panel Thickness: | 5,5 mm |
| Insulation Panel Hole Spacing: | 50 mm |
| Insulation Panel Width: | 68 mm |
| Insulation Panel Height: | 37 mm |
| Carburetor Connection on the Cylinder Side: | 21,5 mm |
| Carburetor Hole Spacing on the Cylinder Side: | 50 mm |
| Carburetor Connection on the Air Filter Side: | 43 mm |
| GROß Thickness Membrane Block Gasket: | 0,5 mm |
| Large-Width Diaphragm Block Gasket: | 58 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 44 mm |
| Intake Manifold Width: | 52 mm |
| Intake Manifold Internal Dimensions: | 28 x 38 mm |
| Intake Manifold Height: | 36 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 32 x 38 mm |
| KLEIN Membrane Block Gasket, Wide: | 61 mm |
| Hole spacing: | 40 x 60 mm |
| Carburetor passage: | 20 mm |
| Intake manifold gasket Hole spacing: | 50 mm |
| Carburetor type: | Mikuni VM20 |
| GTIN: | 4060861267727 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 20 mm |
| Features: | Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x Vergaser-/Ansaugstutzen Set |
| Manufacturer number: | 114542 |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Mikuni carburetor |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Tuning Vergaser VM20 20mm (Typ Mikuni) für Simson S50 S51 KR51 Schwalbe SR50 - Citomerx
The Citomerx Carburetor VM20 20mm is the ideal solution for all Honda MT MB MTX MBX 50 riders who are looking for a high-quality replacement part that offers performance and reliability. This carburetor impresses with its precise craftsmanship and the use of top-notch materials that guarantee long-lasting durability. Thanks to the included insulating plate, intake manifold, and gaskets, a quick and easy replacement is possible, so your vehicle will be ready for use again in no time.
Product Advantages:
- Robust and durable materials
- Precise fit for Honda MT MB MTX MBX 50 models
- Complete set including insulating plate, intake manifold, and gaskets
FAQ:
Question: Is this carburetor compatible with all Honda MT MB MTX MBX 50 models?
Answer: Yes, the VM20 20mm carburetor by Citomerx is specially designed for these models and fits perfectly.
Question: What advantages does the insulating plate offer?
Answer: The insulating plate prevents heat transfer and ensures optimal performance of the carburetor.
Scope of delivery:
✔ Carburetor VM20 20mm
✔ Insulating plate
✔ Intake manifold
✔ Gaskets
