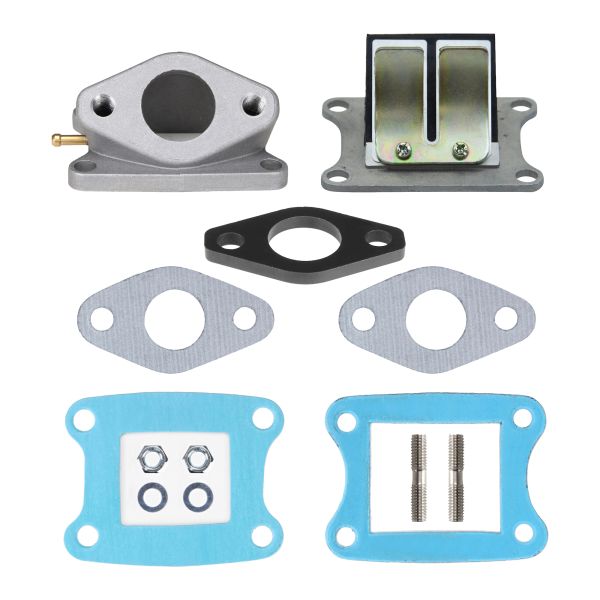

Intake Manifold 24mm + Insulating Plate + Reed Block + Gaskets for Honda MT MB MTX MBX 50 - Citomerx
- Manufacturer: Citomerx
- Item no: 114549
- Manufacturer no.: 114549
- EAN: 4060861267796
Item data
| Product type: | Intake manifold set |
| Country of origin: | China |
| Stud Thread: | M8 |
| Insulation Panel Thickness: | 5 mm |
| Diaphragm Block Width: | 52 mm |
| KLEIN Diaphragm Block Seal Length: | 76 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,6 mm |
| Intake Manifold Gasket Inner Diameter: | 24 mm |
| Intake Manifold Gasket Width: | 68 mm |
| Intake Manifold Gasket Thickness: | 0,6 mm |
| Intake Manifold Gasket Height: | 38 mm |
| Intake Manifold Length: | 72 mm |
| Insulation Panel Inner Diameter: | 24 mm |
| Insulation Panel Hole Spacing: | 50 mm |
| Insulation Panel Width: | 68 mm |
| Insulation Panel Height: | 37 mm |
| GROß Thickness Membrane Block Gasket: | 0,5 mm |
| Large-Width Diaphragm Block Gasket: | 58 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 44 mm |
| Intake Manifold Width: | 52 mm |
| Intake Manifold Internal Dimensions: | 28 x 38 mm |
| Intake Manifold Height: | 36 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 32 x 38 mm |
| KLEIN Membrane Block Gasket, Wide: | 61 mm |
| Internal Dimensions of the Membrane Block: | 25 x 39 mm |
| Diaphragm Block Height: | 35 mm |
| Membrane Block Length: | 71 mm |
| Hole spacing: | 40 x 60 mm |
| Tuning & Styling Part: | No |
| Intake manifold gasket Hole spacing: | 50 mm |
| Vintage part: | No |
| Mounting method: | Screw-on |
| Universal compatibility: | No |
| GTIN: | 4060861267796 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 24 mm |
| Features: | Membranblock mit Metall-Membran, Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x intake manifold set |
| Manufacturer number: | 114549 |
| Installation position: | Engine compartment |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Mikuni carburetor |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
With the 24mm intake manifold including insulating plate, reed block, and gaskets from Citomerx, you receive a high-quality replacement part set specifically developed for the Honda models MT, MB, MTX, and MBX 50. This set ensures optimal fuel and air supply, contributing to improved engine performance and a longer lifespan for your vehicle.
Product Advantages:
- Precise fit for Honda MT, MB, MTX, MBX 50
- High-quality materials for long durability
- Complete set with intake manifold, insulating plate, reed block, and gaskets
FAQ:
Question: Is this intake manifold compatible with other Honda models?
Answer: This set is specifically developed for the Honda models MT, MB, MTX, and MBX 50 and does not fit other models.
Question: What are the advantages of the reed block?
Answer: The reed block ensures an efficient air-fuel mixture, optimizing engine performance and reducing fuel consumption.
Use this complete set to enhance the performance and reliability of your Honda motorcycle and avoid costly engine damage. Order now and benefit from the high quality and precise fit of Citomerx products!
Scope of Delivery:
✔ Intake Manifold 24mm
✔ Insulating Plate
✔ Reed Block
✔ Gaskets
