Carburetor VM24 24mm + Insulating Plate + Intake Manifold + Gaskets for Honda MT MB MTX MBX 50 - Citomerx
- Manufacturer: Citomerx
- Item no: 114551
- Manufacturer no.: 114551
- EAN: 4060861267819
Item data
| Country of origin: | China |
| Stud Thread: | M8 |
| Product type: | Vergaser-/Ansaugstutzen Set |
| Insulation Panel Thickness: | 5 mm |
| KLEIN Diaphragm Block Seal Length: | 76 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,6 mm |
| Intake Manifold Gasket Inner Diameter: | 24 mm |
| Intake Manifold Gasket Width: | 68 mm |
| Intake Manifold Gasket Thickness: | 0,6 mm |
| Intake Manifold Gasket Height: | 38 mm |
| Intake Manifold Length: | 72 mm |
| Insulation Panel Inner Diameter: | 24 mm |
| Insulation Panel Hole Spacing: | 50 mm |
| Insulation Panel Width: | 68 mm |
| Insulation Panel Height: | 37 mm |
| Carburetor Hole Spacing on the Cylinder Side: | 50 mm |
| Carburetor Connection on the Air Filter Side: | 43 mm |
| Carburetor Connection on the Cylinder Side: | 25 mm |
| GROß Thickness Membrane Block Gasket: | 0,5 mm |
| Large-Width Diaphragm Block Gasket: | 58 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 44 mm |
| Intake Manifold Width: | 52 mm |
| Intake Manifold Internal Dimensions: | 28 x 38 mm |
| Intake Manifold Height: | 36 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 32 x 38 mm |
| KLEIN Membrane Block Gasket, Wide: | 61 mm |
| Hole spacing: | 40 x 60 mm |
| Carburetor passage: | 24 mm |
| Intake manifold gasket Hole spacing: | 50 mm |
| Carburetor type: | Mikuni VM24 |
| GTIN: | 4060861267819 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 24 mm |
| Features: | Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x Vergaser-/Ansaugstutzen Set |
| Manufacturer number: | 114551 |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Mikuni carburetor |
Cylinder with Piston 50cc 39mm (5.5 HP) Flange Connection for Honda MT MB 50
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner

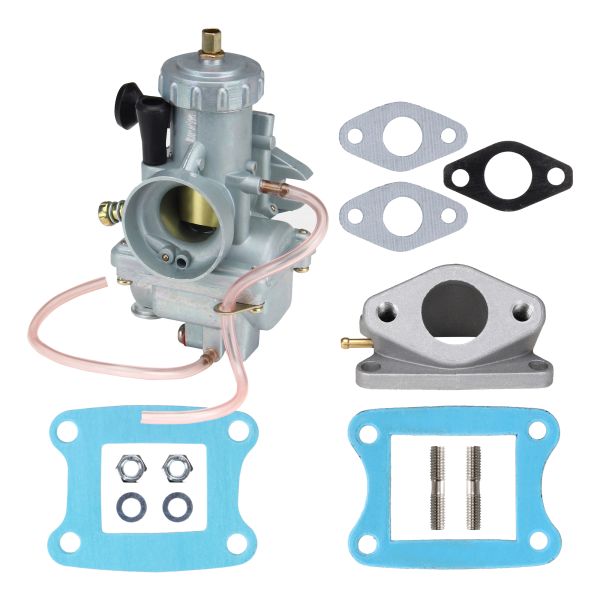

The high-quality VM24 24mm carburetor from Citomerx is the ideal choice for your Honda MT, MB, MTX, and MBX 50. With precise craftsmanship and robust materials, this carburetor ensures optimal performance and durability. Thanks to the included insulating plate, intake manifold, and gaskets, the carburetor is ready for immediate use and ensures a perfect fit and seal. Whether you want to replace your old carburetor or optimize your vehicle's performance, this carburetor offers you the perfect solution.
Product Advantages:
- Precise craftsmanship for optimal performance
- Robust materials for long durability
- Includes insulating plate, intake manifold, and gaskets
FAQ:
Question: Is this carburetor compatible with the Honda MT 50?
Answer: Yes, the VM24 24mm carburetor fits perfectly with Honda MT, MB, MTX, and MBX 50 models.
Question: What advantages does the VM24 carburetor offer compared to the original part?
Answer: The VM24 carburetor offers more precise craftsmanship and more robust materials, resulting in better performance and longer durability.
Don't miss the opportunity to optimize your vehicle with this high-quality carburetor. Order now and benefit from faster acceleration and improved driving performance.
Scope of Delivery:
✔ Carburetor VM24 24mm
✔ Insulating Plate
✔ Intake Manifold
✔ Gaskets
