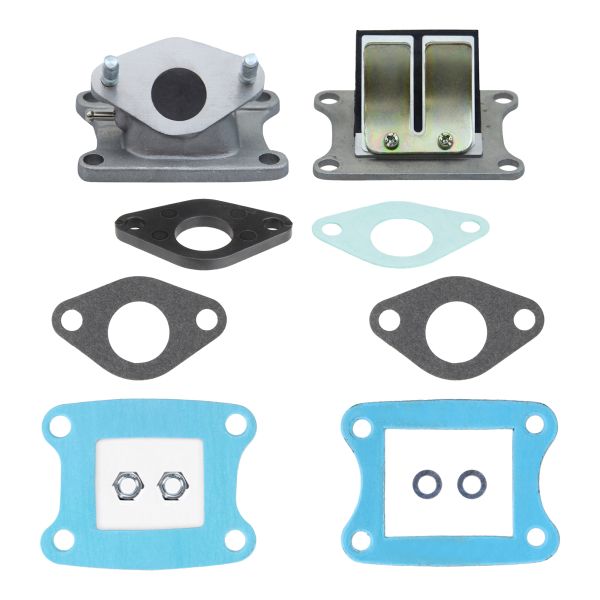

18mm Intake Manifold + Insulating Plate + Membrane Block + Gaskets (Keihin Carburetor) for Honda MT MB MTX MBX 50
- Manufacturer: Citomerx
- Item no: 114562
- Manufacturer no.: 114562
- EAN: 4060861267895
Item data
| Product type: | Intake manifold set |
| Country of origin: | China |
| Stud Thread: | M6 |
| Intake Manifold Gasket Thickness: | 0,5 mm |
| Diaphragm Block Width: | 52 mm |
| KLEIN Diaphragm Block Seal Length: | 76 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,6 mm |
| Insulation Panel Height: | 37 mm |
| GROß Thickness Membrane Block Gasket: | 0,5 mm |
| Large-Width Diaphragm Block Gasket: | 58 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 44 mm |
| Intake Manifold Width: | 52 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 32 x 38 mm |
| KLEIN Membrane Block Gasket, Wide: | 61 mm |
| Internal Dimensions of the Membrane Block: | 25 x 39 mm |
| Diaphragm Block Height: | 35 mm |
| Membrane Block Length: | 71 mm |
| Intake Manifold Gasket Width: | 63 mm |
| Intake Manifold Gasket Height: | 37 mm |
| Intake Manifold Length: | 74 mm |
| Intake Manifold Internal Dimensions: | 24 x 36 mm |
| Intake Manifold Height: | 40 mm |
| Intake Manifold Gasket Inner Diameter: | 20 mm |
| Insulation Panel Inner Diameter: | 20 mm |
| Insulation Panel Thickness: | 4,5 mm |
| Insulation Panel Hole Spacing: | 48 mm |
| Insulation Panel Width: | 60 mm |
| Hole spacing: | 40 x 60 mm |
| Tuning & Styling Part: | No |
| Intake manifold gasket Hole spacing: | 48 mm |
| Vintage part: | No |
| Mounting method: | Screw-on |
| Universal compatibility: | No |
| GTIN: | 4060861267895 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 18 mm |
| Features: | Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x intake manifold set |
| Manufacturer number: | 114562 |
| Installation position: | Engine compartment |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Keihin Vergaser |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Racing 6-valve membrane block for Minarelli horizontal / Yamaha Aprilia Suzuki CPI Generic Keeway
Experience a significant performance boost and improved efficiency with the high-quality intake manifold set from Citomerx, specifically designed for Honda MT, MB, MTX, and MBX 50 models. This set includes a precisely manufactured 18mm intake manifold, a robust insulating plate, a durable membrane block, and all necessary gaskets. The intake manifold perfectly fits Keihin carburetors ensuring that your vehicle is optimally supplied with air and fuel, leading to improved engine performance and longevity.
Product Benefits:
- High-quality materials guarantee durability and reliability
- Precise fit for Honda MT, MB, MTX, and MBX 50 models
- Optimized air-fuel supply for better engine performance
- Includes all necessary components for easy installation
FAQ:
Does this intake manifold set fit my Honda MTX 50?
Yes, this set is specifically designed for Honda MT, MB, MTX, and MBX 50 models and guarantees a perfect fit.
What are the benefits of the Keihin carburetor in combination with this intake manifold?
The Keihin carburetor combined with this intake manifold set ensures an optimized air-fuel supply, leading to improved engine performance and efficiency.
Optional:
To get the best performance out of your vehicle, we recommend regularly checking the intake manifold for wear and replacing it if necessary.
Call-to-Action:
Improve the performance of your Honda MT, MB, MTX, or MBX 50 with this high-quality intake manifold set from Citomerx. Order now and get your vehicle back on the road in minutes!
Scope of Delivery:
✔ 18mm intake manifold
✔ Insulating plate
✔ Membrane block
✔ Gaskets
