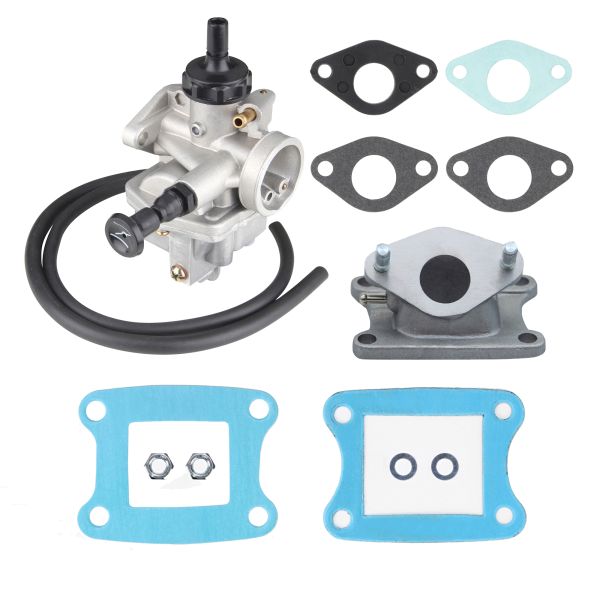

Carburetor 18mm + Insulation Plate + Intake Manifold + Gaskets (Keihin Carburetor) for Honda MT MB MTX MBX 50 - Citomerx
- Manufacturer: Citomerx
- Item no: 114565
- Manufacturer no.: 114565
- EAN: 4060861267918
Item data
| Country of origin: | China |
| Stud Thread: | M6 |
| Product type: | Vergaser-/Ansaugstutzen Set |
| Intake Manifold Gasket Thickness: | 0,5 mm |
| KLEIN Diaphragm Block Seal Length: | 76 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,6 mm |
| Insulation Panel Height: | 37 mm |
| GROß Thickness Membrane Block Gasket: | 0,5 mm |
| Large-Width Diaphragm Block Gasket: | 58 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 44 mm |
| Intake Manifold Width: | 52 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 32 x 38 mm |
| KLEIN Membrane Block Gasket, Wide: | 61 mm |
| Intake Manifold Gasket Width: | 63 mm |
| Intake Manifold Gasket Height: | 37 mm |
| Intake Manifold Length: | 74 mm |
| Intake Manifold Internal Dimensions: | 24 x 36 mm |
| Intake Manifold Height: | 40 mm |
| Intake Manifold Gasket Inner Diameter: | 20 mm |
| Insulation Panel Inner Diameter: | 20 mm |
| Insulation Panel Thickness: | 4,5 mm |
| Insulation Panel Hole Spacing: | 48 mm |
| Insulation Panel Width: | 60 mm |
| Carburetor Connection on the Cylinder Side: | 20 mm |
| Carburetor Hole Spacing on the Cylinder Side: | 48 mm |
| Carburetor Connection on the Air Filter Side: | 36 mm |
| Hole spacing: | 40 x 60 mm |
| Carburetor passage: | 18 mm |
| Intake manifold gasket Hole spacing: | 48 mm |
| Carburetor type: | Keihin |
| GTIN: | 4060861267918 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 18 mm |
| Features: | Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x Vergaser-/Ansaugstutzen Set |
| Manufacturer number: | 114565 |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Keihin Vergaser |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Carburateur 17,5mm 'Type PHVA' pour Piaggio Peugeot PGO Pegasus MBK Kymco Keeway
Experience a noticeable performance boost with our high-quality carburetor set from Citomerx! This 18mm carburetor including insulation plate, intake manifold, and gaskets has been specifically developed for the Honda MT MB MTX MBX 50 and impresses with its precise craftsmanship and optimal fit. The carburetor is a Keihin carburetor, known for its reliability and efficiency. With this set, you can easily tune your engine and raise your vehicle's performance to a new level.
Product Advantages:
- Perfect fit for Honda MT MB MTX MBX 50
- High-quality workmanship and durable materials
- Easy installation and ready to use immediately
- Optimized fuel supply for increased performance
- Includes all necessary gaskets and insulation plate
FAQ:
Q: Is this carburetor set compatible with my Honda MT 50?
A: Yes, this set is specifically developed for Honda MT MB MTX MBX 50 models and guarantees a perfect fit.
Q: How does this carburetor set improve my vehicle's performance?
A: Through optimized fuel supply and precise craftsmanship, the carburetor increases the engine's efficiency, leading to a noticeable performance boost.
Don't miss the opportunity to enhance the performance of your Honda MT MB MTX MBX 50. Order now and get your vehicle ready and more powerful in just a few minutes. This set is the perfect choice for those who value quality and performance.
Scope of Delivery:
✔ 18mm carburetor
✔ Insulation plate
✔ Intake manifold
✔ Gaskets
- Carburetor
- 18mm carburetor
- Honda MT 50
- Honda MB 50
- Honda MTX 50
- Honda MBX 50
- Keihin carburetor
- Carburetor set
- Citomerx
- Spare parts
- High-quality carburetor
- Performance boost
- Intake manifold
- Insulation plate
- Gaskets
- Tuning
- Fuel supply
- Engine performance
- Compatible with Honda
- Spare part Honda
- Motorcycle carburetor
- Scooter carburetor
- Moped carburetor
- Quad carburetor
- Buy carburetor
- Order carburetor
