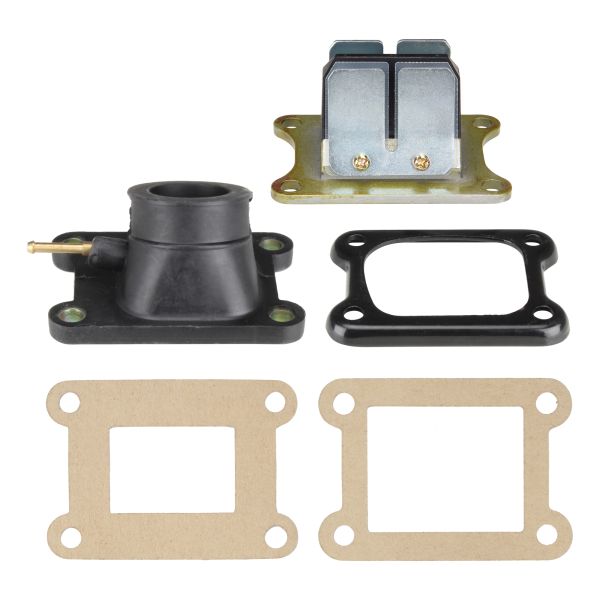

Membrane Block + Intake Manifold + Gaskets (60x40mm) (Plastic) Aprilia RX SX / Derbi Senda (D50B0 EBE050 EBS050 Engine) - Citomerx
- Manufacturer: Citomerx
- Item no: 114594
- Manufacturer no.: 114594
- EAN: 4060861268045
Item data
| Country of origin: | China |
| Product type: | Membranblock + Ansaugstutzen Set |
| Diaphragm Block Width: | 52 mm |
| Membrane Block Length: | 73 mm |
| GROß Diaphragm Block Seal, Length: | 75 mm |
| Intake Manifold Width: | 52 mm |
| Internal Dimensions of the Membrane Block: | 25 x 39 mm |
| Intake Manifold Length: | 74 mm |
| GROß Thickness Membrane Block Gasket: | 0,45 mm |
| Large-Width Diaphragm Block Gasket: | 54 mm |
| GROß Diaphragm Block Seal Internal Dimensions: | 37 x 46 mm |
| Intake Manifold Internal Dimensions: | 22 x 33 mm |
| Intake Manifold Height: | 38 mm |
| KLEIN Diaphragm Block Seal Internal Dimensions: | 25 x 36 mm |
| KLEIN Membrane Block Gasket, Wide: | 53 mm |
| KLEIN Diaphragm Block Seal Length: | 73 mm |
| KLEIN Membrane Block Gasket, Thick: | 0,45 mm |
| Diaphragm Block Height: | 38 mm |
| Hole spacing: | 40 x 60 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| Mounting method: | Screw-on |
| Universal compatibility: | No |
| GTIN: | 4060861268045 |
| Note: | Please compare dimensions! |
| Intake manifold inside diameter: | 23 mm |
| Scope of delivery: | Intake manifold, Membrane block, 2x Membranblockdichtung |
| Features: | mit Kunststoff-Membran, Ansaugstutzen mit 4 mm Unterdruckanschluss |
| Scope of delivery: | 1x Membranblock - Ansaugstutzen Set |
| Manufacturer number: | 114594 |
| Installation position: | Engine compartment |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| suitable for: | Derbi D50B0 EBE050 EBS050 |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Cylinder Set + Head 50ccm 41mm for Morini LC Suzuki Katana Zillion / Aprilia SR - Citomerx
Spark Plug NGK BP 9ES for Honda, Yamaha, Kawasaki, Aprilia, Rex, Piaggio, Hercules, Zündapp
Cylinder kit with aluminum cylinder head 50 cc + NGK spark plug Yamaha Aerox, MBK Nitro
This high-quality membrane block including intake manifold and gaskets from Citomerx is the perfect replacement part for your Aprilia RX SX or Derbi Senda with D50B0, EBE050, or EBS050 engine. Made of durable plastic, this set offers not only a precise fit but also superior durability and reliability. Replace your old and worn-out original parts now and restore the full performance of your two-wheeler.
Product Benefits:
- High precision fit and easy installation
- Durable and resilient material
- Optimal performance for Aprilia RX SX and Derbi Senda models
FAQ:
Is this set compatible with my Aprilia RX SX?
Yes, this set is specifically designed for Aprilia RX SX and Derbi Senda models with D50B0, EBE050, or EBS050 engine.
Why should I buy this set?
This set offers excellent fit and durability, ensuring that your two-wheeler delivers optimal performance. It is the ideal choice as a replacement for worn-out original parts.
Scope of Delivery:
✔ Membrane block (60x40mm) made of plastic
✔ Intake manifold
✔ Gaskets
Secure this high-quality replacement part set today and enjoy improved performance and reliability of your vehicle. Buy now and be safe and powerful on the road again!
