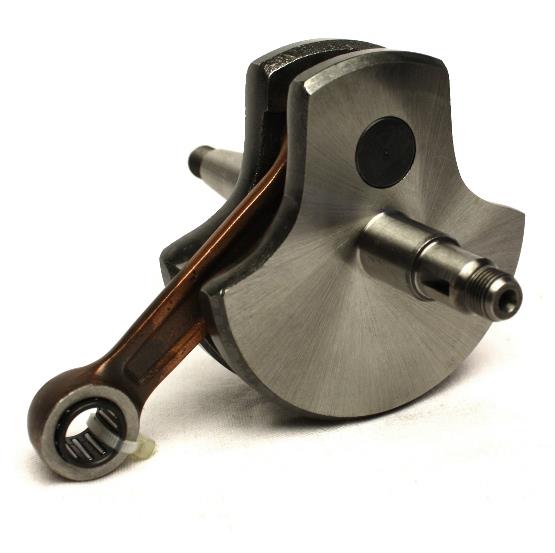

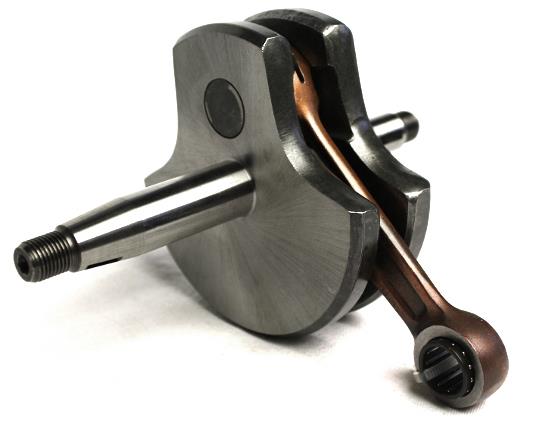

JASIL crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine // Hercules 222 MF3 HR1 Lastboy MK50 MP 2 3 4 R50
Prices plus VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 6030055
- EAN: 5605822003656
- Manufacturer: JASIL - Top Racing
- Manufacturer no.: 6030055
Hercules 222 MFH (1966-)
Hercules MF 3 (1972-1975)
Hercules 222 T (1966-)
Hercules 222 TH (1967-)
Hercules 222 TS (1966-)
Hercules HR 1 (1972-1974)
Hercules LASTBOY (1965-)
Hercules MK 50 (1965-1966)
Hercules MK 50 (1967-1970 )
Hercules MP 2 (1971-1977)
Hercules MP 3 (1971-)
Hercules MP 4 Duo - Type 632 (1972-1978)
Hercules MP 4 Duo - Type 632 (1976-1978)
Hercules Optima MP 4 (1982-2002)
Hercules R 50 (1975-1979)
Hercules R 50 (1964-1979)
HerculesR 50 ( 1965-1974)
Sachs 50/2 MA
Sachs 50/2 MA NL
Sachs 50/2 MA SF
Sachs 50/2 MA X
Sachs 50/2 MB
Sachs 50/2 S
Sachs 50/2 DK
Sachs 50/2 C
Sachs 50/2 D
Sachs 50/2 D NL
Sachs 50/2 MAK
Sachs 50/2 MAK SF
Sachs 50/2 K
Sachs 50/2 K S
Sachs 50/2 K DK
Sachs 50/2 MLA
Sachs 50/2 MLA X
Sachs 50/2 MLB
Sachs 50/2 MLC
Sachs 50/3 MA I
Sachs 50/3 MA NL
Sachs 50/3 MA SF
Sachs 50/3 MA X
Sachs 50/3 MB
Sachs 50/3 MK
Sachs 50/3 MK /3 L
Sachs 50/3 LS
Sachs 50/3 H
| Product type: | Crankshaft |

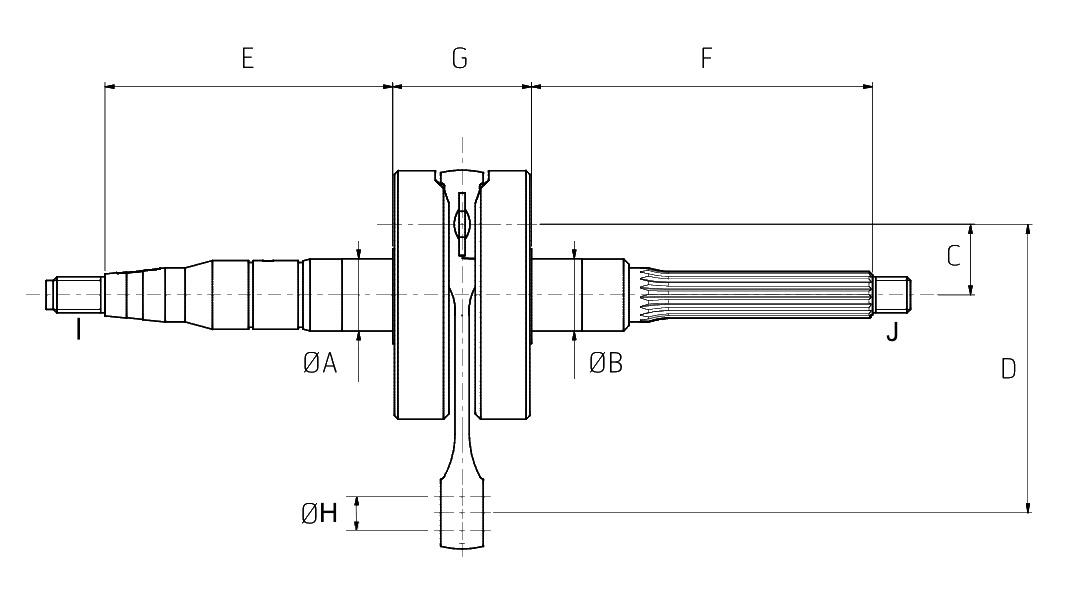

| Dimension B (shaft diameter on coupling side): | 15 mm |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 32.5 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 21 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 42 mm |
| Dimension G (width of crank webs): | 30.1 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 0286139400, 0286 139 400, Jasil - Top Racing 6 030 055 |
| GTIN: | 5605822003656 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 52 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 6030055 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Original |
J. Antonio da Silva
Parque Industrial de Adaúfe Lote I-6
4701-853 Braga PRT
Web page https://www.jasil.com/
Email: info@jasil.com
Top Racing is a brand of the Portuguese company Jasil, founded in 1950 as a metalworking company and increasingly involved in the two-wheeler sector since the end of the 20th century. Top Racing products are designed primarily for use in racing. Top Racing manufactures a wide range of products for scooters, motorcycles and mopeds. Best known are the high quality crankshafts in the significant black and yellow boxes.
