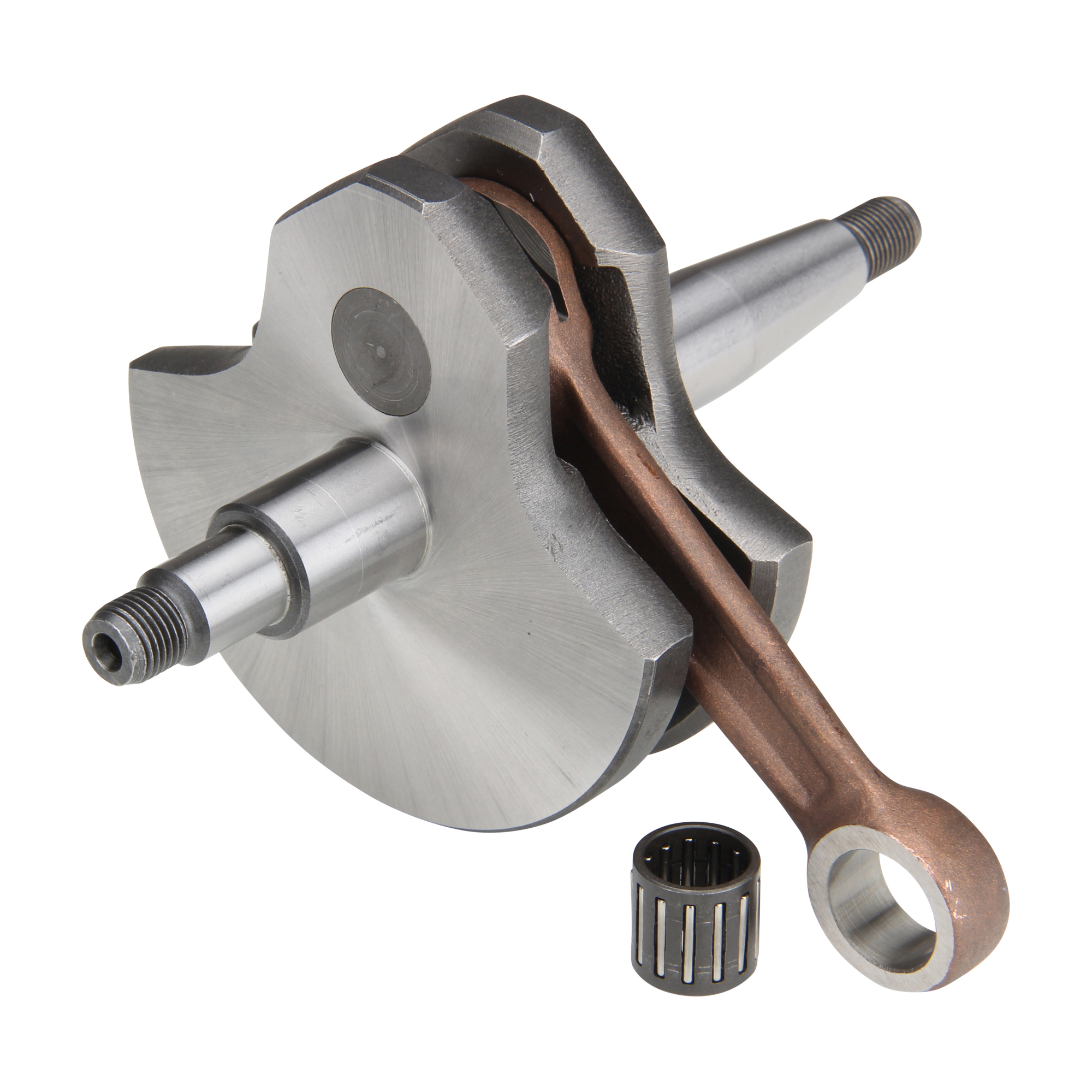

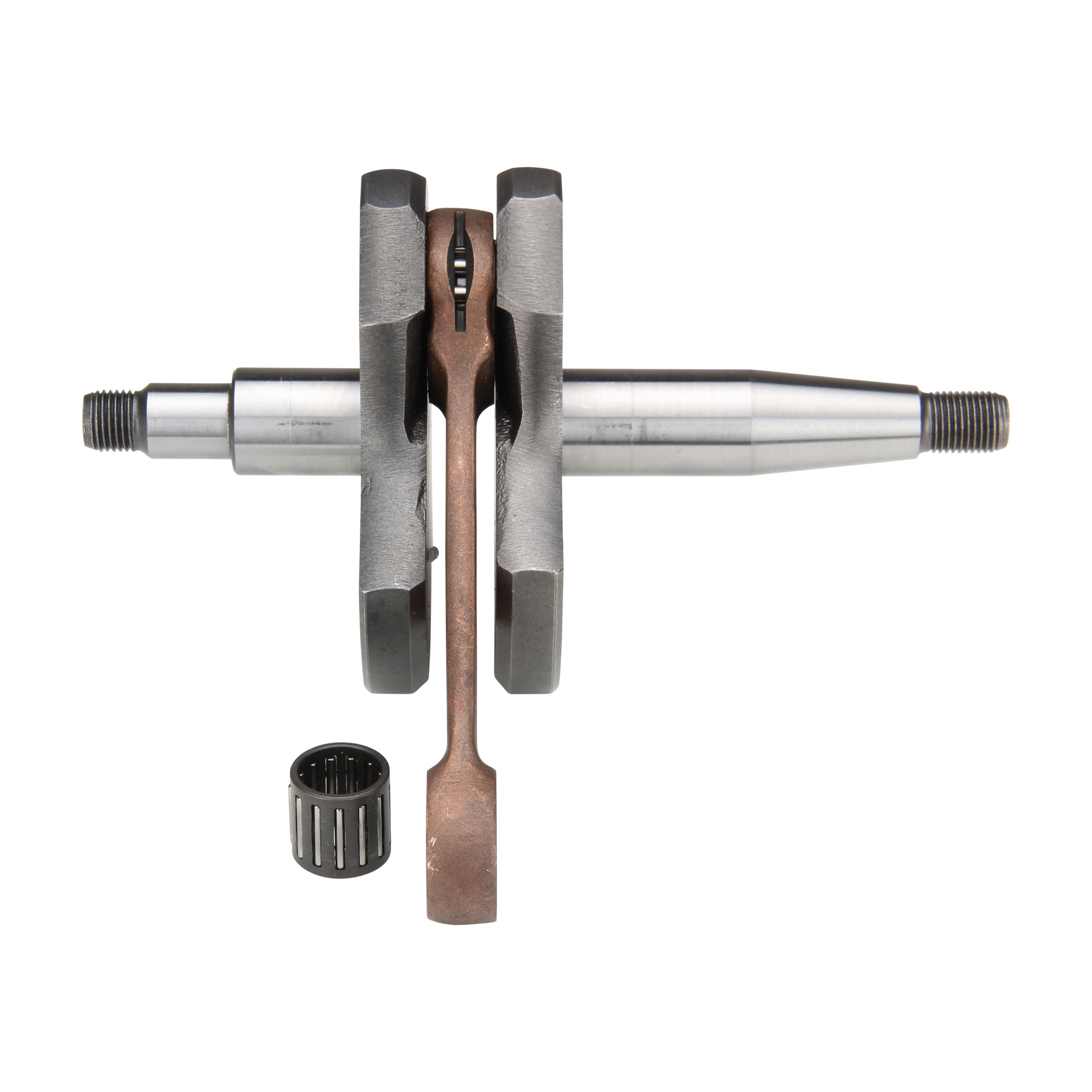

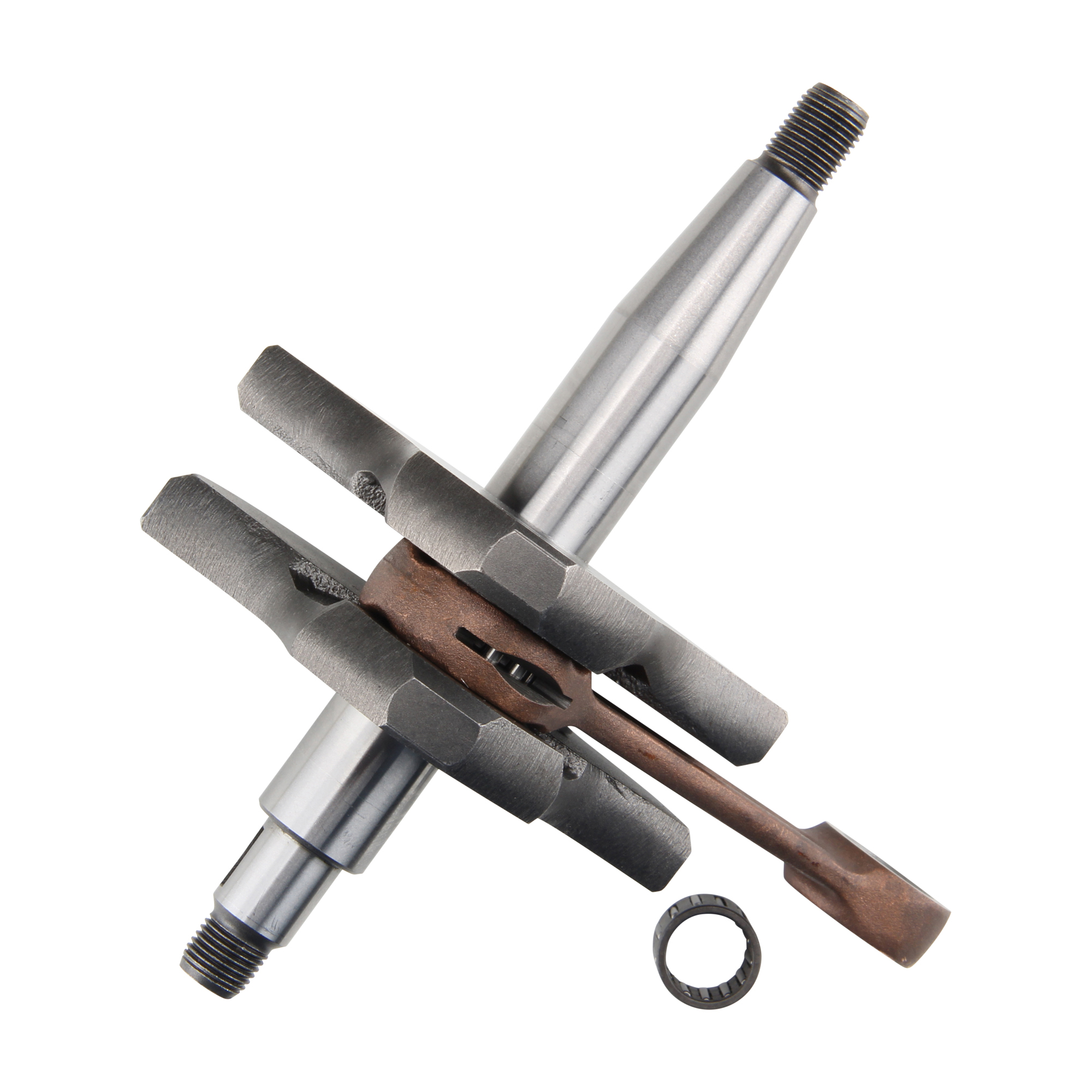

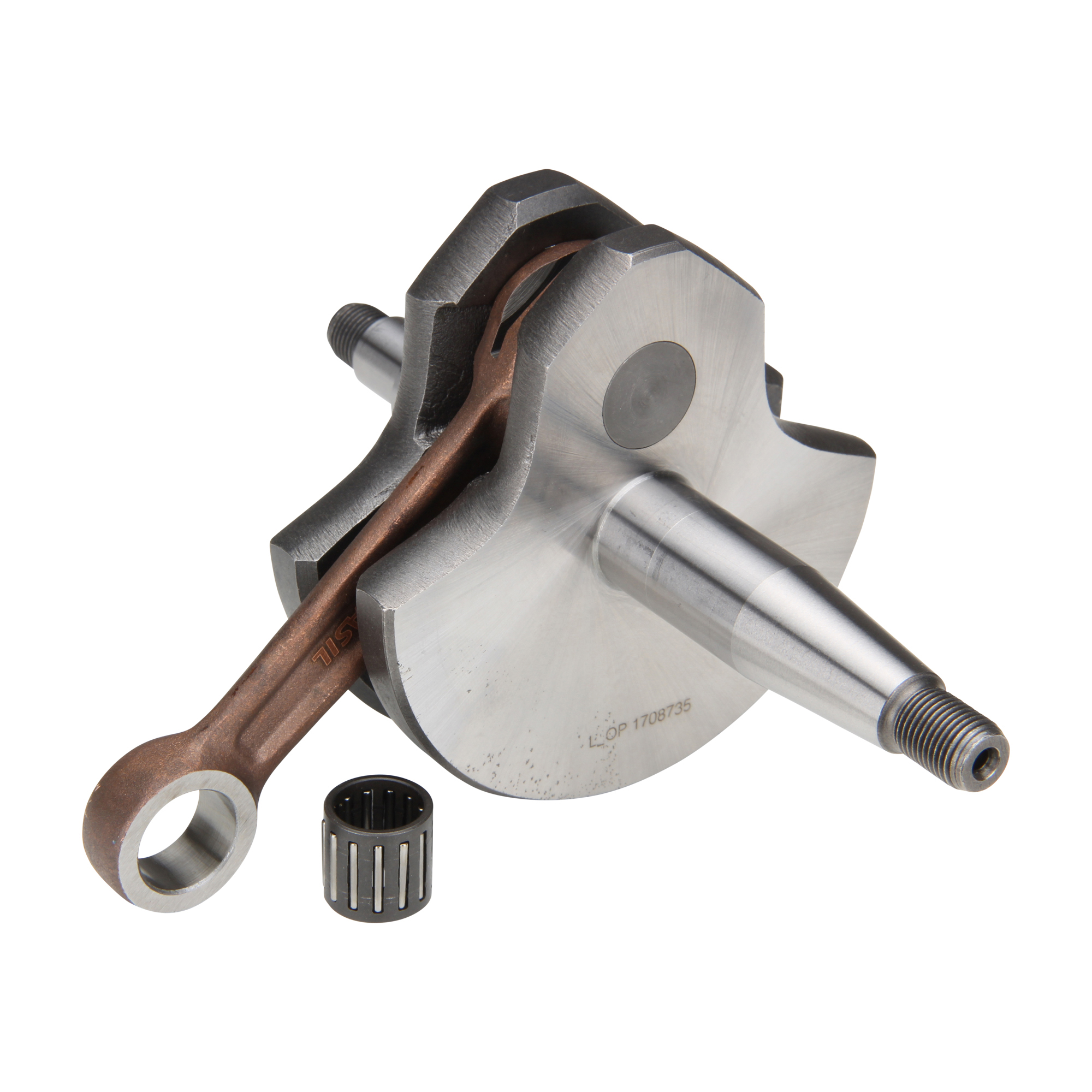

JASIL crankshaft ORIGINAL (L17 bearing 17mm) for Sachs 50/3 50/4 engine // Hercules Prima G3 Lastboy R50S
- Manufacturer: JASIL - Top Racing
- Item no: 6030056
- Manufacturer no.: 6030056
- EAN: 5605822003663
Item data
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 17 mm |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 34.5 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |

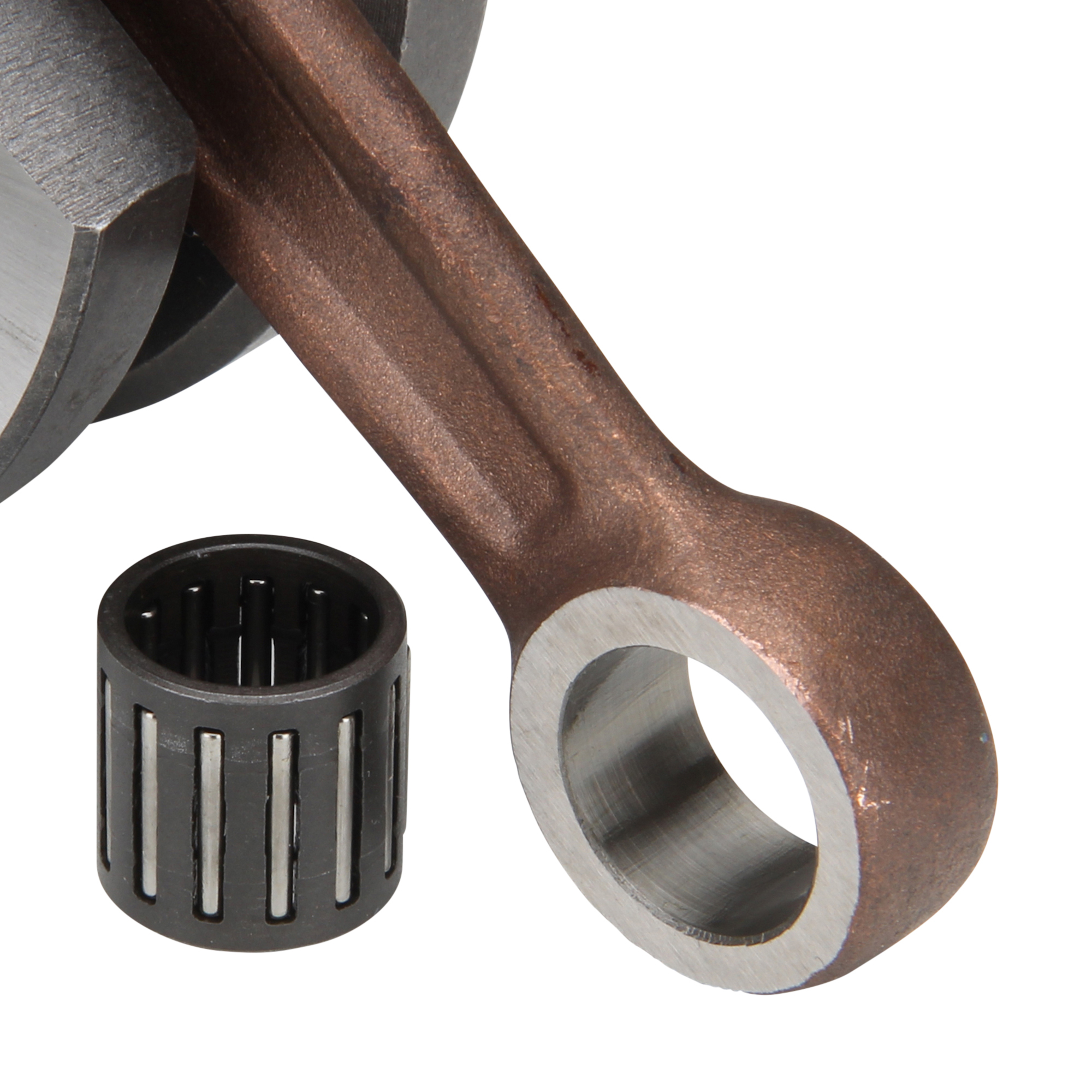

| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 21 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 42 mm |
| Dimension G (width of crank webs): | 30.1 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 0286 203 100, 0286203100, 0286 203 000, 0286203000, Jasil - Top Racing 6 030 056 |
| GTIN: | 5605822003663 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 56 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 6030056 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Original |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Pinion 12 teeth pitch 415 type 0223 for Sachs 50 Saxonette 50/A 50/2 engine
Tuning piston set 38mm 50cc for Hercules Prima M 2 3 4 5 Optima GT HR Jogging Sachs 504 505 506
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
RITO crankshaft RACING (L17 bearing 17mm) (44mm stroke) for Sachs 50/3 50/4 engine
Hercules Prima G3 (1978-1987)
Hercules LASTBOY (1965-)
Hercules R 50 S (1961-1974)
Sachs 50/3 MLA
Sachs 50/3 MLA /3 MLKB
Sachs 50/3 MLKA
Sachs 50/3 MLKA X
Sachs 50/3 LKH
Sachs 50/3 LKH NL
Sachs 50/3 C
Sachs 50/3 C NL
Sachs 50/3 D
Sachs 50/3 MAKF
Sachs 50/3 MAKF SF
Sachs 50/3 MAKF X
Sachs 50/3 KF
Sachs 50/3 KF S
Sachs 50/3 BKF
Sachs 50/3 BKF S
Sachs 50/3 MLFB
Sachs 50/3 LFH
Sachs 50/3 LFS
Sachs 50/4 CF
Sachs 50/4 CF NL
Sachs 50/4 DF
Sachs 50 /4 DF MLFB
Sachs 50/4 MLKA X
Sachs 50/4 LKS
Sachs 50/4 LKH
