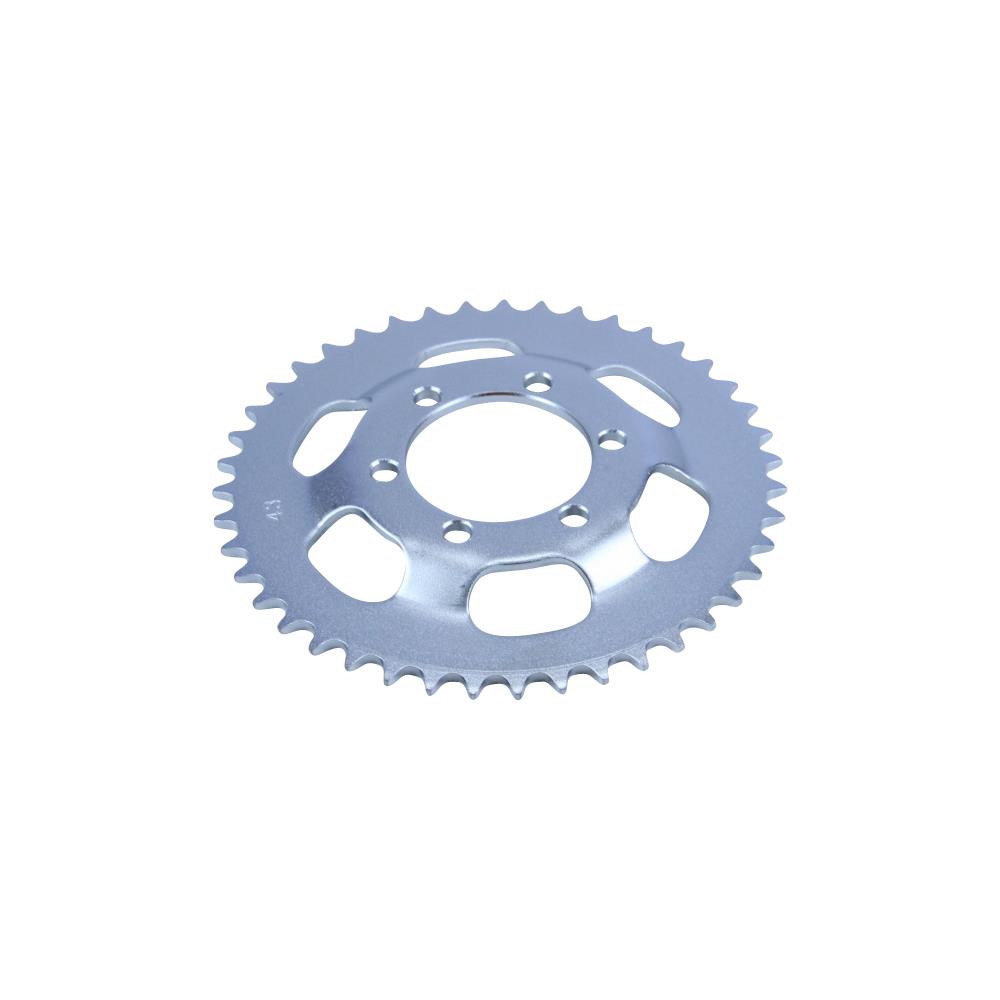

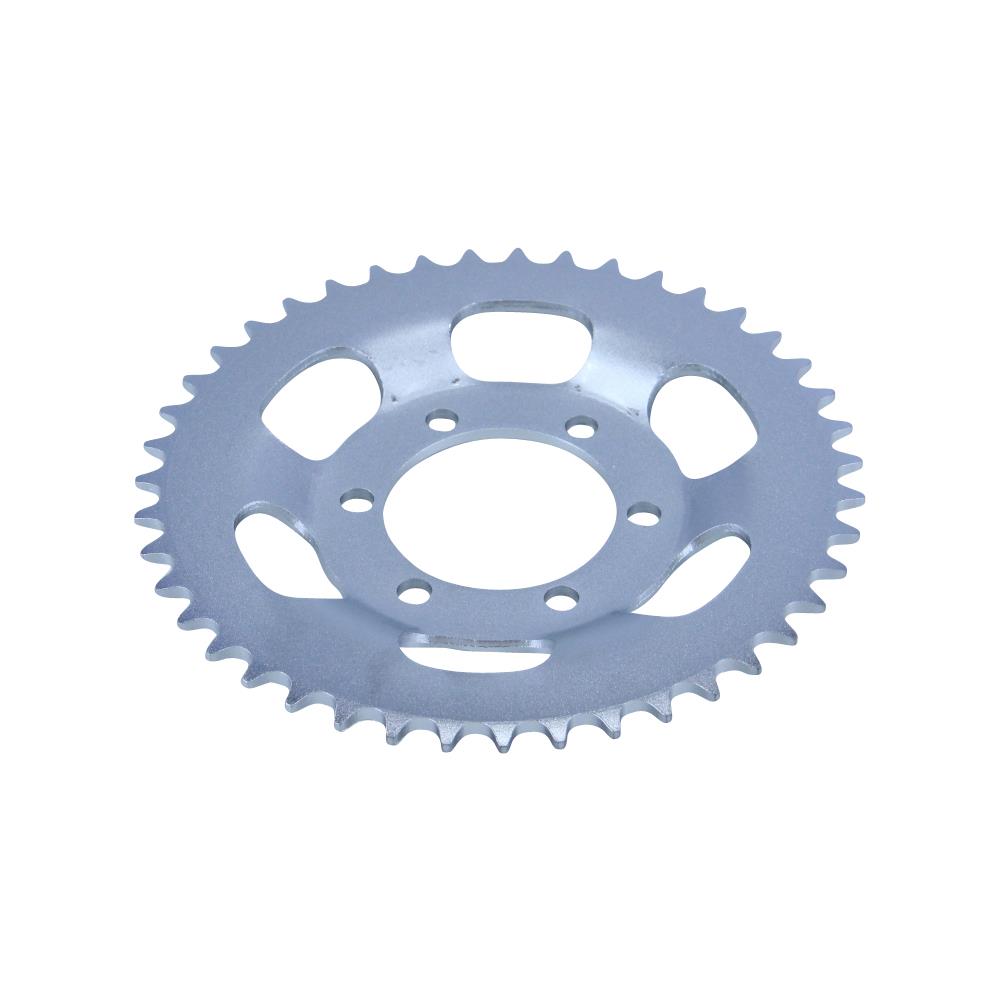

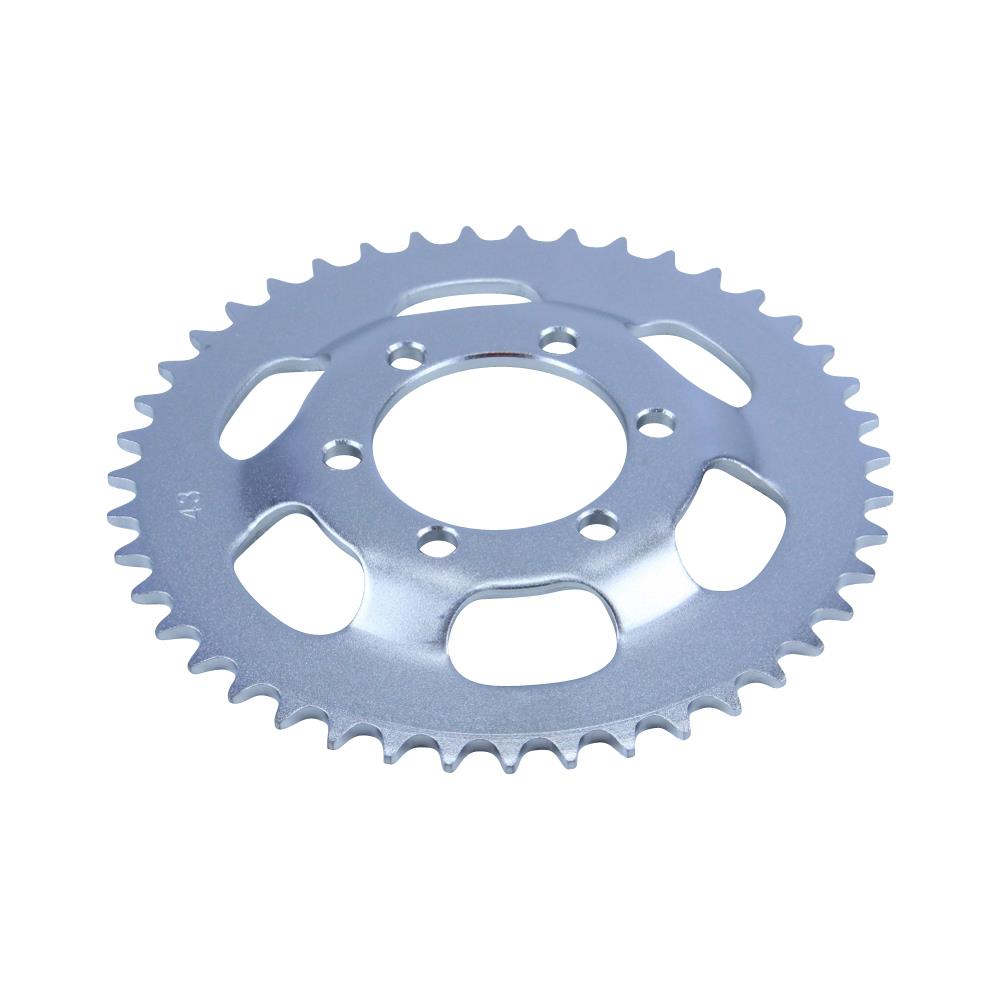

Sprocket 43 teeth pitch 415 type 0835 SILVER for Zundapp C ZD Hai ZX ZL KS GTS CS 25 50 type 441 446 448 460 517 529
- Manufacturer: Citomerx
- Item no: 423-15.406-silber
- Manufacturer no.: 188775
- EAN: 4060861050701
Item data
| Product type: | Sprocket |
| Number of fixing holes: | 6 |
| Division: | 415 (1/2 x 3/16 x 7.75) |
| Sprocket tuning note 1: | More teeth -> better acceleration / less top speed |
| Sprocket tuning note 2: | Fewer teeth -> more top speed / less acceleration |
| Vintage part: | Yes |
| Universal compatibility: | No |
| Chainring thickness: | 3/16" (4.60 mm) |
| Compatible year: | not specified |
| Model compatibility: | not specified |
| OE/OEM reference number(s): | 423-15.406 |
| ATTENTION!: | Change in the number of teeth -> Cancellation of operating license! |
| GTIN: | 4060861050701 |

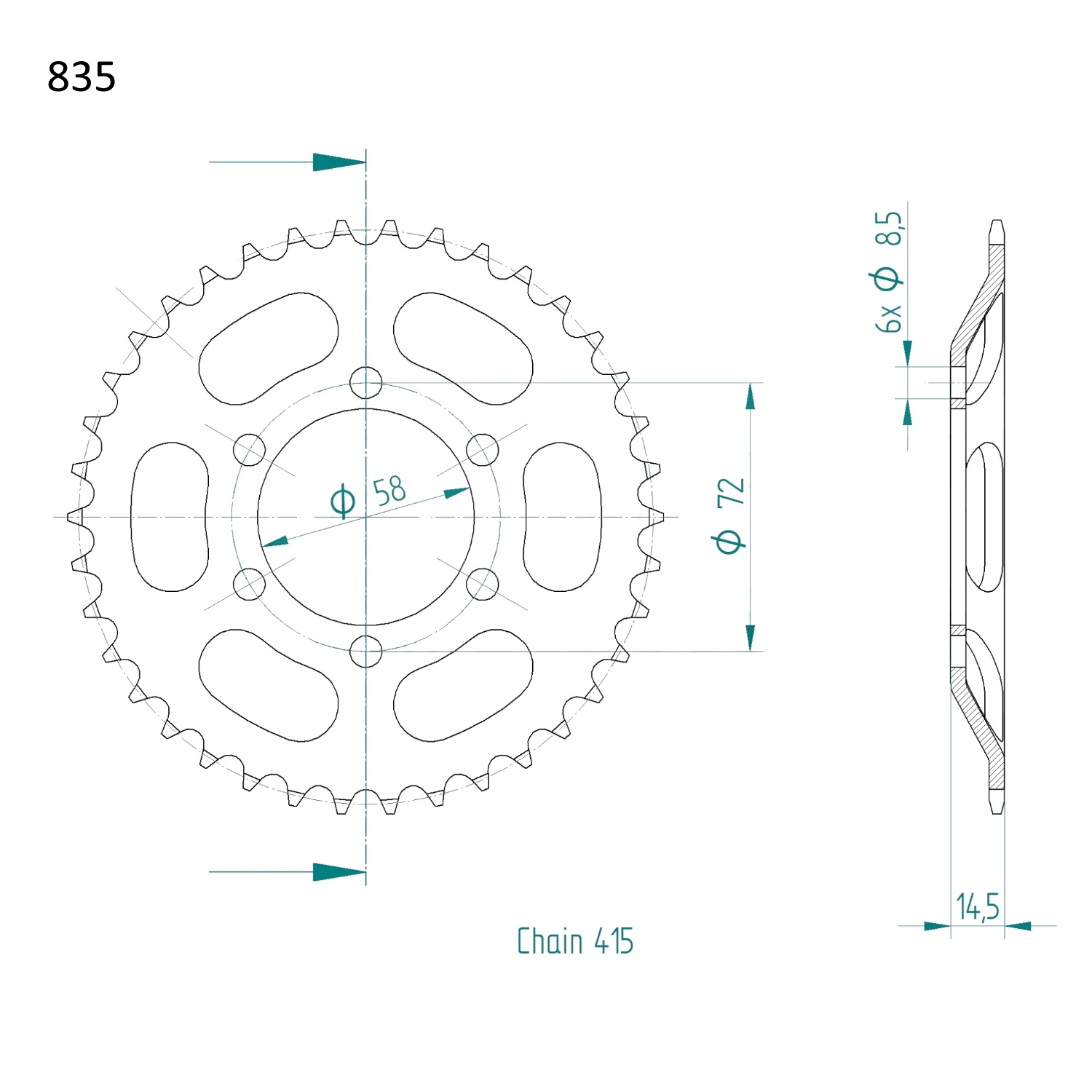

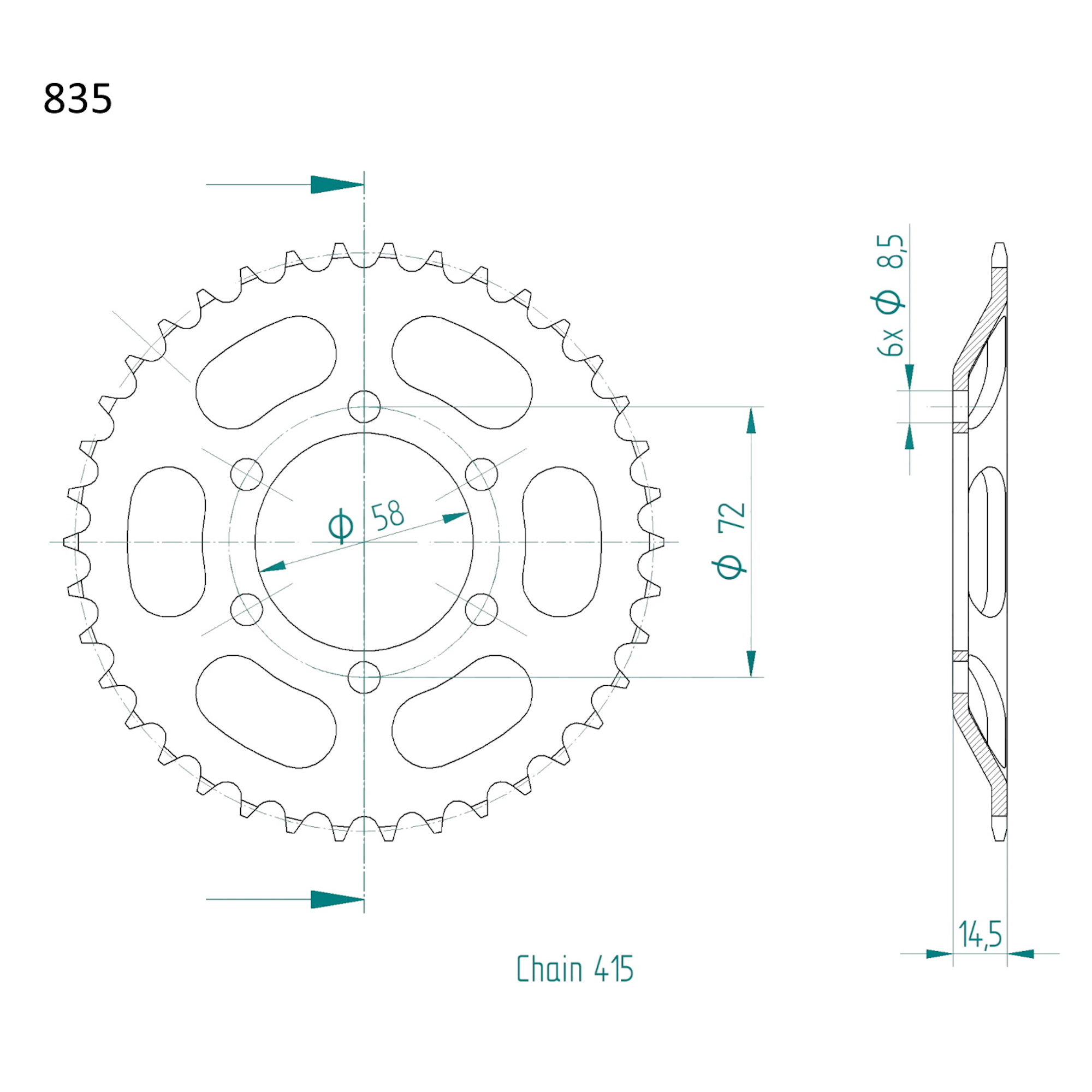

| Fixing hole diameter: | 8.30 mm |
| Note: | Note the original translation! |
| Compatible chain link length: | 1/2" (12.70 mm) |
| Color: | Silver |
| Total width: | 15.00 mm |
| Bolt circle: | 72.00 mm |
| Scope of delivery: | 1x sprocket |
| Manufacturer number: | 188775 |
| Country and region of manufacture: | China |
| Brand compatibility: | Zündapp |
| Installation position: | Rear |
| Type of motorcycle: | Moped & Mokick |
| Execution: | cranked |
| Manufacturer warranty: | 2 years |
| Diameter: | 174.00 mm |
| Inner diameter: | 58.00 mm |
| Material: | Steel |
| Type: | 0835 |
