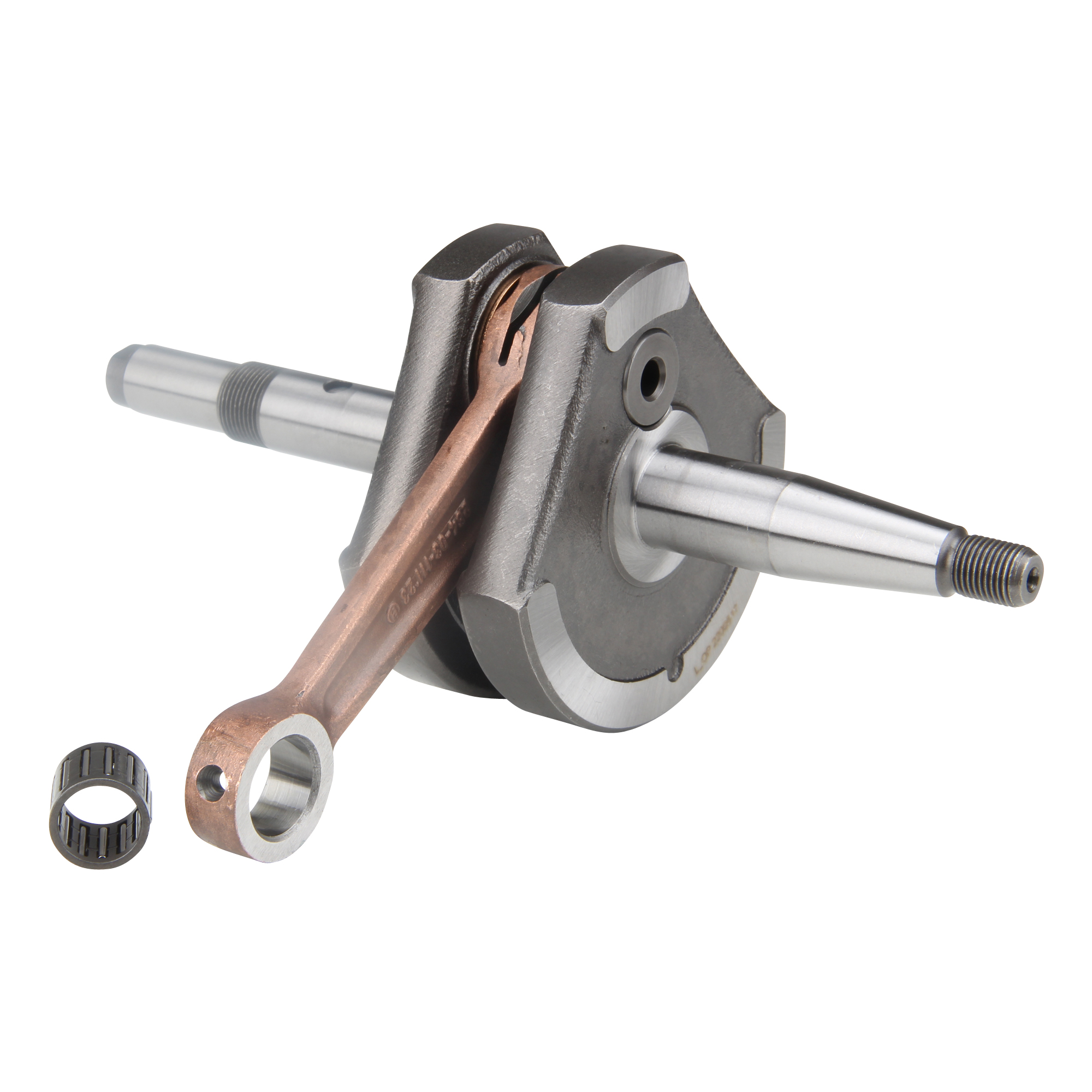

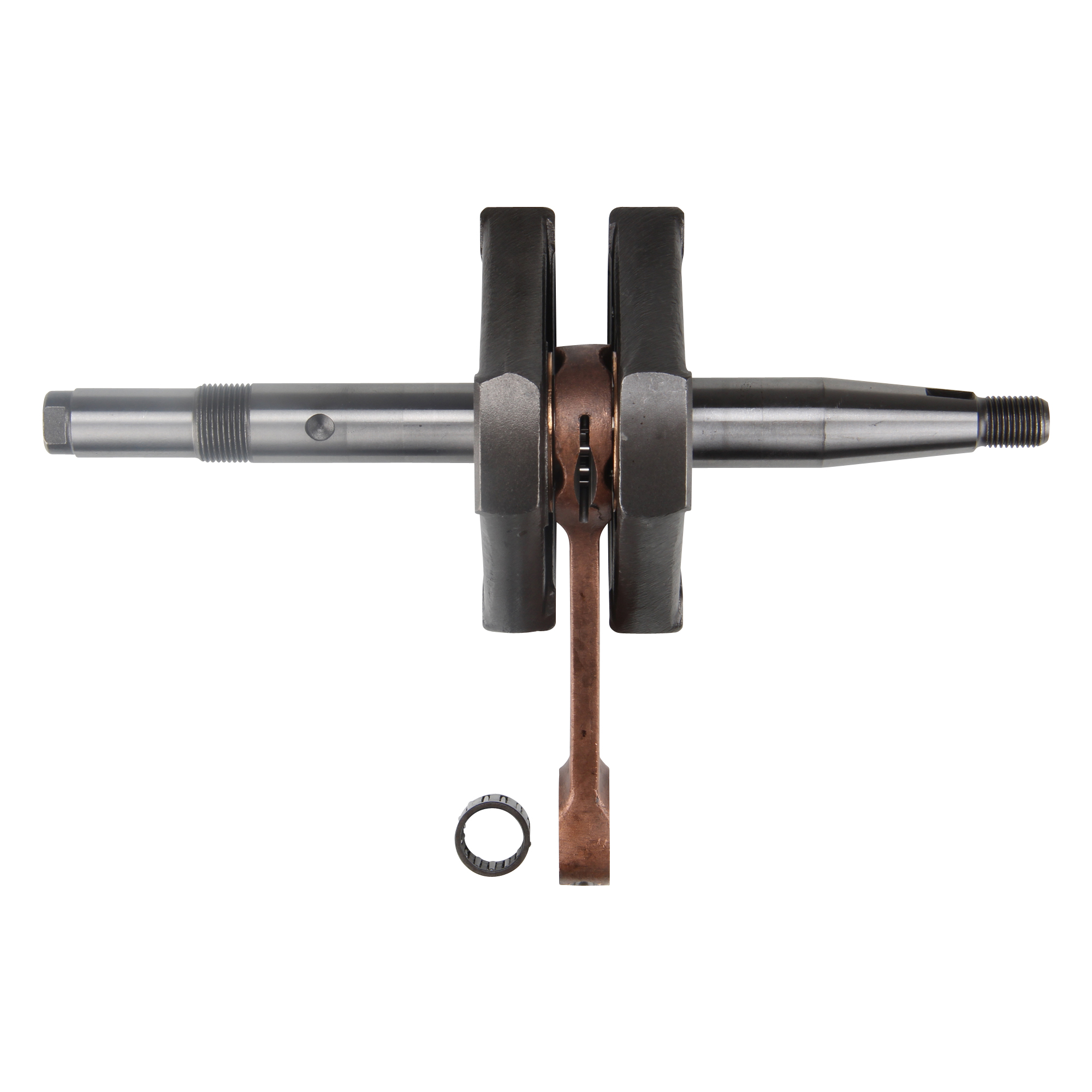

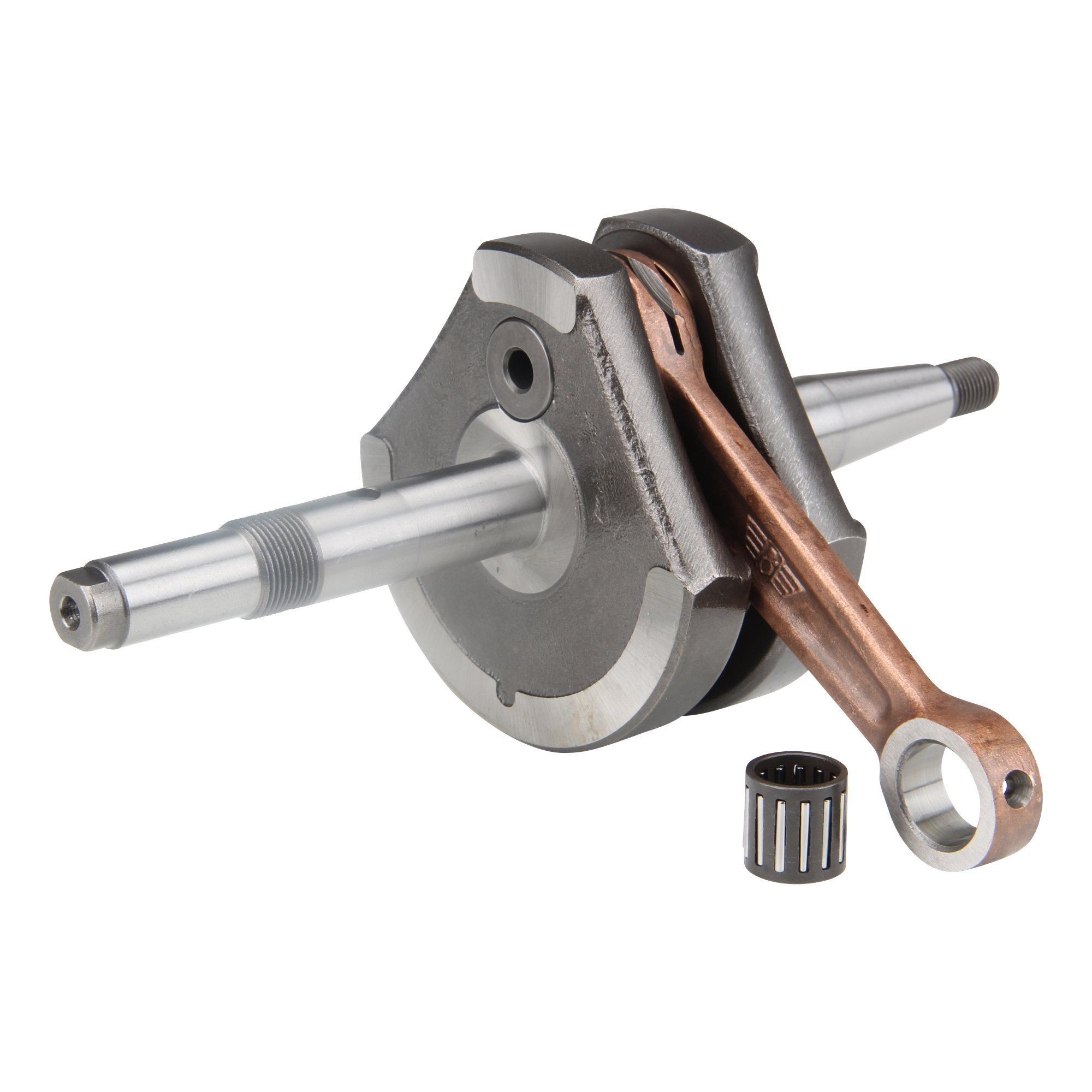

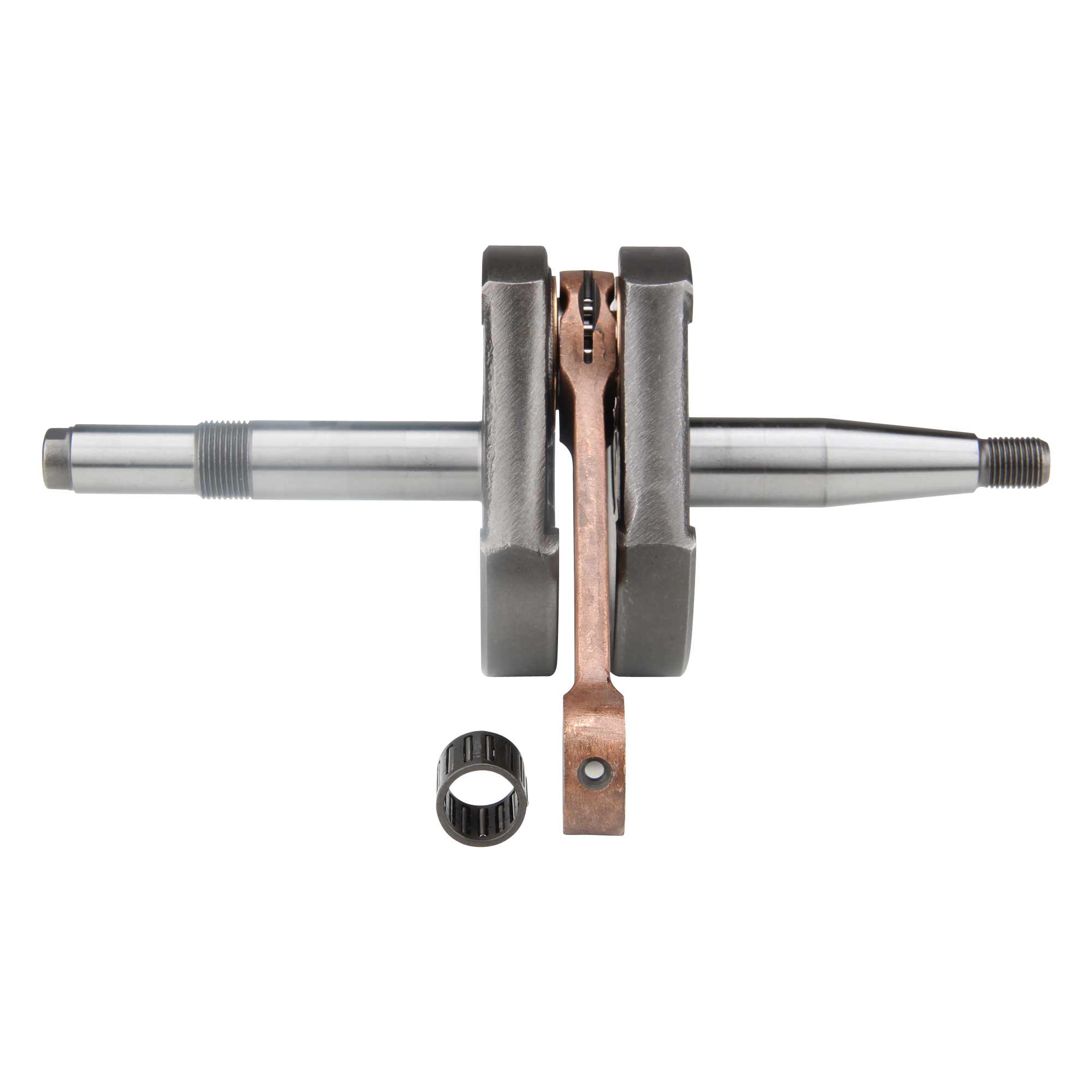

JASIL - Top Racing crankshaft ORIGINAL (85mm connecting rod) for Zündapp 3/4 gear
- Manufacturer: JASIL - Top Racing
- Item no: 6030060
- Manufacturer no.: 6030060
- EAN: 5605822003700
Item data
| Product type: | Crankshaft |
| Country of origin: | Portugal |
| Dimension B (shaft diameter on coupling side): | 15 mm |
| Feature: | 91 mm connecting rod |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 80 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 20.9 mm |
| Dimension J (thread on coupling side): | M15 x 1 right-hand thread |
| Crankshaft stroke: | 41.8 mm |
| Dimension G (width of crank webs): | 38.8 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 278-03.902, 280-03.902, Jasil - Top Racing 6 030 060 |
| GTIN: | 4251048859754 |
| Dimension D (connecting rod length): | 91 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 53.5 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Manufacturer number: | 6030060 |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | 1,180 kg |
| Material: | Cast iron |
| Type: | Original |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Crankshaft bearing 6203-Z/C3 alternator side for Zündapp CS Hai 25 50 Type 448
Crankshaft bearing 6202-Z/C3 clutch side for Zündapp C CS GTS Super Sport 50 Type 517
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Auspuff + Krümmer SET für Zündapp ZD 20 40 Typ 446 / ZX 25 Typ 460 / ZE 40 Typ 460
C 50 Super type 441-01L0 (up to engine no. 3730132)
C 50 Super type 441-01L1 (up to engine no. 3730132)
C 50 Super type 441-05L2 (up to engine no . 3730132)
C 50 Super type 441-05L3 (up to engine no. 3730132)
C 50 Super type 441-05L4 (up to engine no. 3730132)
C 50 Super type 441-05L5 (up to engine no. 3730132)
Sport Combinette type 517-02L1 engine type 278-01L0 (up to engine no. 3702367)
C 50 Sport type 517-02L5 engine type 278-01L0 (up to engine no. 3702367)
C 50 Sport Type 517-02L8 Engine Type 278-01L3 (Engine No. 3702368-3730132)
C 50 Sport Type 517-21L0 Engine Type 278-25L0 (up to Engine No. 3730132)< br />C 50 Super Type 517-05L9 Engine Type 266-50L1 (up to Engine No. 3730132)
C 50 Super Type 517-23L3 Engine Type 266-70L1 (up to Engine No. 3730132)
C 50 Sport Type 517-23L1 Engine Type 266-70L1 (up to Engine No. 3730132)
Super Combinette Type 517-05L2 Engine Type 266-50L1
Super Combinette Type 517-08L0 Engine Type 266-52L0
Super Combinette type 517-08L0 engine type 266-53L0
R 50 type 561-003 engine type 267-020 (up to engine no. 8018079)
RS 50 type 561-004 engine type 276-010 (up to engine no. 8510658)
RS 50 Super type 561-06L0 engine type 276-44L0 (up to engine no. 8510658)
KS 50 Super SL type 517-01L0 engine type 284-01L0
KS 50 Sport Type 517-06L0 Engine Type 284-03L0 (up to Engine No. 4749858)
KS 50 Super Sport Type 517-06L5 Engine Type 284-03L2 (up to Engine No. 4749858)
KS 50 Super Sport Type 517-020LB Engine Type 284-03L (up to Engine No. 4749858)
KS 50 Type 517-06L7 Engine Type 284-03L3 (up to Engine No. 4749858)
KS 50 Sport Type 517-20L0 engine type 284-03L3 (up to engine no. 4749858)
KS 50 Super Sport type 517-20L2 engine type 284-03L3 (up to engine no. 4749858)
KS 50 Super Sport type 517 -20LC engine type 284-03L3 (up to engine no. 4749858)
