Yamaha Aerox crankshaft cylinder engine gasket set engine revision MBK Nitro Aprilia SR 50 Gulliver
- Manufacturer: Citomerx
- Item no: 166154
- Manufacturer no.: 166154
Item data
| Product type: | Crankshaft set |
| Crankshaft bearing set: | 2x Lager 20x47x14mm / WeDi 20x30/37x7mm + 20x42x7mm |
| Country of origin: | China |
| Displacement: | 50 cc |
| Tuning & Styling Part: | No |
| Vintage part: | No |
| Cylinder bores: | 40 mm |
| Surface finish: | Matt |
| Universal compatibility: | No |
| GTIN: | 4251048892027 |
| Bolt diameter: | 10 mm |
| Spark plug: | NGK BR8HS 4322 / Gewinde M14 / entstört 5 kOhm |
| Scope of delivery: | Cylinder head, Crankshaft, Spark plug, Cylinder, Needle roller bearing, Gasket set, Kolbenset, Kurbelwellenlager Satz |
| Crankshaft stub: | 13 mm |
| Piston diameter: | 40 mm |
| Needle roller bearing: | 10x14x13 mm |
| Manufacturer number: | 166154 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Units quantity: | 1 |
| Manufacturer warranty: | 2 years |
| suitable for: | Minarelli LC |
Presto Power Brake Cleaner 600 ml – Powerful Parts Cleaner for Residue-Free Cleanliness
Gel Battery 12V 5Ah for 50ccm Scooter – YB4L-B, YTX4L-BS, YT4L-B – Citomerx
Crankshaft bearing set SKF C4 for Yamaha Aerox Aprilia SR 50 Stage6 Malossi Hebo
Scooter Mirror Set left/right black with E-Number for Keeway, ATU, etc. - Citomerx
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Yamaha Aerox crankshaft + cylinder + gasket set MBK Nitro Aprilia SR 50 Gulliver
Step on the gas now and get it!
DESCRIPTION:
The new throttle grip for your moped is waiting. With polished aluminum sheet metal lever and black handle cover, it fits perfectly with the classic design of the Hercules K 50 SX. The grip comes with nipple holder, solder nipple and screw nipple. In addition, the standard handle has a black housing. Grab it, because the throttle grip is just waiting to be used.
TECHNICAL DATA:
Crankshaft:
- 13mm vario stub
- 110mm shaft length
- reinforced connecting rod & needle bearing eye
needle bearing:
- Inner diameter: 10mm
- Outer diameter: 14mm
- width: 13mm
- for 10mm piston pin
Crankshaft bearing set:
- 2x bearing 20x47x14, type C4
- 1x oil seal 20x30/37x7
- 1x oil seal 20x42x7
Cylinder:
- 50ccm cylinder
- Material: grey cast iron
Cylinder head:
- 50cc cylinder head
- Cast aluminum
Piston:
- 1x 50cc piston
- for 40mm cylinder bore
- 1x 10mm piston pin
- 2x piston rings
- 2x clips
Spark plug:
- Original NGK
- TYPE BR8HS
- Manufacturer No. 4322
- suppressed 5 kOhm
- wrench size SW21 (20,8 mm)
- thread M14 (14,0 mm)
- thread length 12,7 mm
- electrode gap 0,7 mm
- Contact ignition cable M4- thread with screw-on SAE- nut
Engine gasket set:
- 1x vario cover gasket
- 1x cylinder base gasket
- 1x cylinder head gasket
- 1x diaphragm block gasket
- 1x gearbox cover gasket
- 1x alternator gasket

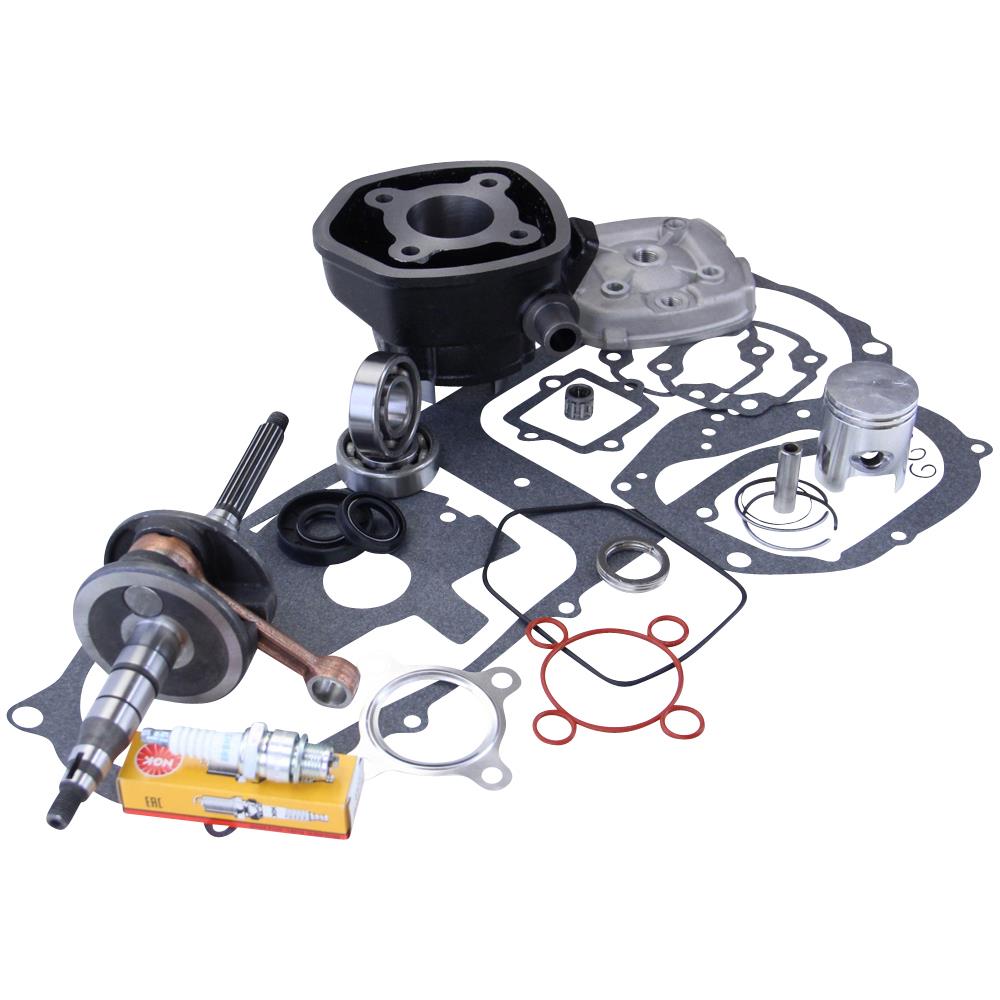

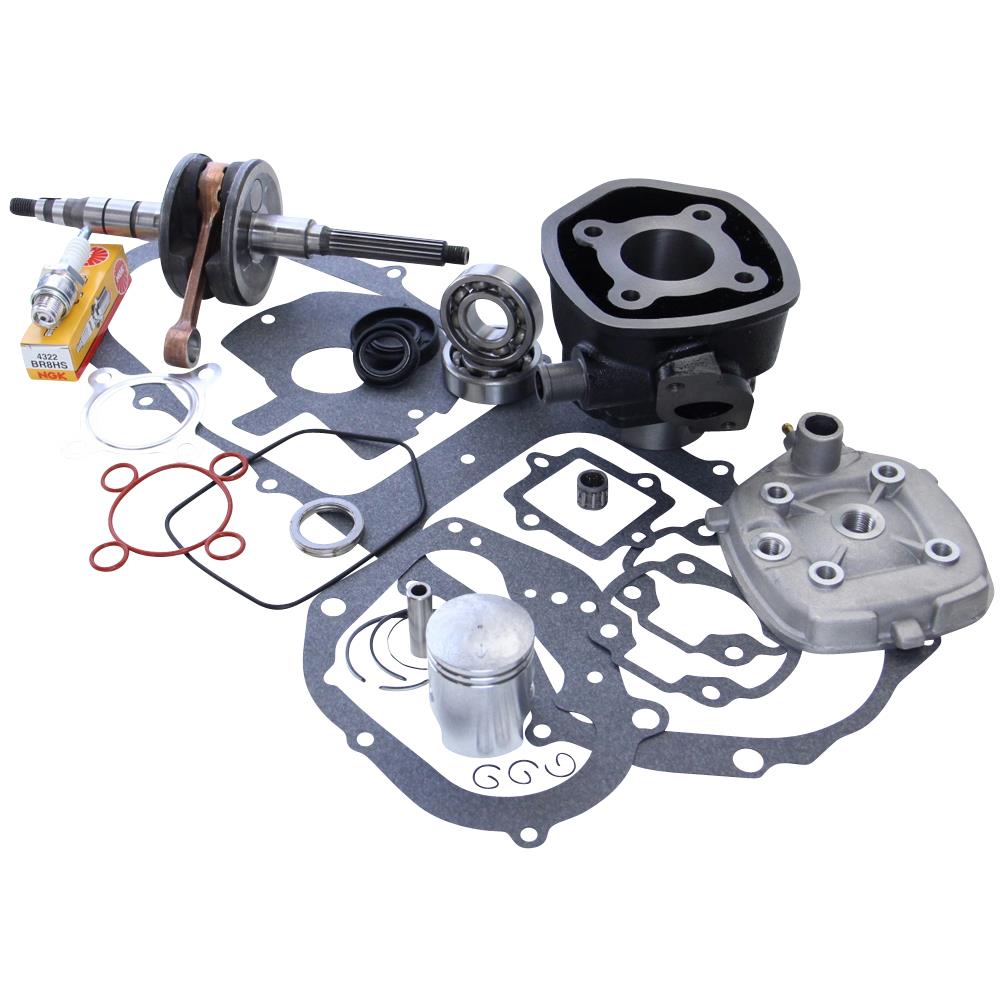

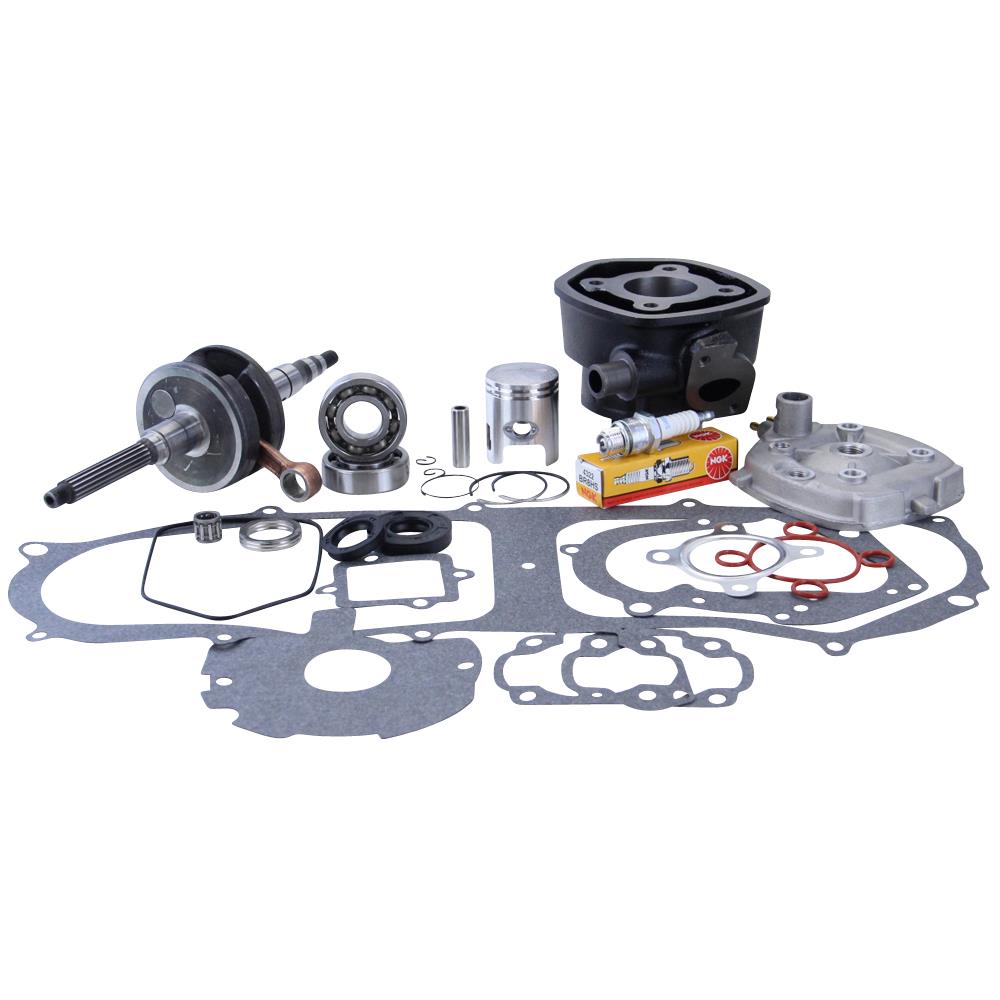

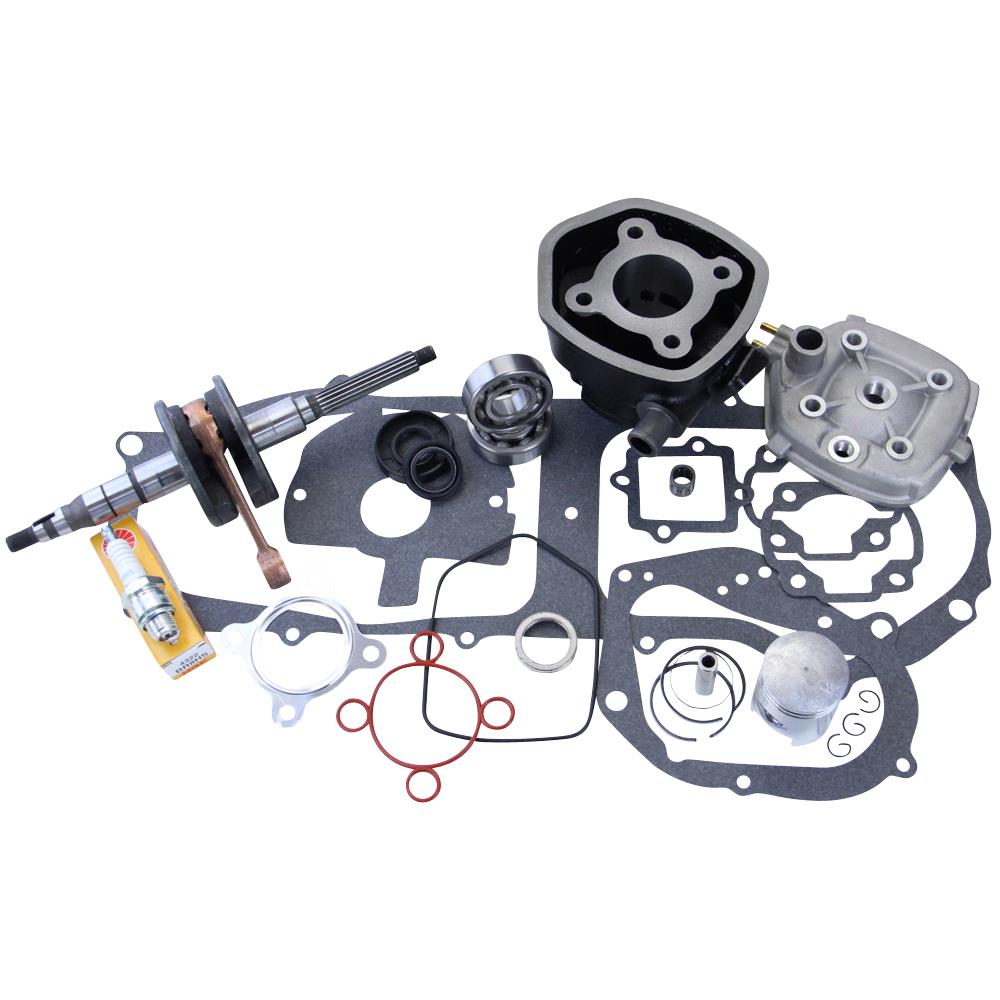

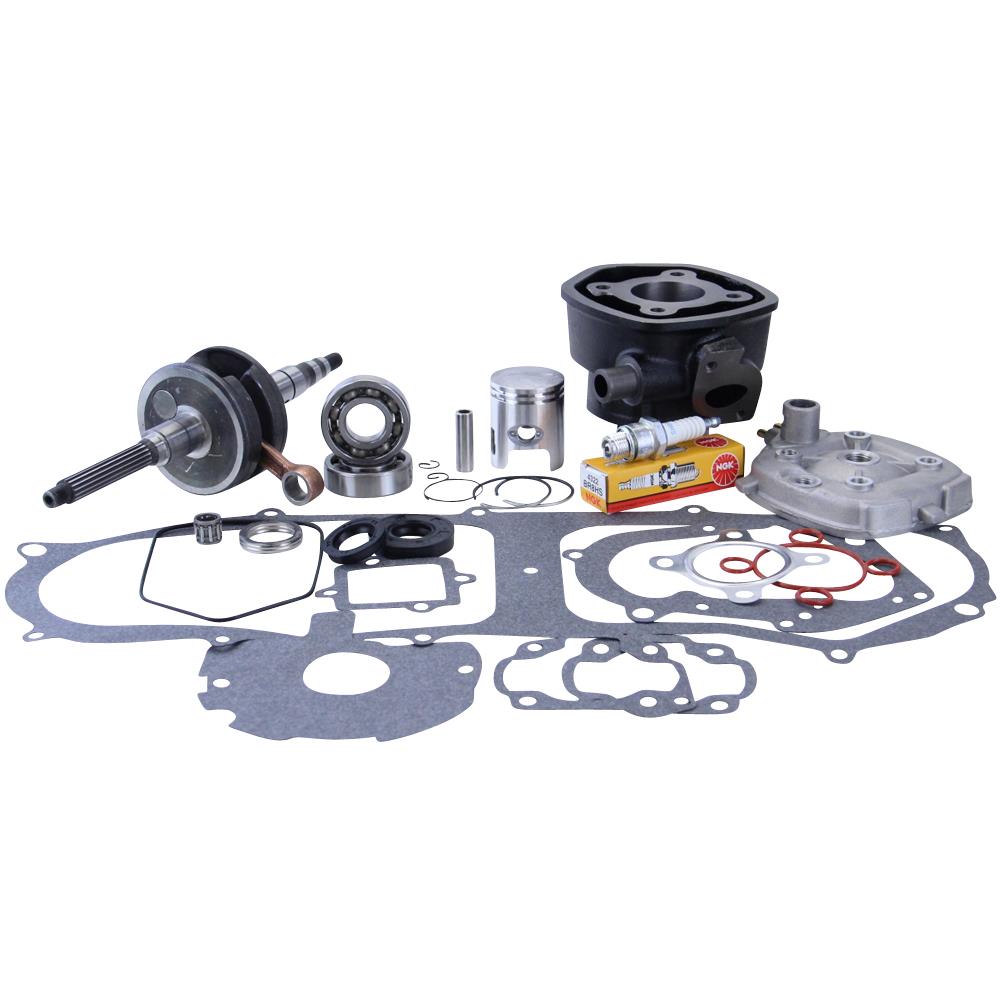

SCOPE OF DELIVERY:
✔ 1x crankshaft
✔ 1x needle bearing
✔ 1x crankshaft bearing set
✔ 1x cylinder
✔ 1x cylinder head
✔ 1x piston
✔ 1x Spark plug
✔ 1x engine gasket set
