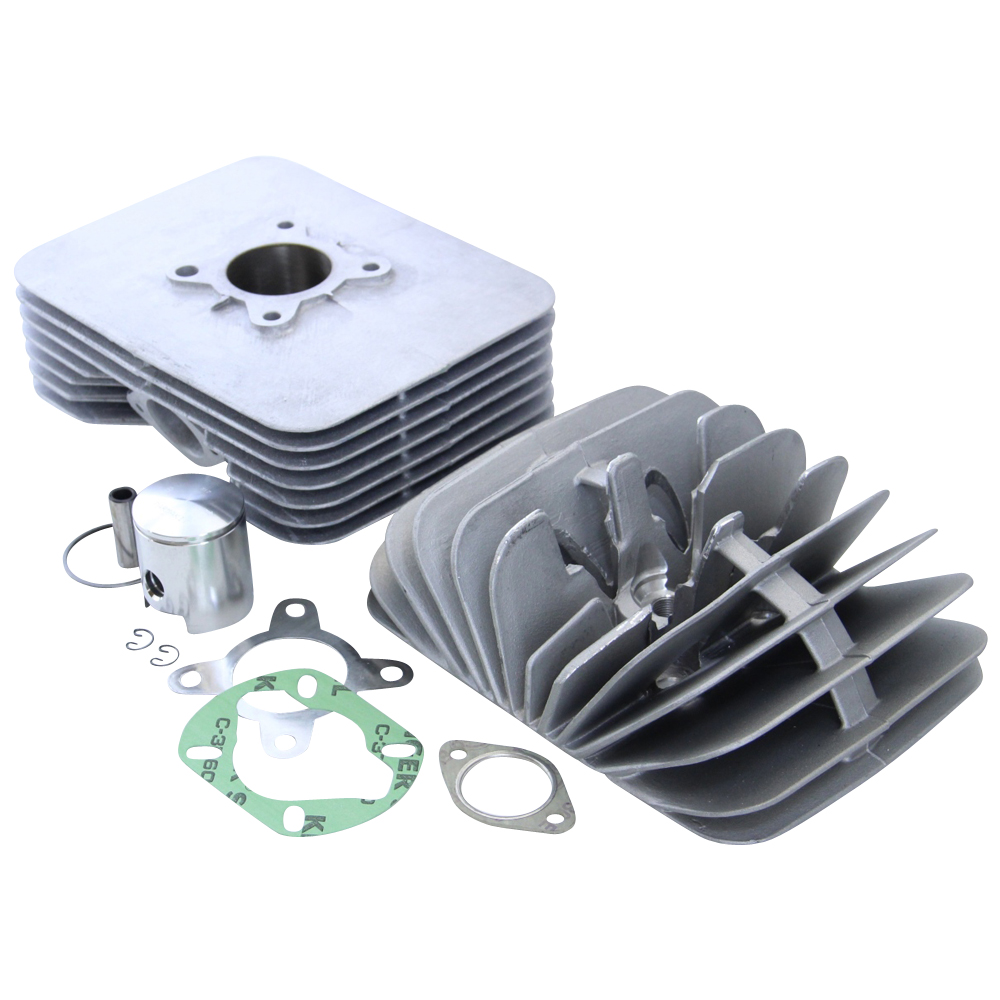

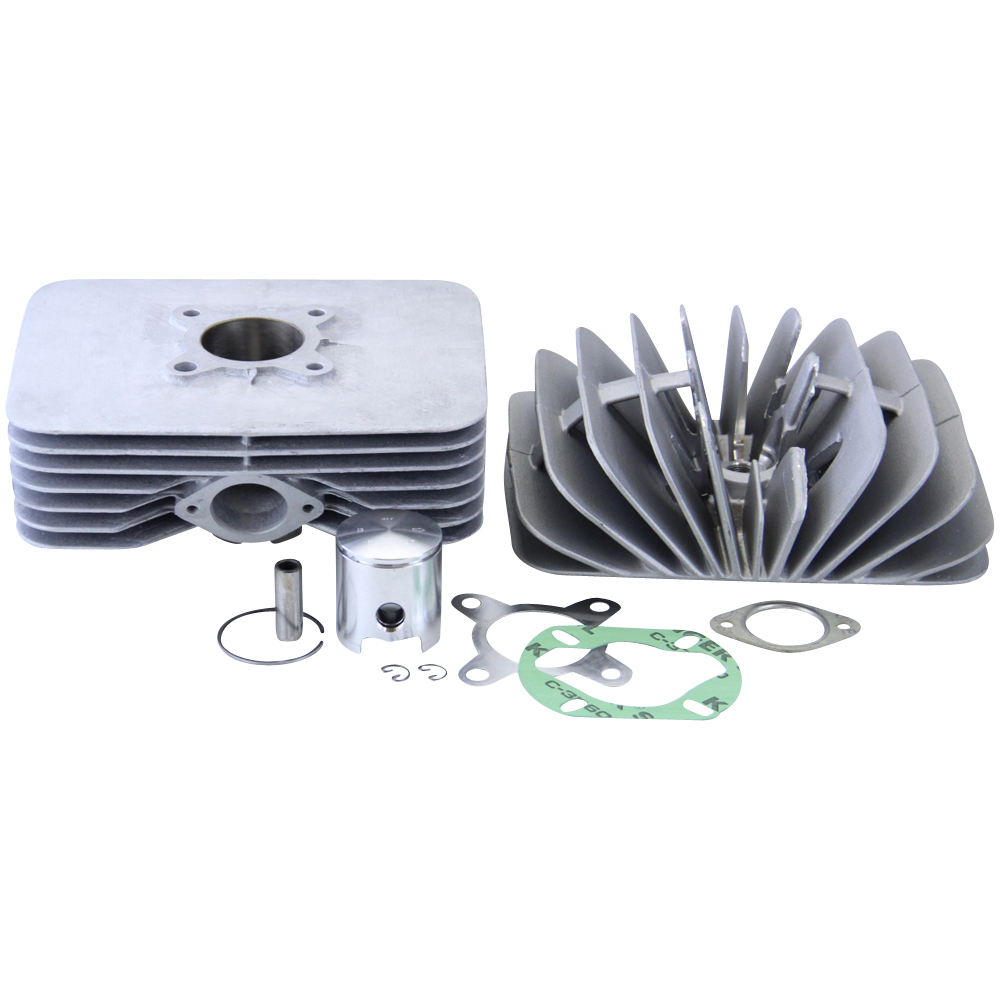

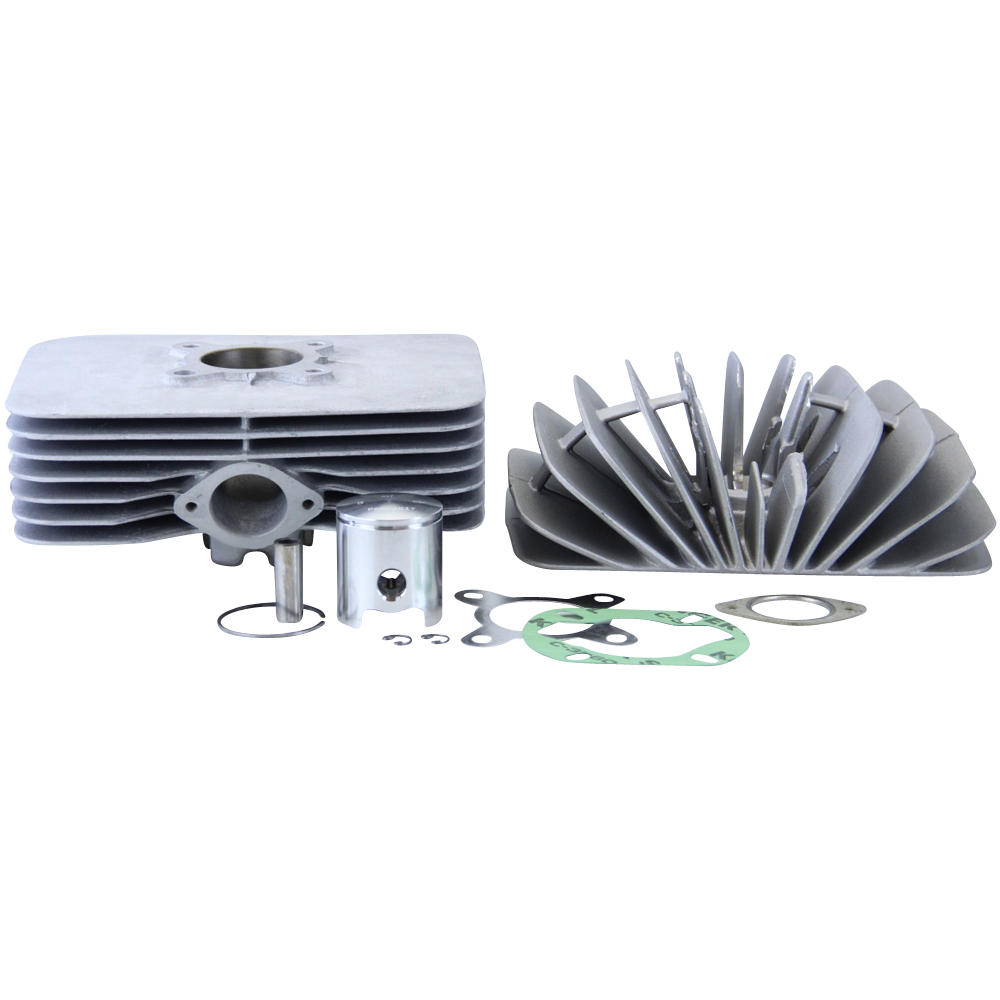

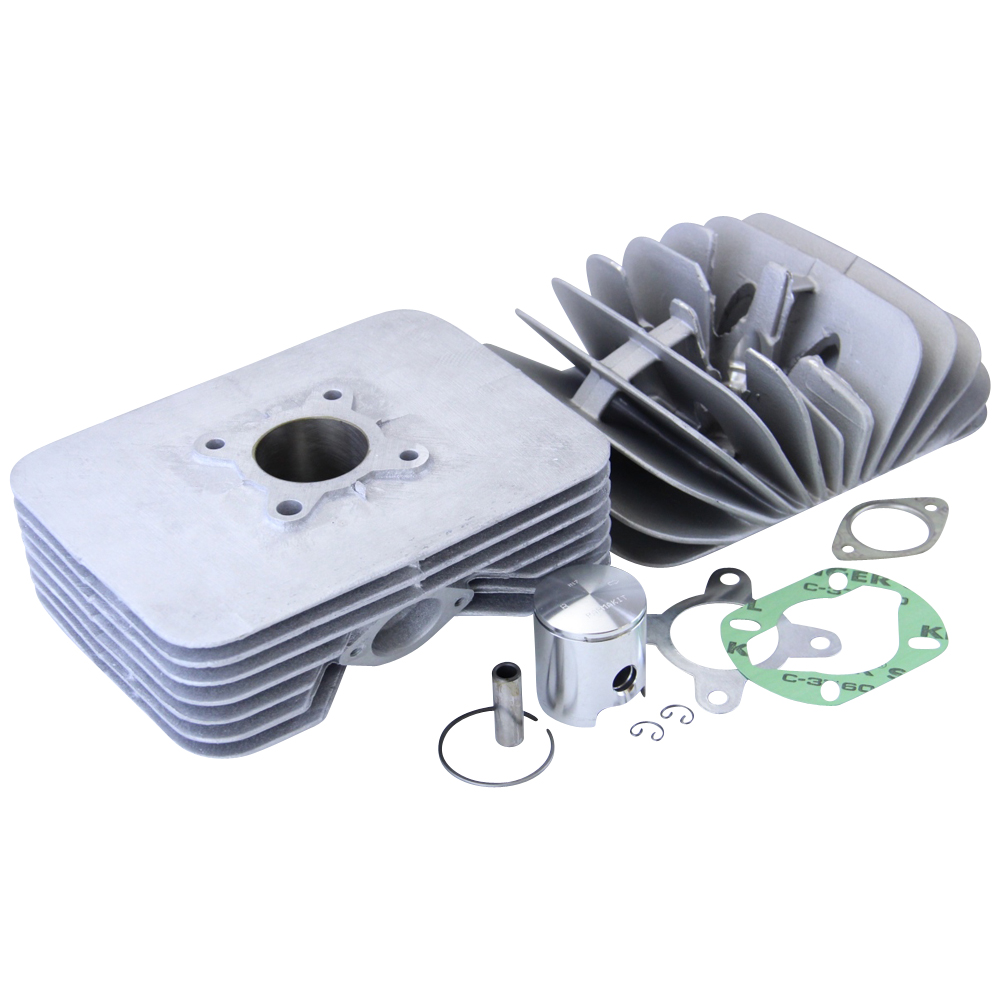

Cylinder set + head 80cc 48mm 12mm Kobo (4 ÜS) KURZ HUB for Hercules K50 RLC Ultra 50 LC / Sachs 50/6 AGS 50SW
- Manufacturer: Parmakit
- Item no: 64445.00
- Manufacturer no.: 64445.00
- EAN: 4060861176005
Item data
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 160 x 210 x 80 mm |
| Piston pin diameter: | 12 mm |
| Displacement: | 80 ccm |
| Cylinder head stud bolt spacing: | 56 x 56 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder head stud diameter: | 8 mm |
| Piston special feature: | With two 4 mm piston window bores / chrome-plated piston ring |
| Surface finish: | Matt |
| Cylinder special feature: | Nikasil-coated piston track |
| Inlet inside dimension: | 22 mm, round (outside 26 mm) |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861176005 |
| Diffuser internal dimension: | 32 mm |
| Cylinder dimensions (LxWxH): | 160 x 210 x 80 mm |
| Outlet Stud distance: | 50 mm |
| Scope of delivery: | Gasket set, Piston, Piston rings, Cylinder head, Cylinder |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 56 x 56 mm |
| Number of overflows: | 4 |
| Comparison number: | Parmakit 64445.00, Piston 64151.02, Piston ring 64152.16, Gasket set 64445.03, Cylinder head 64153.04 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 1 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 64445.00 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head + cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 4.90 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Hercules short stroke |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Cylinder with Piston 70cc 45mm (7.5 HP) Flange Connection for Honda MT MB 50
Cylinder set + head 70ccm 45mm (4 ÜS) for Zündapp Supertherm KS 50 517 530 / GTS 50 529 / CS Hai 50 448
RITO crankshaft RACING (L17 bearing 17mm) (44mm stroke) for Sachs 50/3 50/4 engine
Cylinder set 70ccm 45mm MEMBRANE (4 ÜS) for Zündapp Supertherm KS 517 530 / GTS 529 / CS Hai 448 (Bing)
Crankshaft Full Circle Crankshaft for Kreidler Florett RS Cross 3/4/5-Speed Jasil 190185
RITO crankshaft ORIGINAL (39.70mm stroke) for Hercules K50 RLC Ultra RS LC // Sachs 50 SW 50/6 SW
Cylinder set 50cc 39mm for Zündapp BLOWN COOLED C 50 Sport 441 517 / KS 50 Super 515 516 / R RS 50 561
Cylinder set 70cc 45mm for Zündapp BLOWN COOLED C 50 Sport 441 517 / KS 50 Super 515 516 / R RS 50 561
JASIL crankshaft (14mm Kobo) for Hercules MK 4 50 / Supra 4 Enduro GP // Sachs 501/4 AKF / 506/4 AKF
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Hercules K 50 R LC (1977-1978)
Hercules K 50 R LC (1979-1980)
Hercules K 50 Ultra LC (1977)
Hercules K 50 Ultra LC (1978-1979)
Hercules K 50 Ultra II LC (1979-1980)
Hercules K 50 Ultra III LC (1980)
Hercules Ultra 50 LC (1981)
Hercules Ultra 50 LC (1982-1983)
Hercules Ultra RS 50 LC (1982-1983)
Sachs 50/6 A GS
Sachs 50SW
