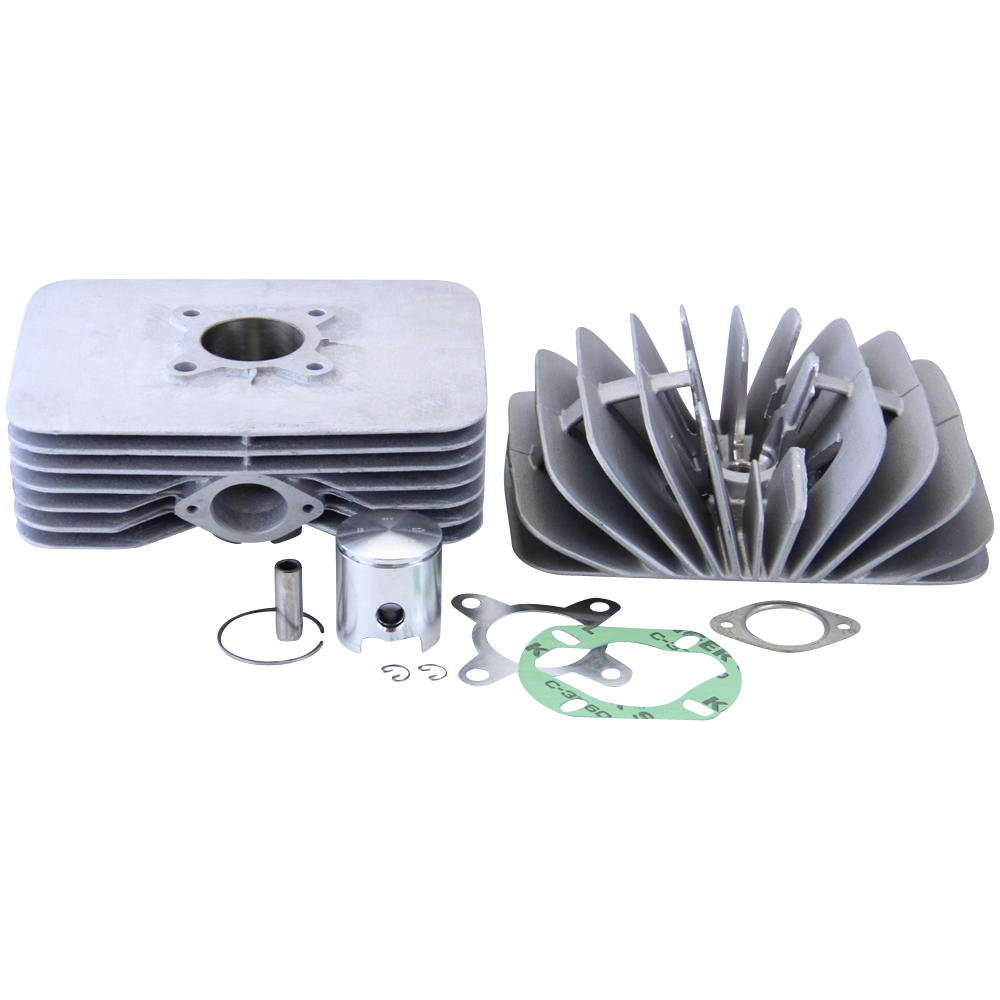

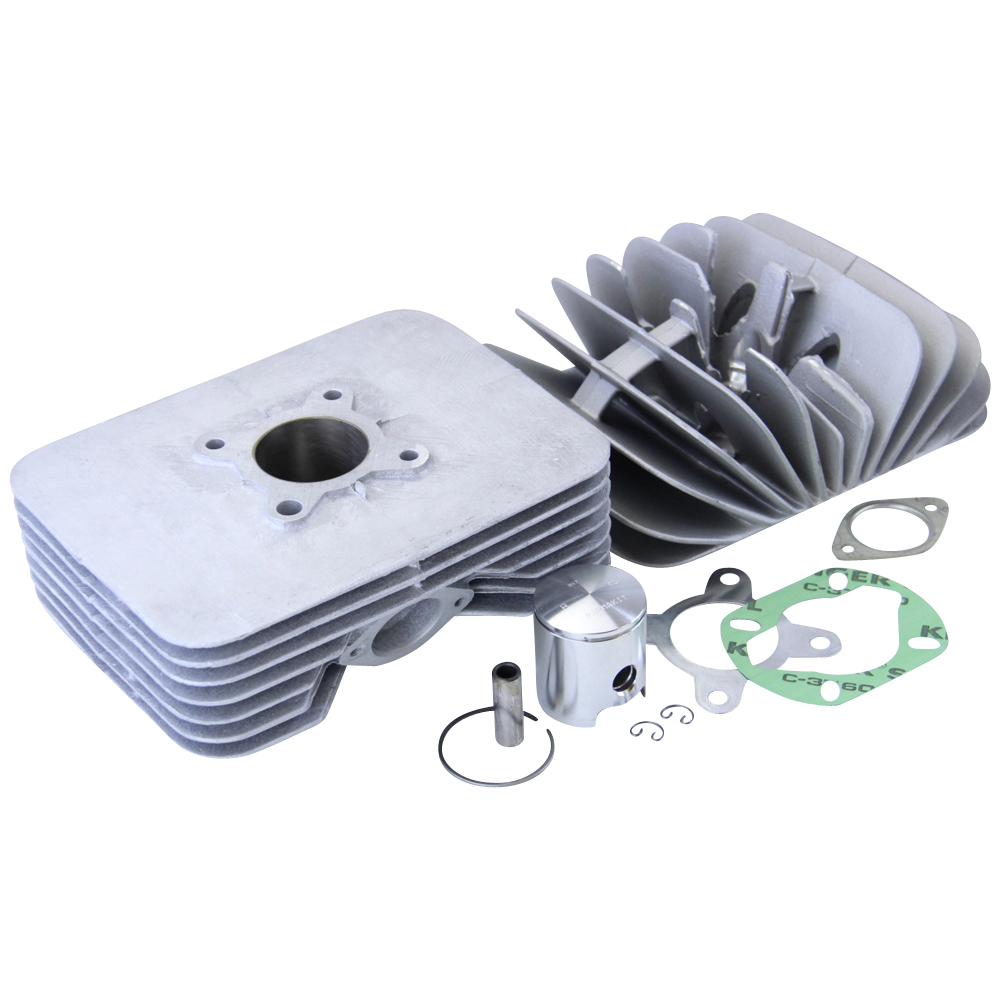

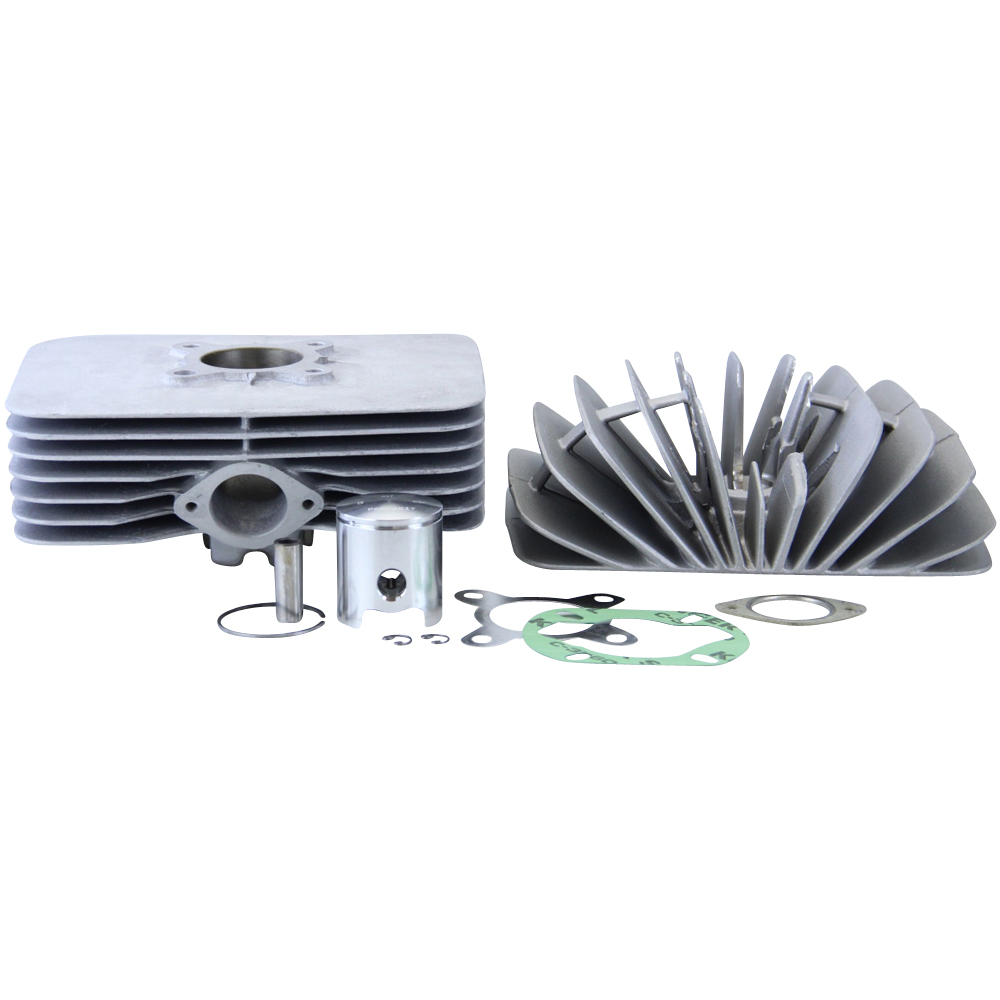

Cylinder set + head 50cc 38mm 12mm Kobo (3ÜS) LANG HUB for Hercules K MK SB Supra KX XE Sachs 50S 501 506 50/5
- Manufacturer: Parmakit
- Item no: 64160.00
- Manufacturer no.: 64160.00
- EAN: 4060861176098
Item data
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 160 x 210 x 80 mm |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Cylinder head stud bolt spacing: | 56 x 56 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | L-ring |
| Vintage part: | Yes |
| Cylinder head stud diameter: | 8 mm |
| Piston special feature: | With two 4 mm piston window bores / chrome-plated piston ring |
| Surface finish: | Matt |
| Cylinder special feature: | Nikasil-coated piston track |
| Inlet inside dimension: | 22 mm, round (outside 26 mm) |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861176098 |
| Diffuser internal dimension: | 32 mm |
| Cylinder dimensions (LxWxH): | 160 x 210 x 80 mm |
| Outlet Stud distance: | 50 mm |
| Scope of delivery: | Gasket set, Piston, Piston rings, Cylinder head, Cylinder |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 56 x 56 mm |
| Number of overflows: | 3 |
| Comparison number: | Gasket set 64265.03, Piston 64150.02, Piston ring 21102.16, Parmakit 64160.00, Cylinder head 64150.04 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 1 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 64160.00 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head + cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 4.85 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Hercules long-stroke |
OR
£259.23
*
Content:
1 piece
Prices plus VAT plus shipping costs
Free shipping!
In stock! Delivery time 1-3 working days
Customers also bought
JASIL crankshaft (12mm Kobo) for Hercules Prima GT GX Pronto Presto // Sachs 506/3 B BY
Content
1 piece
£81.32
*
Similar articles
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Content
1 piece
£47.47
*
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Content
1 piece
£17.22
*
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Content
1 piece
£20.78
*
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Content
1 piece
£39.54
*
Customers have also viewed
FREE SHIPPING
2x Cast Wheel (Star Wheel) white 1.35x17 inch for Puch Maxi - Citomerx
Content
2 piece
(£52.19 * / 1 piece)
£104.37
*
Steering head bearing set / headset for Hercules Prima M 2 3 4 5 GT GX Optima Jogging Hobby Rider HR
Content
1 piece
£11.45
*
2x Tires Tire Set 2.75-17 incl. 2x Tube for Kreidler Hercules Prima GT 25 50 Mofa M by Citomerx
Content
1 piece
£23.70
*
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport... more
Product information "Cylinder set + head 50cc 38mm 12mm Kobo (3ÜS) LANG HUB for Hercules K MK SB Supra KX XE Sachs 50S 501 506 50/5"
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1961-1962)
Hercules K 50 (1963-1964)
Hercules K 50 (1964-1965)
Hercules K 50 (1968-1970)
Hercules K 50 RX (1969-1970)
Hercules K 50 SX (1969-1970)
Hercules K 50 Sprint (1970)
Hercules K 50 Sprint (1969-1970)
Hercules K 50 Sprint (1971-1972)
Hercules K 50 Sprint (1973-1974)
Hercules K 50 Sprint (1975-1977)
Hercules RT 159 Jet (1973)
Hercules SB 1 Sport Bike (1972-1975)
Hercules SB 5 Sport Bike (1975-1979)
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (09/1976-1977)
Hercules K 50 RL (1974-08/1976)
Hercules K 50 RL (1978-1980)
Hercules K 50 RX (1971-1972)
Hercules K 50 SE (1973-1974)
Hercules K 50 SL (09/1976-)
Hercules K 50 SL (1974-08/1976)
Hercules K 50 SX (1971-1972)
Hercules K 50 Sprint (1977-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules RT 159 (1973)
Hercules MK 1 S (1977-1979)
Hercules MK 1 S (1980-1984)
Hercules MK 1 (1970-1976)
Hercules MK 2 S (09/1976-1979)
Hercules MK 2 S (1980-1984)
Hercules MK 2 (1970-08/1976)
Hercules MK 3 M (1973-1974)
Hercules MK 3 X (1970-1972)
Hercules MK 4 M (1973-1974)
Hercules MK 4 X (1970-1972)
Hercules MK 4 (1966-1970)
Hercules MK 50 Super 4 (1966-1968)
Hercules MK 50/1 (1966-1970)
Hercules SB 2 Sport Bike (1972-1975)
Hercules SB 3 Sport Bike (1975-1984)
Hercules Supra 4 Enduro (1979-1980)
Hercules Supra 4 GP (1979-1980)
Hercules Prima GT (1985-1995)
Hercules Prima GX (1982-1985)
Hercules Prima PRESTO (1981-1984)
Hercules Prima PRONTO (1981-1984)
Hercules Supra 4 Enduro (1981-1985)
Hercules Supra 4 GP (1981-1983)
Hercules KX-5 without fairing (1984-1995)
Hercules KX-5 fairing (1984-1995)
Hercules XE-5 Enduro (1984-1989)
Sachs 50S
Sachs 50SA
Sachs 501
Sachs 506
Sachs 50/5 AKF
