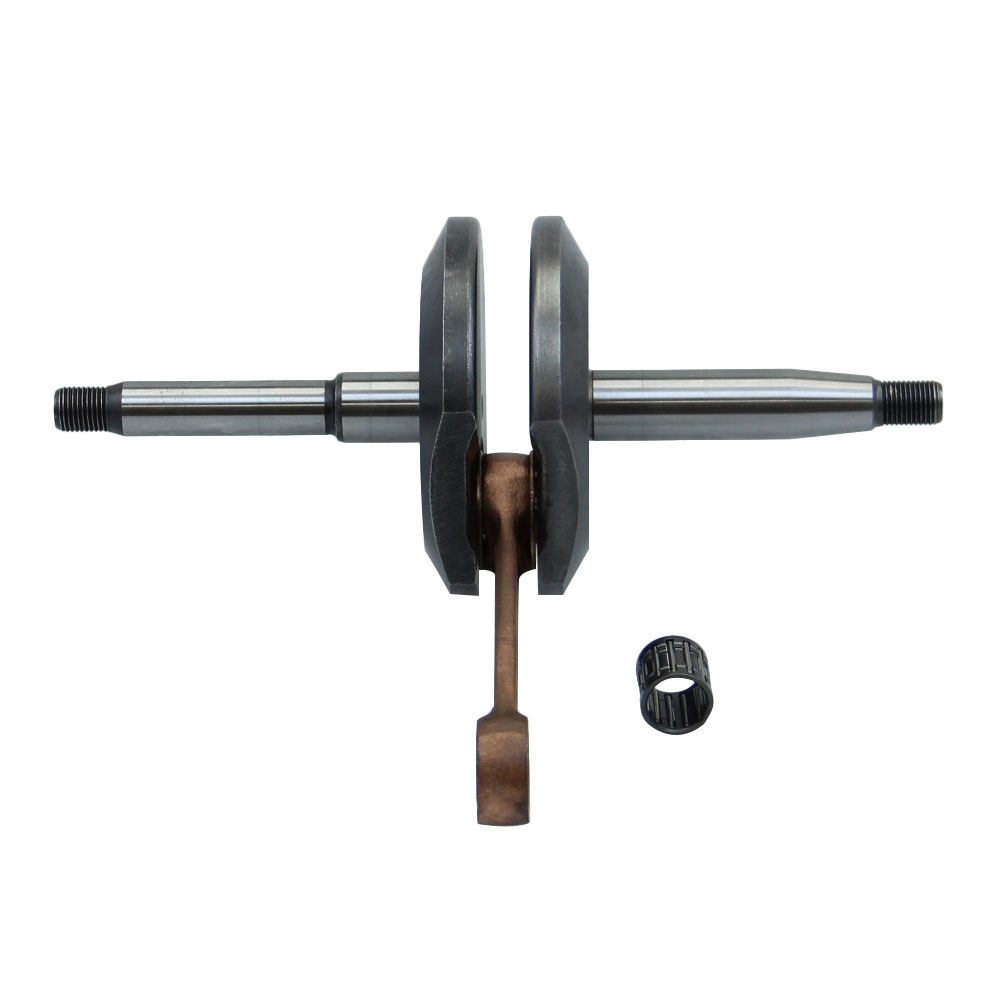

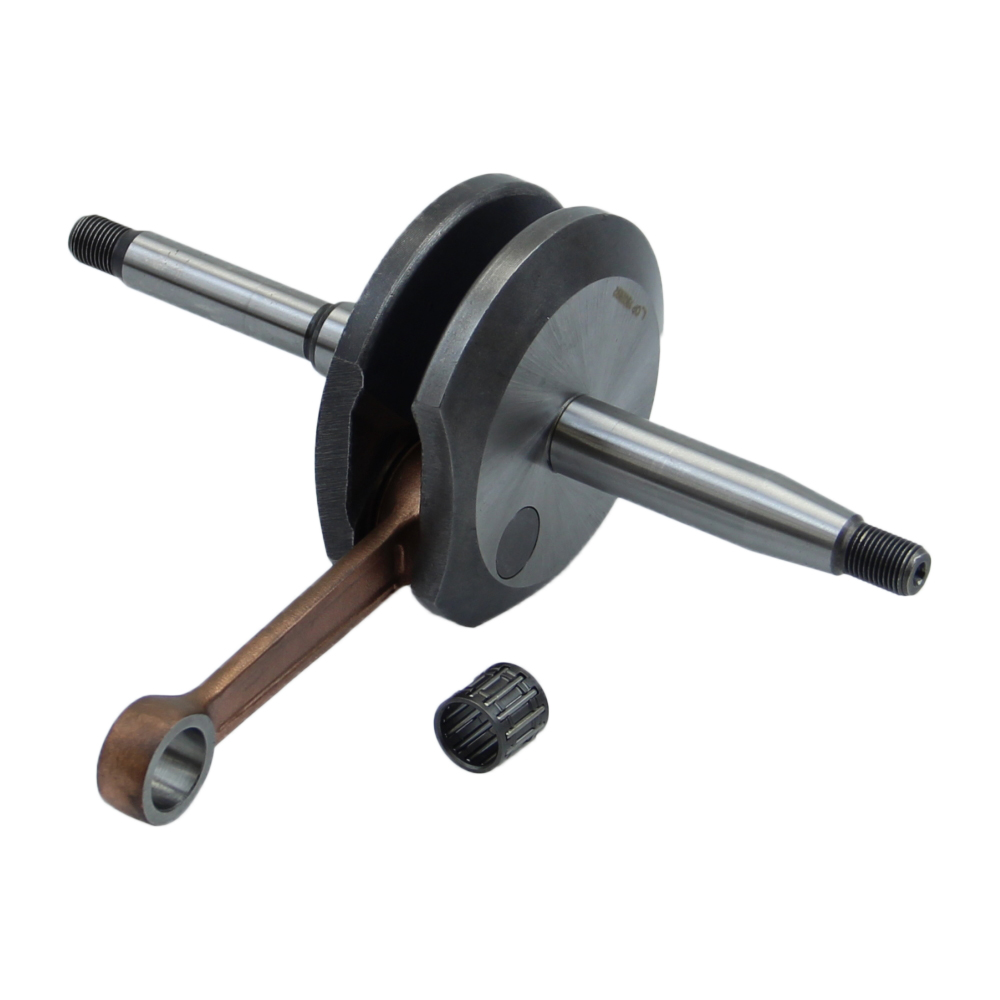

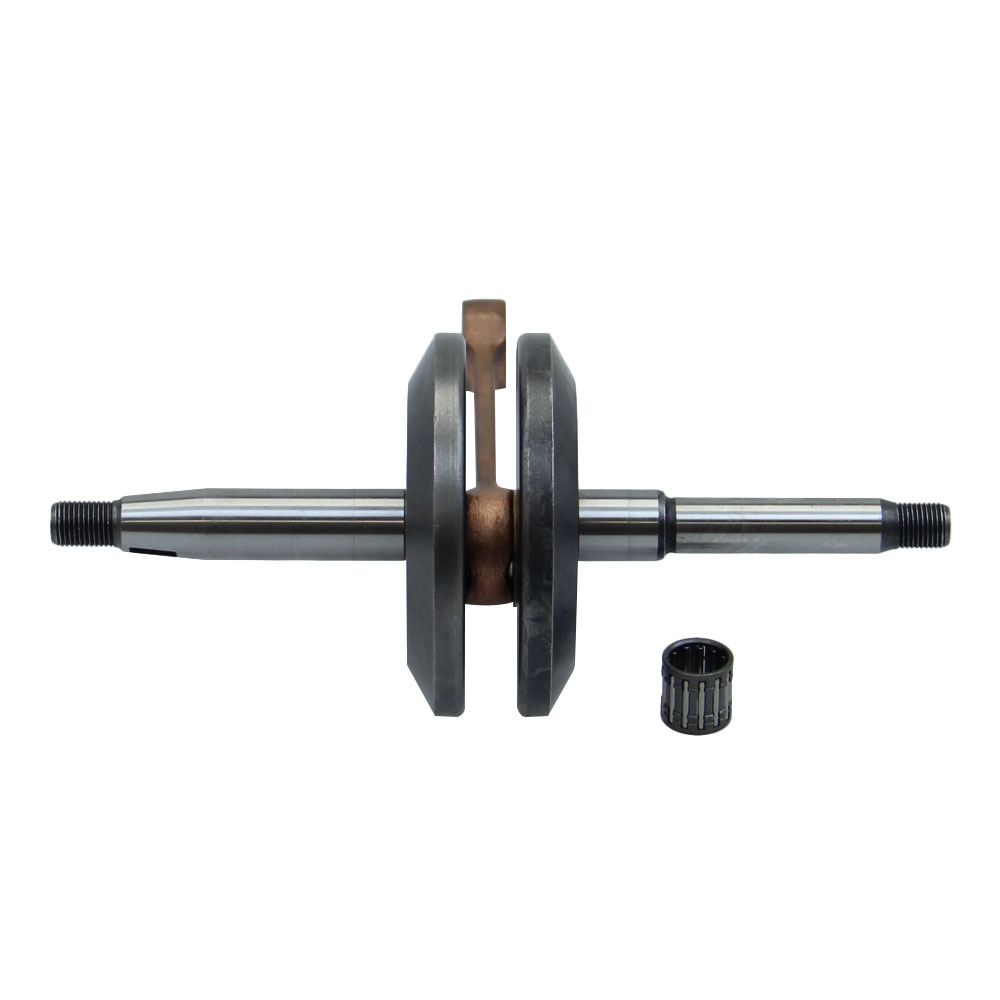

Crankshaft ORIGINAL for Sachs 505/1 505/2 505/3 engine
- Manufacturer: Citomerx
- Item no: 190157
- Manufacturer no.: 190157
- EAN: 4060861064524
Item data
| Product type: | Crankshaft |
| Country of origin: | China |

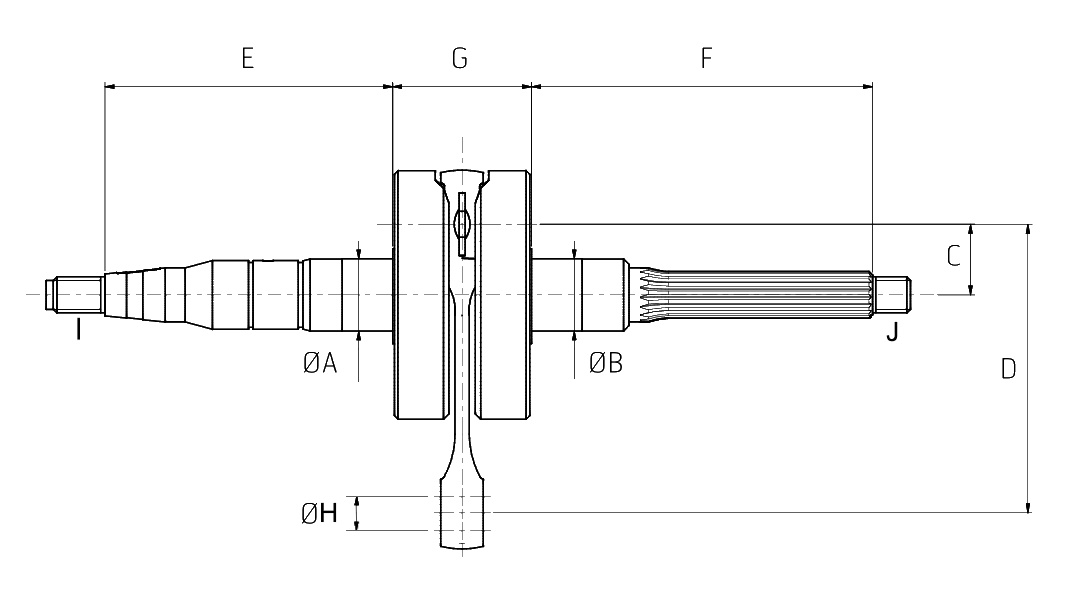

| Dimension B (shaft diameter on coupling side): | 15 mm |
| Feature: | 44 mm stroke |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 65.6 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 22 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 44 mm |
| Dimension G (width of crank webs): | 34.4 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 0288 114 000 / 0288114000, 0288 114 625 / 0288114625, 0288 114 002 / 0288114002, 0288 114 005 / 0288114005, 0288 114 008 / 0288114008, 0288 114 011 / 0288114011, 0288 114 405 / 0288114405 |
| GTIN: | 4060861064524 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 59.4 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 190157 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Standard |
