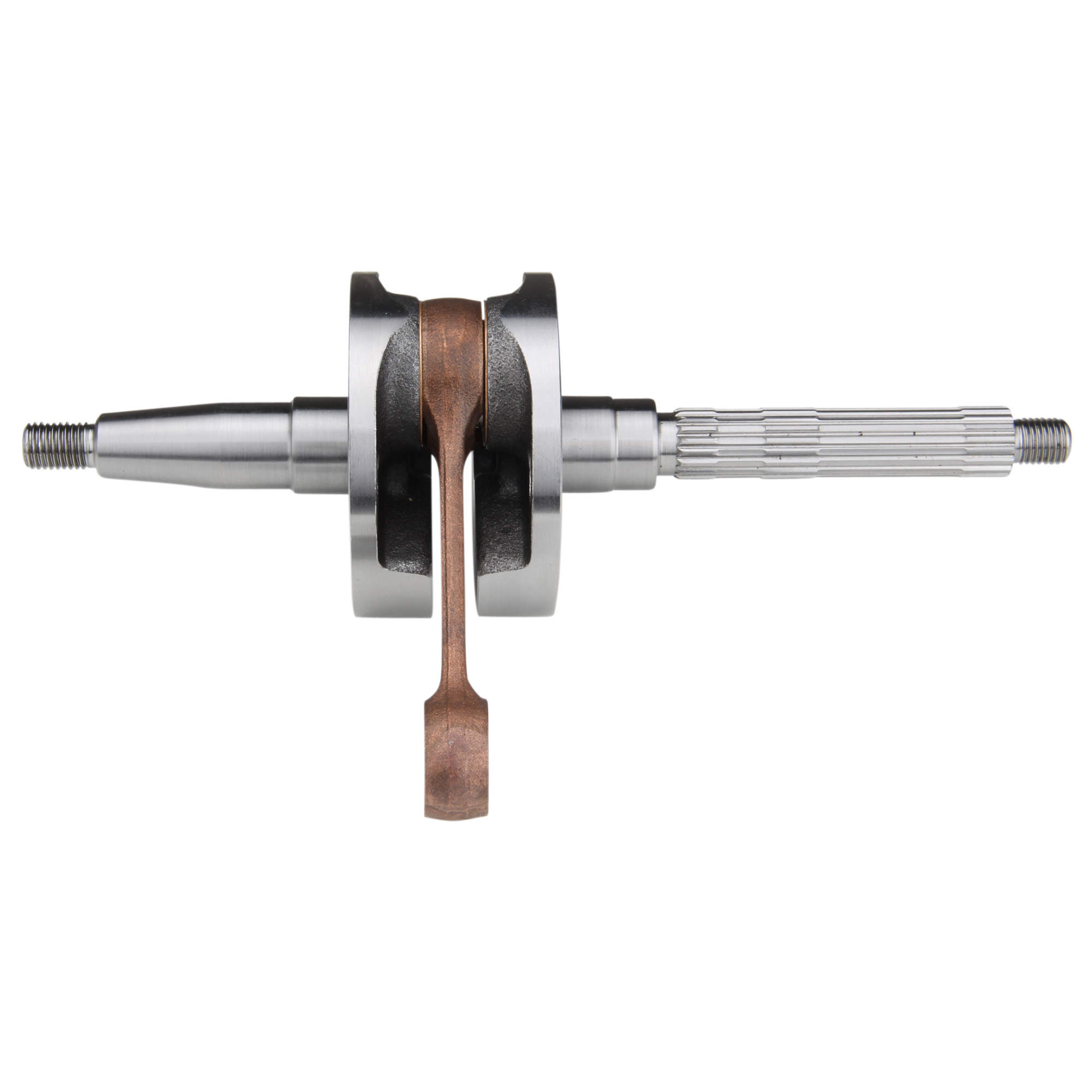

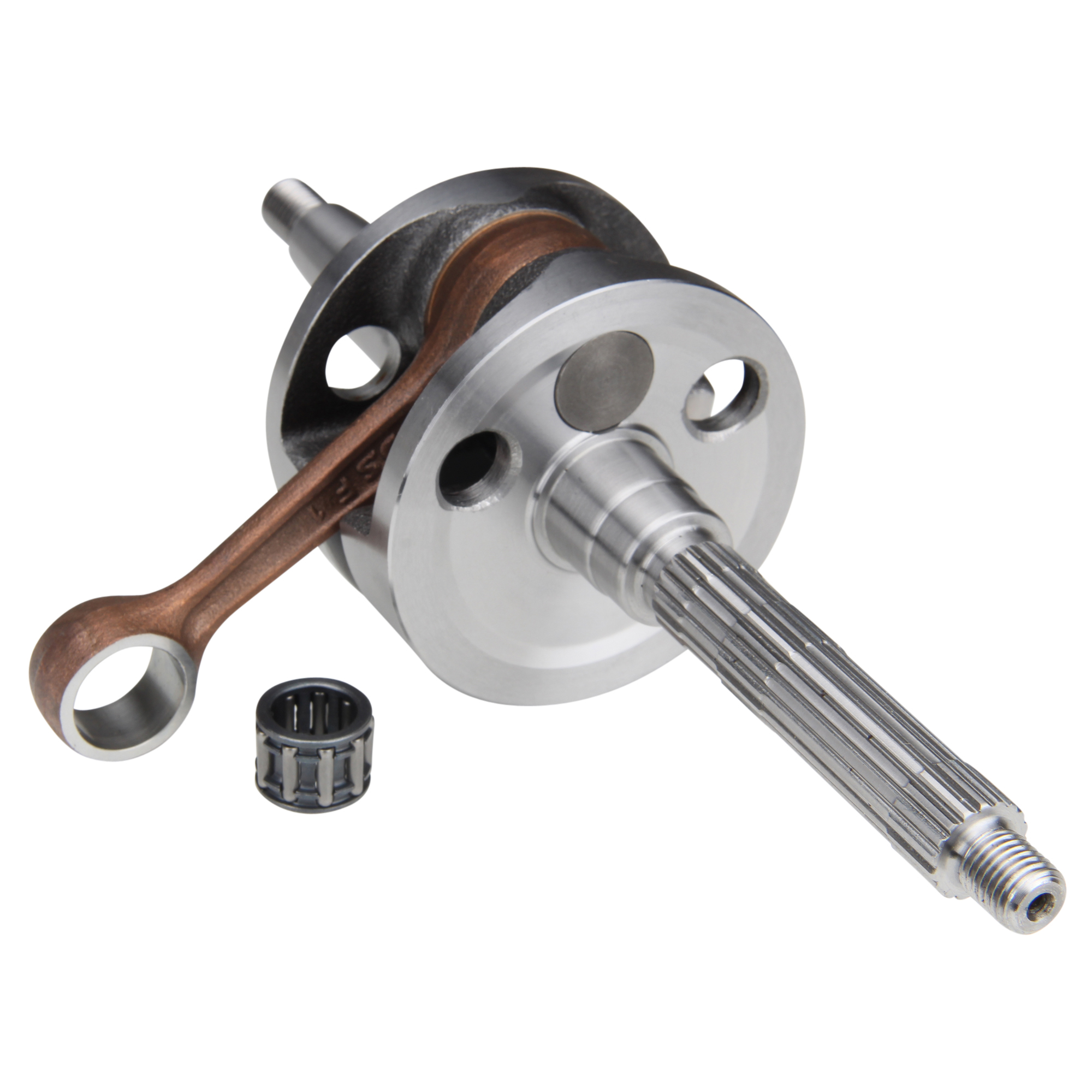

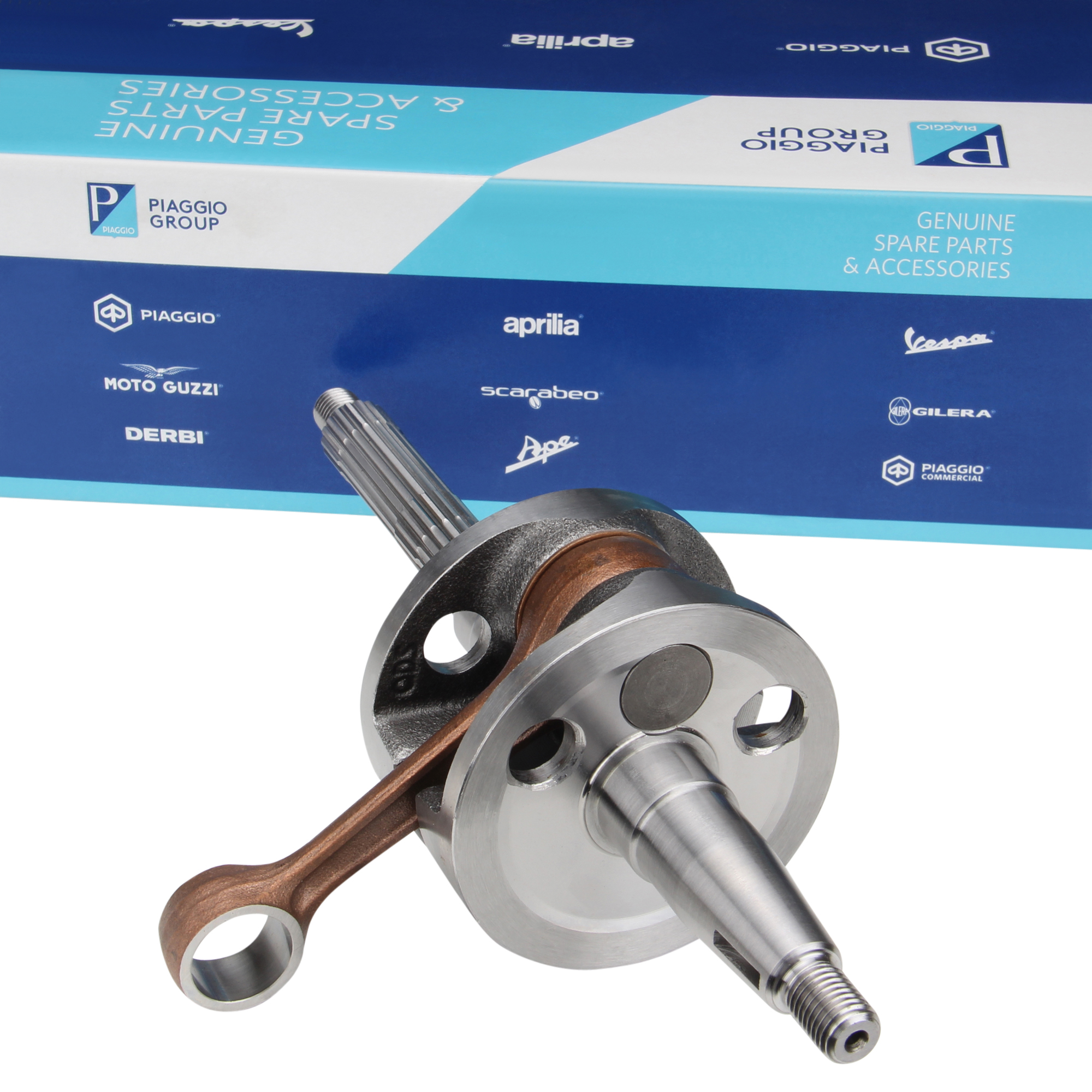

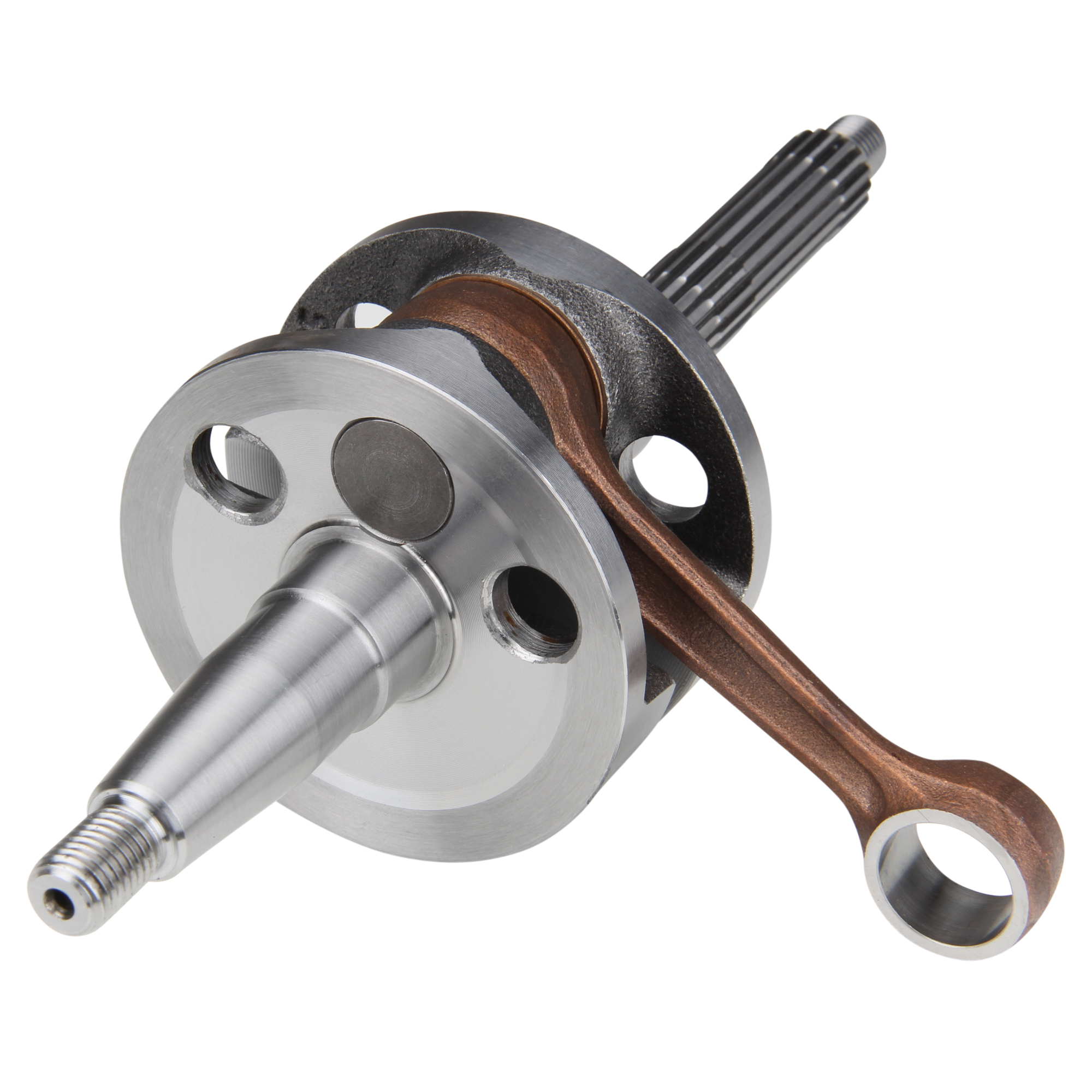

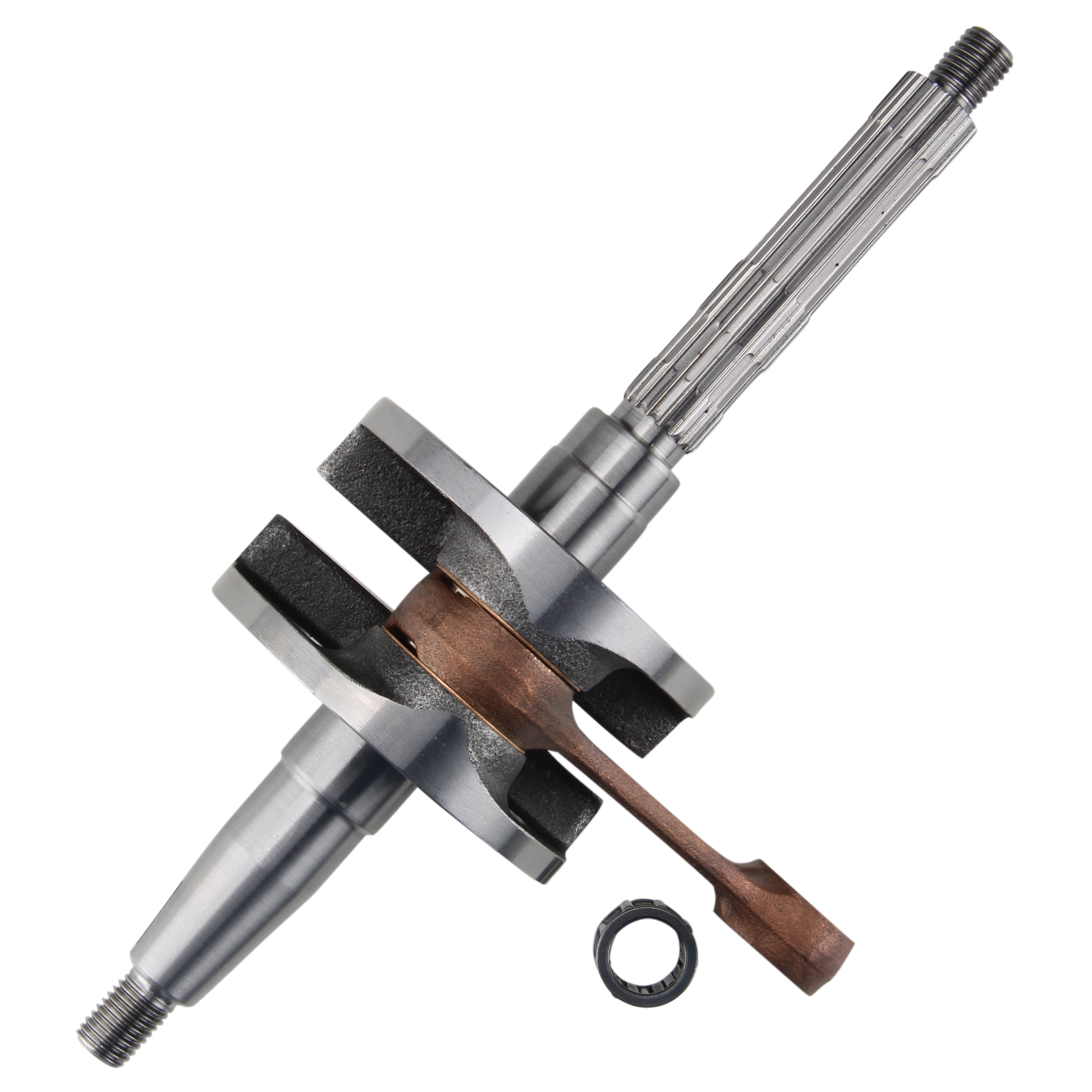

Crankshaft 50cc for Aprilia SR Mojito Scarabeo / Gilera / Piaggio Fly Free Liberty NRG Sfera TPH Zip / Vespa ET2 LX S
- Manufacturer: Piaggio (Original OE)
- Item no: 4316255
- Manufacturer no.: 4316255
- EAN: 4060861193842
Item data
| Product type: | Crankshaft |
| Dimension B (shaft diameter on coupling side): | 20 mm |
| Feature: | 80 mm connecting rod |
| Crankshaft type: | Full cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 94 mm |
| Tuning & Styling Part: | No |
| Vintage part: | No |

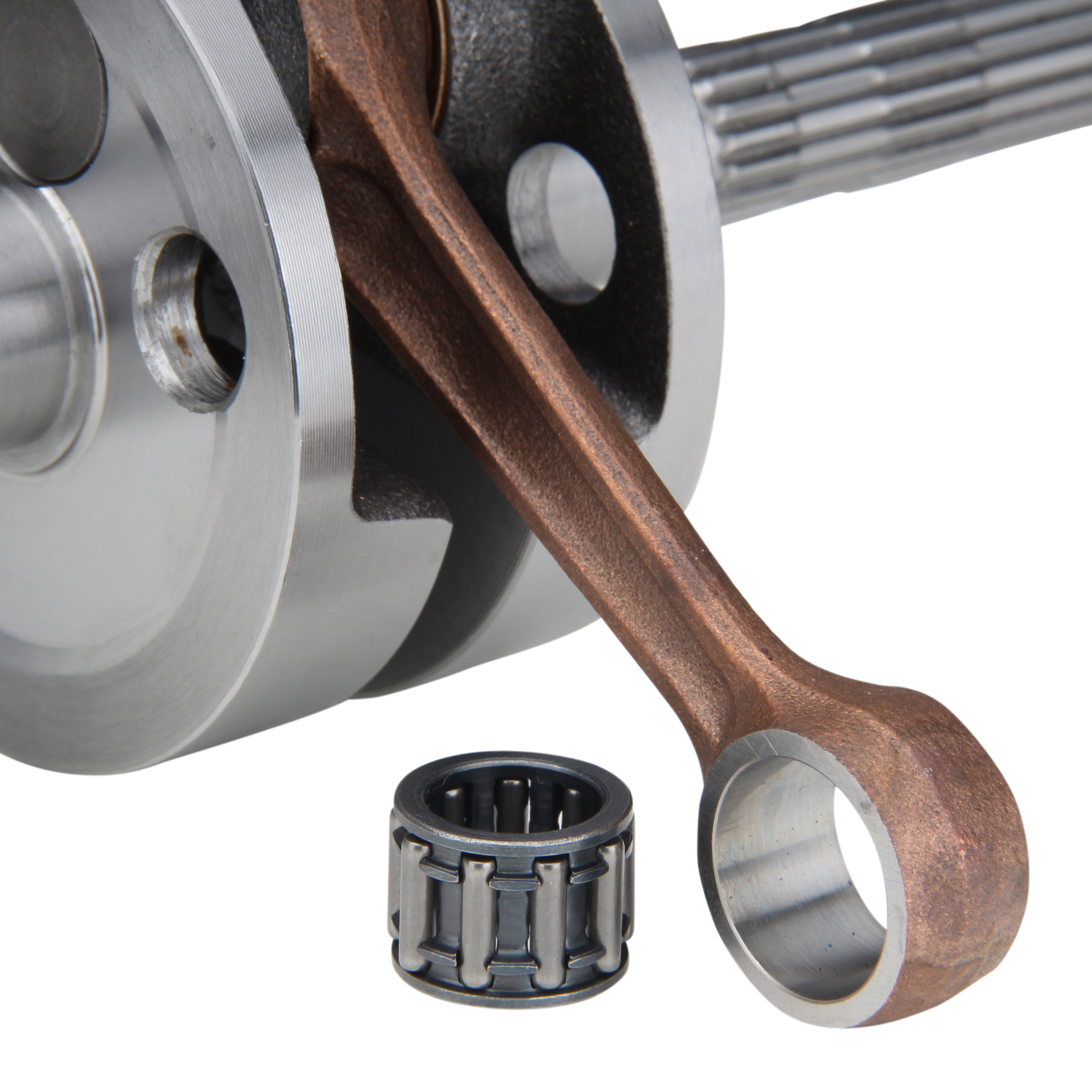

| Dimensions needle bearing piston pin: | 12x17x13 mm |
| Dimension C (stroke pin offset = half stroke): | 19.65 mm |
| Dimension J (thread on coupling side): | M10 x 1.25 right-hand thread |
| Crankshaft stroke: | 39.3 mm |
| Dimension G (width of crank webs): | 40 mm |
| Surface finish: | Matt |
| Special feature (crankshaft stub on clutch side): | 15 mm toothing (180 teeth) |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 4316255 |
| GTIN: | 4060861193842 |
| Dimension D (connecting rod length): | 80 mm |
| Connecting rod length: | original |
| Dimension H (top diameter of connecting rod eye): | 17 mm |
| Dimension A (shaft diameter on alternator side): | 20 mm |
| Original packaging can be: | be blue, white or air cushion |
| Scope of delivery: | Crankshaft + needle bearing |
| Stroke: | original |
| Comparison number: | Piaggio 4316255 |
| Dimension E (length of crankshaft stub on alternator side): | 51 mm |
| Dimension I (thread on alternator side): | M10 x 1.25 right-hand thread |
| Color: | Grey |
| Piston pin: | 12mm |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 4316255 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | 1,000 kg |
| Material: | Cast iron |
| Type: | Original |
