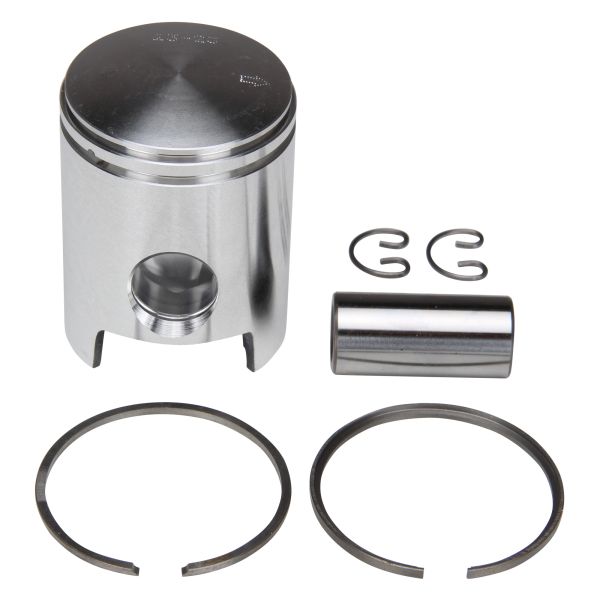

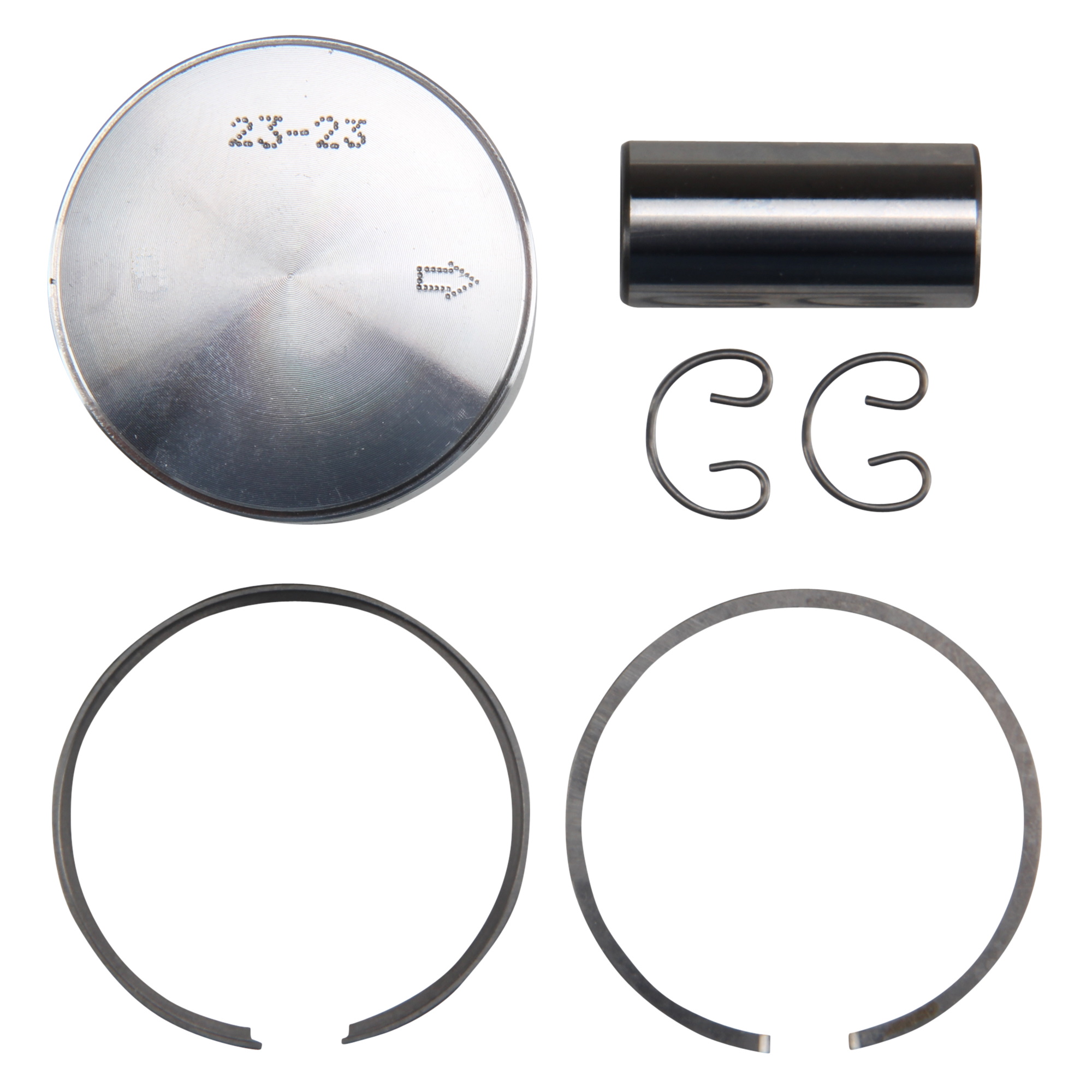

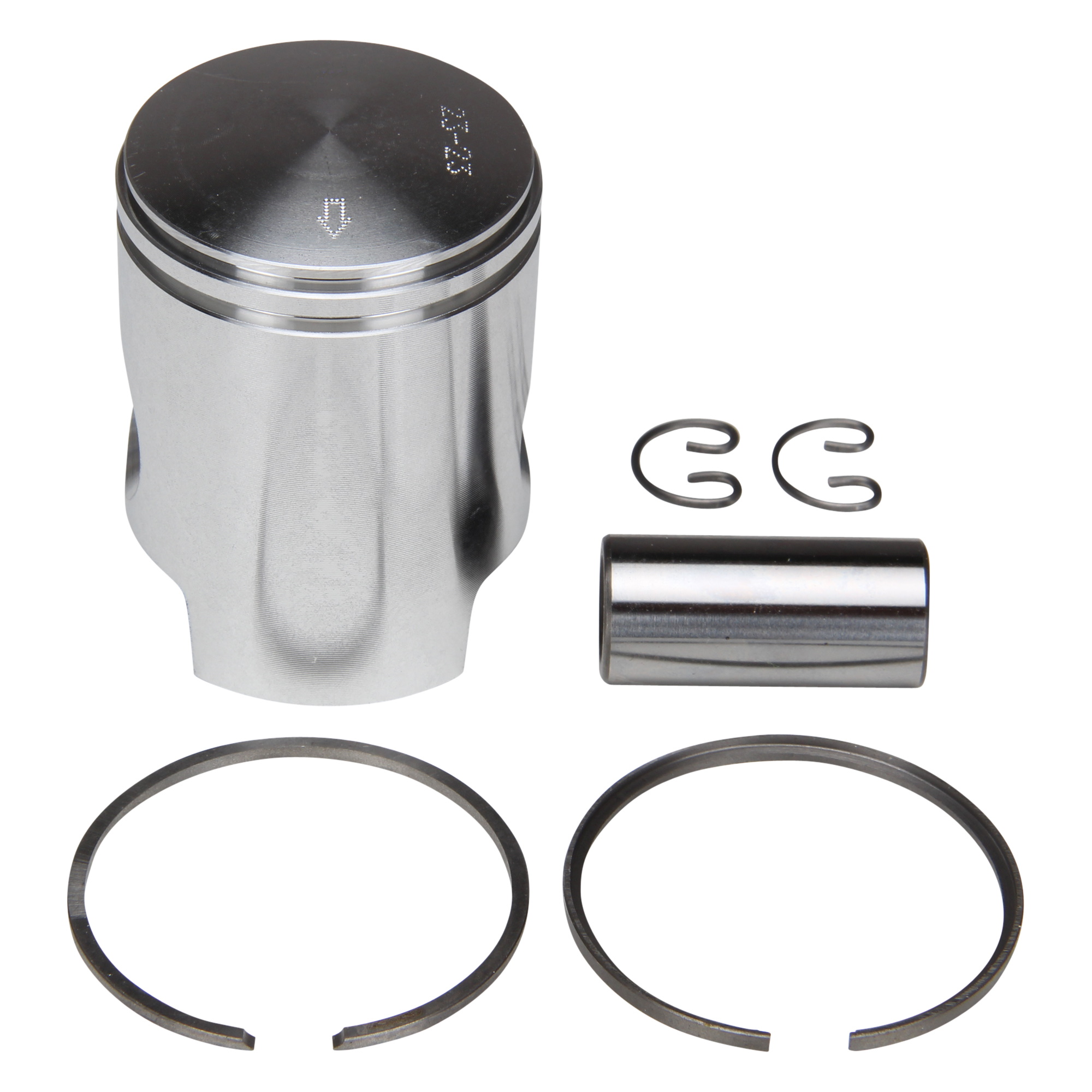

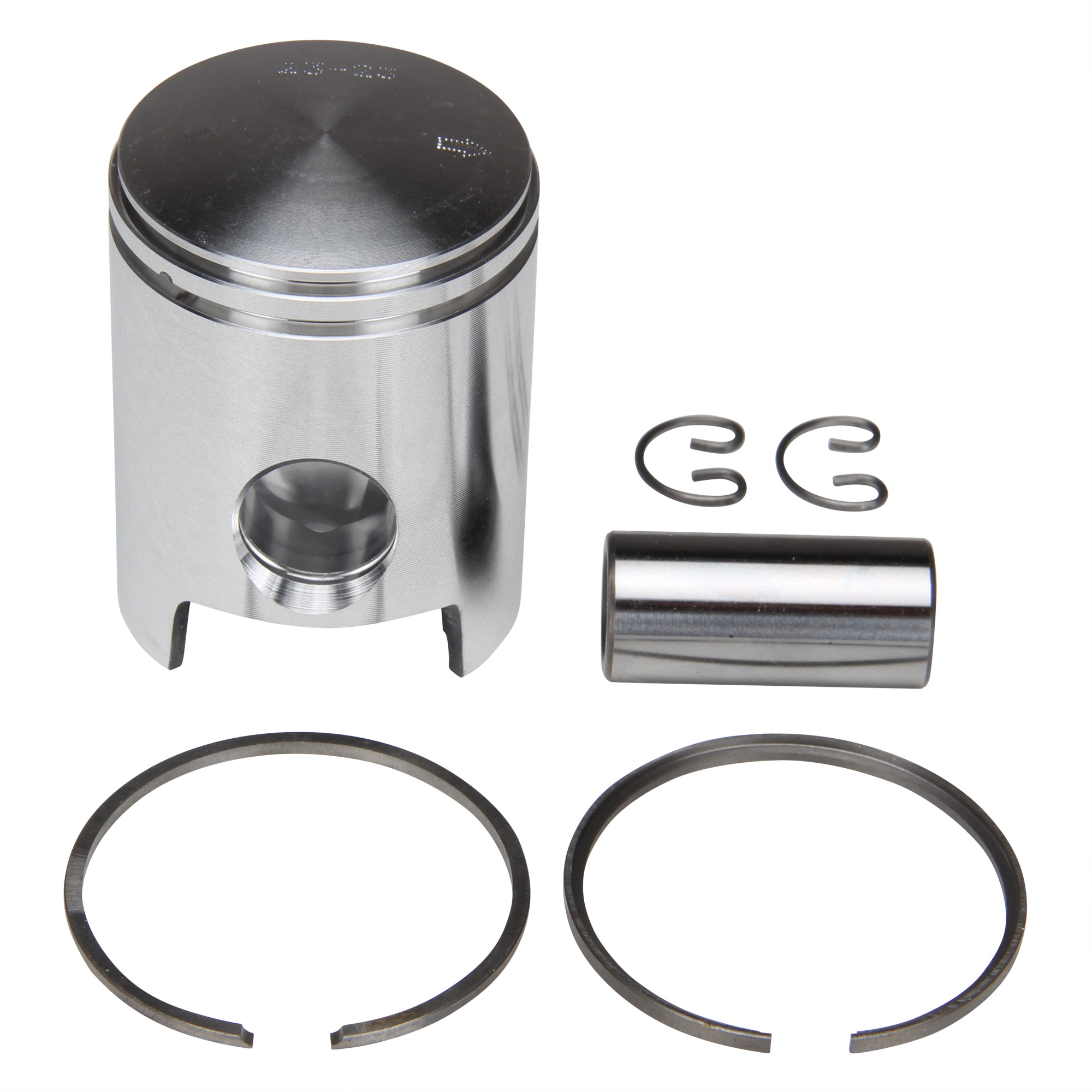

Piston 38mm 50cc Tol. C (37,97mm) for Hercules K50 RS RE RL RX SE SL SX Sprint Ultra SB 1 5 / Sachs 50S aluminum cylinder
- Manufacturer: Meteor Piston
- Item no: 126024
- Manufacturer no.: 126024
- EAN: 4060861180385
Item data
| Product type: | Piston set |
| Dimension B (compression height): | 28 mm |
| Dimension F (piston skirt width inlet side): | 29 mm |
| Dimension I (piston skirt length outlet side): | 42.8 mm |
| Tuning & Styling Part: | No |
| Piston ring (top) Width: | 1.75 mm |
| Vintage part: | Yes |
| Piston ring (top) Shape: | B (groove for center locking pin) |
| Cylinder bores: | 38 mm |
| Dimension C (piston height): | 49 mm |
| Dimension J (max. needle bearing width): | 15 mm |
| Piston ring (top) Dimension: | 38 x 2.0 mm |
| Piston ring (top) Profile: | L-ring |
| Dimension C + D (total height): | 51 mm |
| Dimension G (piston skirt length inlet side): | 42.8 mm |
| OE/OEM reference number(s): | 0286 344 011, 0286 344 111, 0286344011, 0286344111, Meteor SP140300090HI (piston pin), Meteor F0380020017531H0I / F0380015016015H0I (piston ring), Meteor AN1B1410SET (piston clips), Meteor PC0857C (piston) |
| Piston ring (bottom) Width: | 1.60 mm |
| GTIN: | 4060861180385 |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Dimension A (piston diameter): | 37.97 mm |
| Bolt diameter: | 14 mm |
| Piston ring (bottom) Dimension: | 38 x 1.5 mm |
| Dimension D (curvature): | 2 mm |
| Piston ring (bottom) Profile: | Rectangular ring |
| Dimension H (piston skirt width outlet side): | 25.7 mm |
| Scope of delivery: | Piston, Piston rings, Piston pin, Piston clips |
| Bolt length: | 30 mm |
| Dimension E (piston pin diameter): | 14 mm |
| Tolerance size: | C (37.97mm) |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | PC0857C |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
