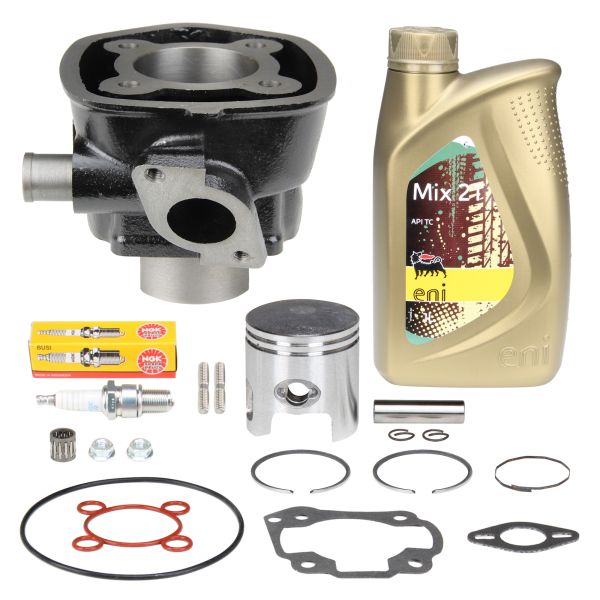

Cylinder Set 70ccm 47mm LARGE for Minarelli LC horizontal Aprilia SR / MBK Nitro / Yamaha Aerox Jog - Citomerx
- Manufacturer: Citomerx
- Item no: 106073
- Manufacturer no.: 106073
- EAN: 4060861224553
Item data
| Product type: | Cylinder set |
| Piston pin diameter: | 10 mm |
| Displacement: | 70 ccm |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Halbtrapezring |
| Vintage part: | No |
| Piston special feature: | Mit zwei 10x15mm Kolbenfensterbohrungen |
| Surface finish: | Matt |
| Cylinder special feature: | Kühlwasseranschluss: 17 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861224553 |
| Diffuser internal dimension: | 24 mm |
| Cylinder dimensions (LxWxH): | 130 x 90 x 90 mm |
| Outlet Stud distance: | 48 mm |
| Scope of delivery: | Cylinder, Gasket set, Kolben Set, 2x Stehbolzen M6x26, 2x Krümmermutter M6, Öl Agip Mix 2T, Zündkerze NGK BR8HS, Nadellager 10x14x13 |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 50 x 50 mm |
| Number of overflows: | 3 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Number of piston rings: | 2 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 106073 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder set Needle bearing Spark plug Stud bolt Oil |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Tuning |
| suitable for: | Minarelli LC horizontal |
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
Racing sport cylinder kit 70 ccm complete for Minarelli lying 50 Aprilia Atala
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Racing 6-valve membrane block for Minarelli horizontal / Yamaha Aprilia Suzuki CPI Generic Keeway
Tuningkit Sport 70ccmm cylinder + 17,5mm carburetor + spark plug for Minarelli horizontal AC engine
Master brake cylinder + wheel brake cylinder rear + front for Vespa Cosa 125 200
Cylinder kit 50ccm including cylinder head & spark plug for Minarelli horizontal AC air-cooled
Experience a noticeable performance boost with the Cylinder Set 70ccm 47mm for Minarelli LC horizontal, suitable for models like Aprilia SR, MBK Nitro, and Yamaha Aerox Jog. This high-quality cylinder set from Citomerx is the ideal solution to optimize the performance of your scooter. Made from durable materials, it offers excellent fit and longevity. Perfect for riders who expect more power and reliability from their vehicle.
Product Advantages
- Noticeable performance boost
- High-quality materials for long-lasting durability
- Precise fit for easy installation
FAQ
Does the cylinder set fit my scooter?
Yes, the cylinder set is compatible with Minarelli LC horizontal engines and fits Aprilia SR, MBK Nitro, and Yamaha Aerox Jog.
How difficult is the installation?
Thanks to the precise fit and accurate manufacturing tolerances, installation is relatively easy and can be performed by experienced hobby mechanics.
Optional Usage Tips
For optimal performance and longevity, we recommend thoroughly breaking in the cylinder set after installation and maintaining it regularly.
Take advantage now and secure this high-quality cylinder set from Citomerx. Experience more power and improved driving dynamics. Order today and get your scooter in top shape!
Scope of Delivery
✔ Cylinder 70ccm
✔ Piston 47mm
✔ Piston Rings
✔ Gaskets
✔ Mounting Accessories
