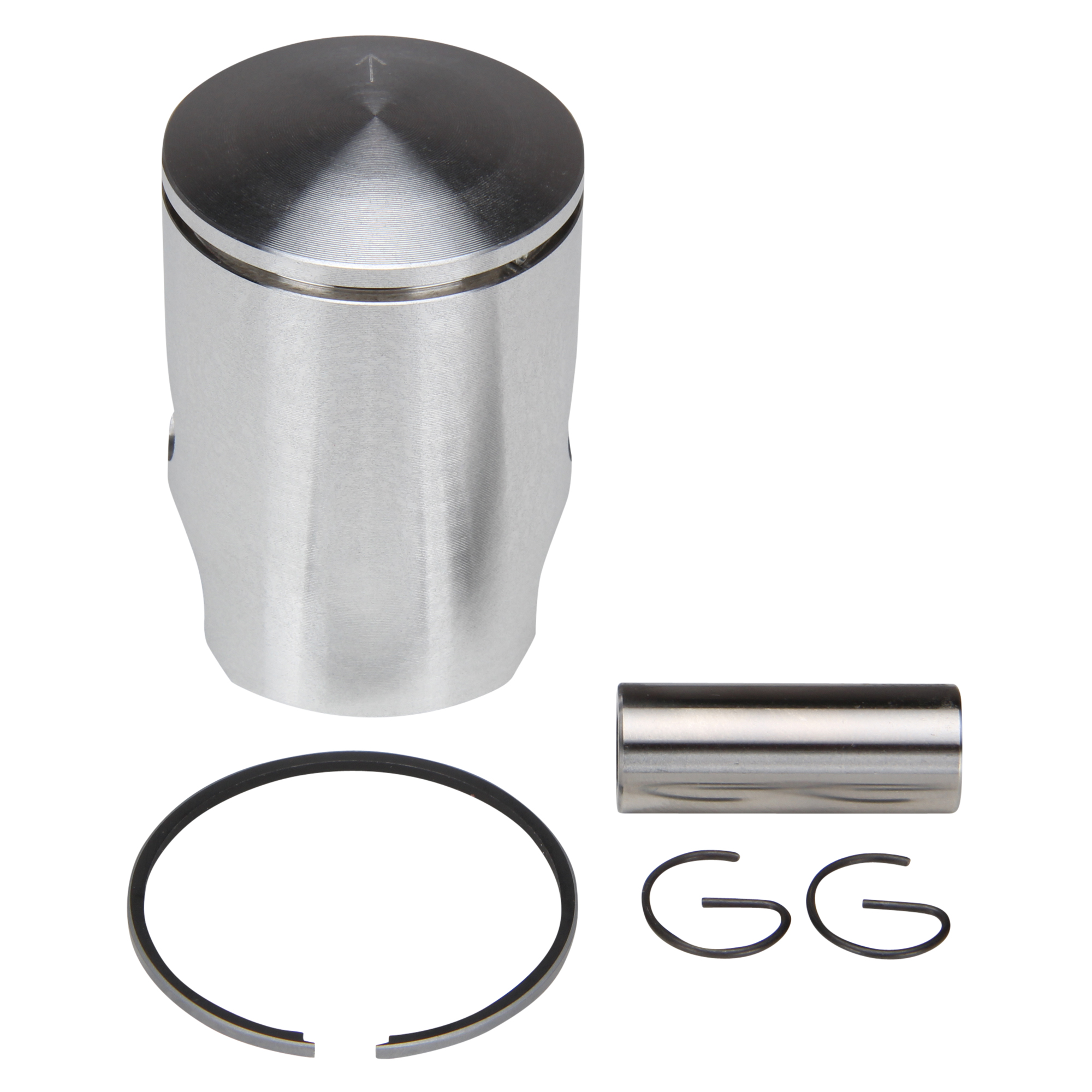

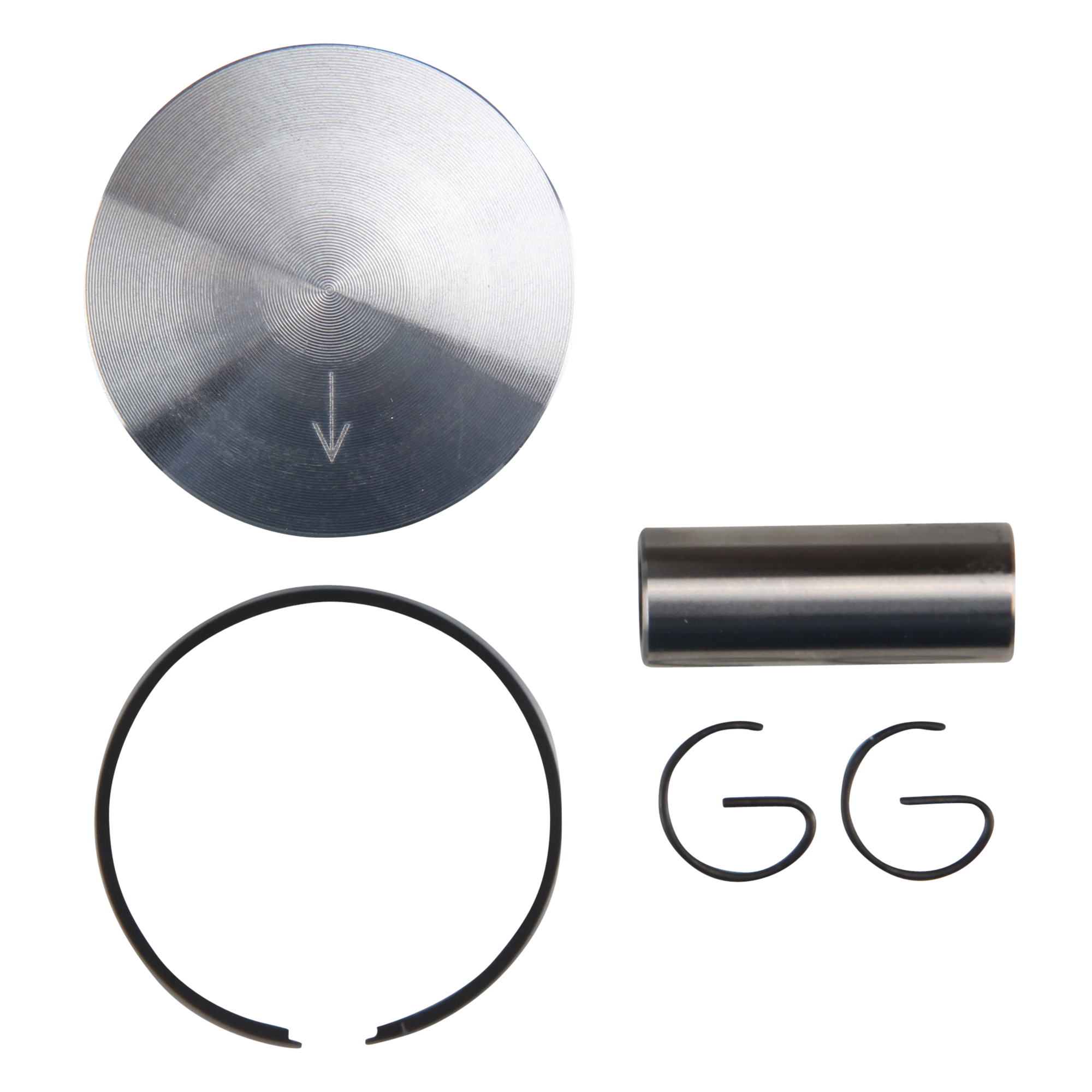

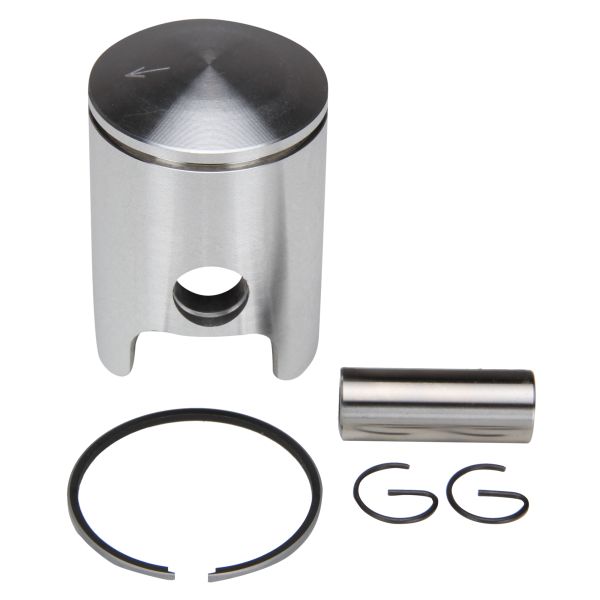

Tuning piston set 38mm 50cc for Hercules Prima M 2 3 4 5 Optima GT HR Jogging Sachs 504 505 506
- Manufacturer: Citomerx
- Item no: 126025
- Manufacturer no.: 126025
- EAN: 4260250310403
Item data
| Product type: | Piston set |

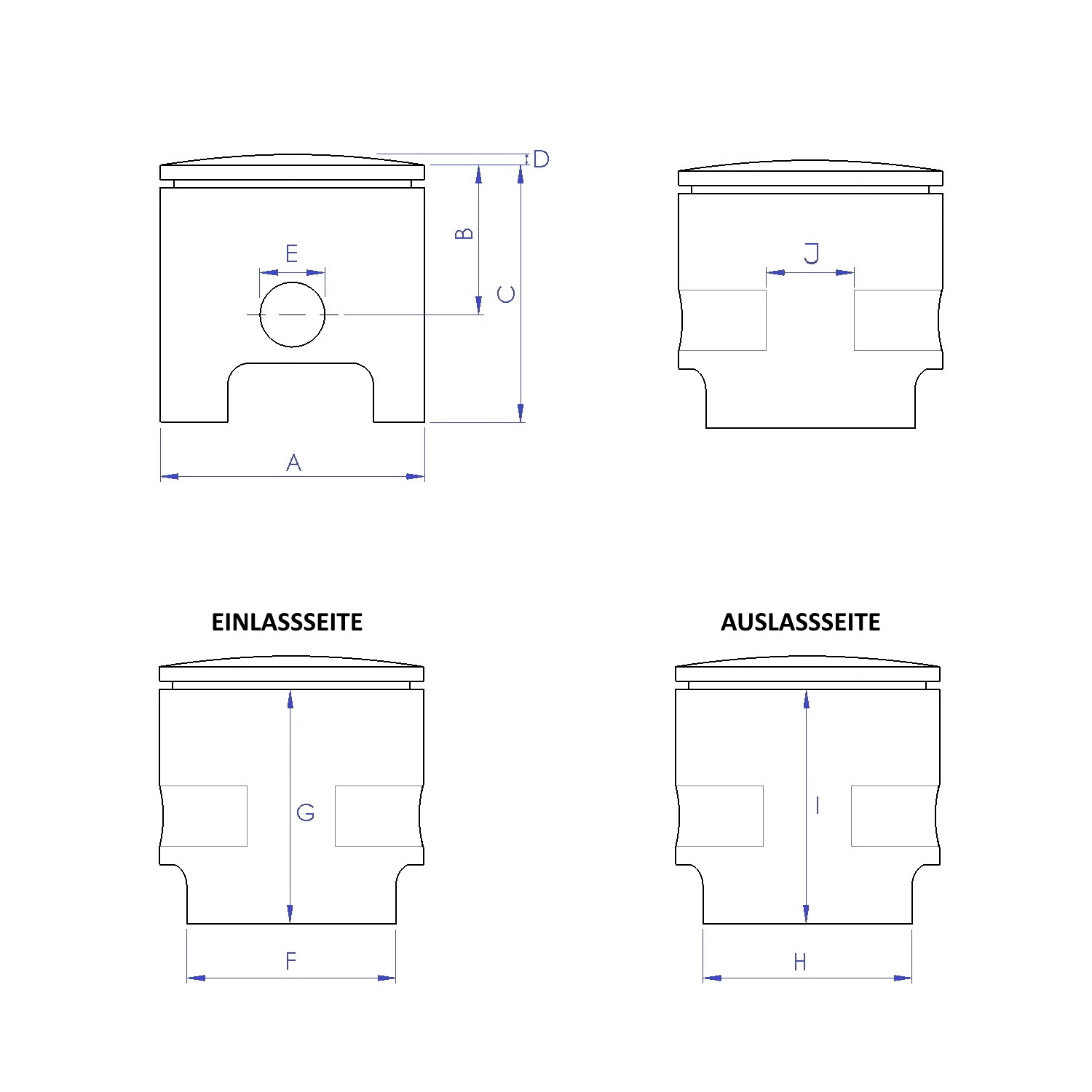

| Dimension B (compression height): | 28 mm |
| Dimension F (piston skirt width inlet side): | 31 mm |
| Dimension I (piston skirt length outlet side): | 47 mm |
| Piston ring dimension: | 38 x 1.5 mm |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Cylinder bores: | 38 mm |
| Dimension C (piston height): | 51 mm |
| Dimension J (max. needle bearing width): | 16 mm |
| Dimension C + D (total height): | 54 mm |
| Dimension G (piston skirt length inlet side): | 47 mm |
| GTIN: | 4260250310403 |
| Dimension A (piston diameter): | 38.00 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 3 mm |
| Dimension H (piston skirt width outlet side): | 27.6 mm |
| Bolt length: | 31 mm |
| Piston ring width: | 1.65 mm |
| Dimension E (piston pin diameter): | 12 mm |
| Piston ring shape: | B (groove for center locking pin) |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 126025 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| suitable for: | 50 cc |
