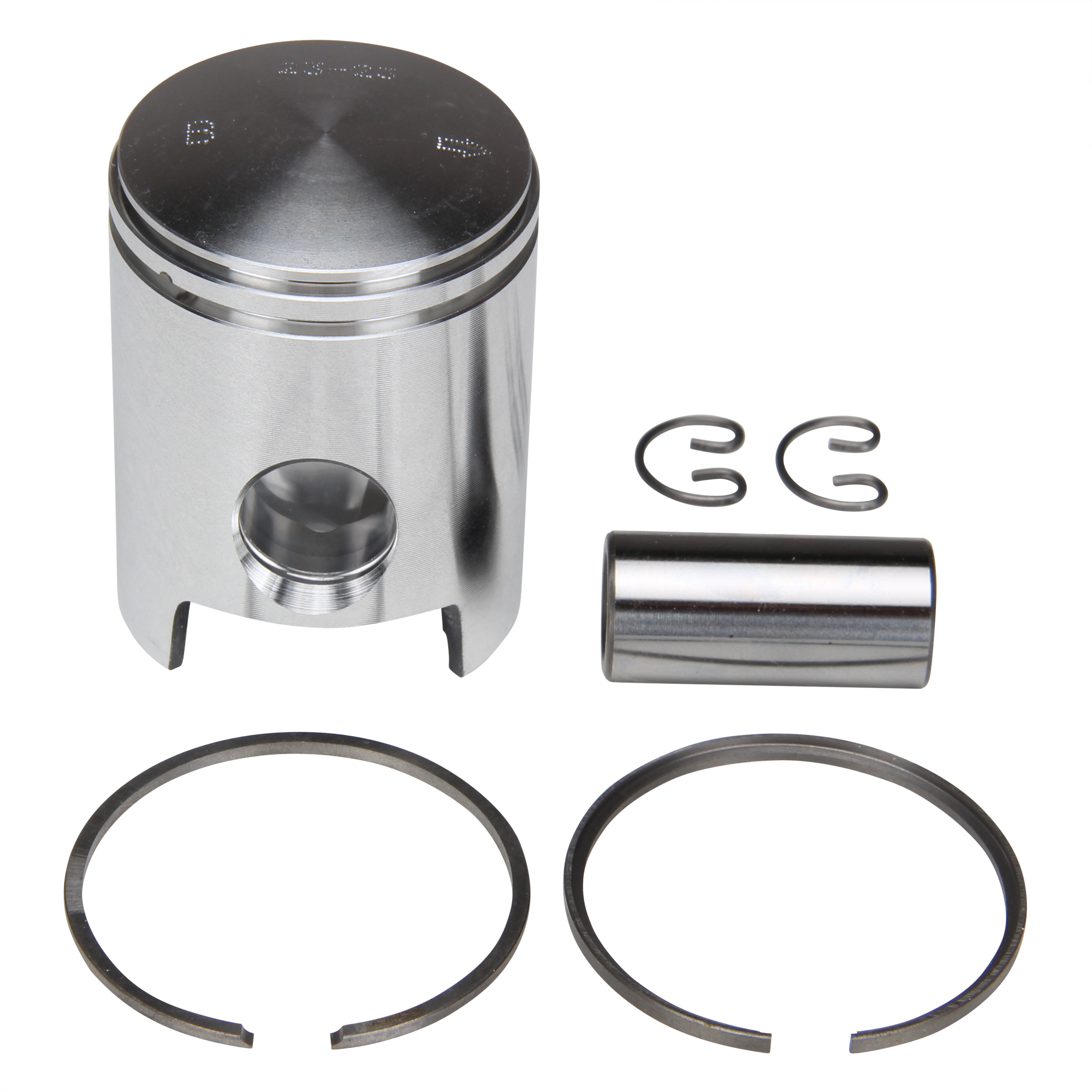

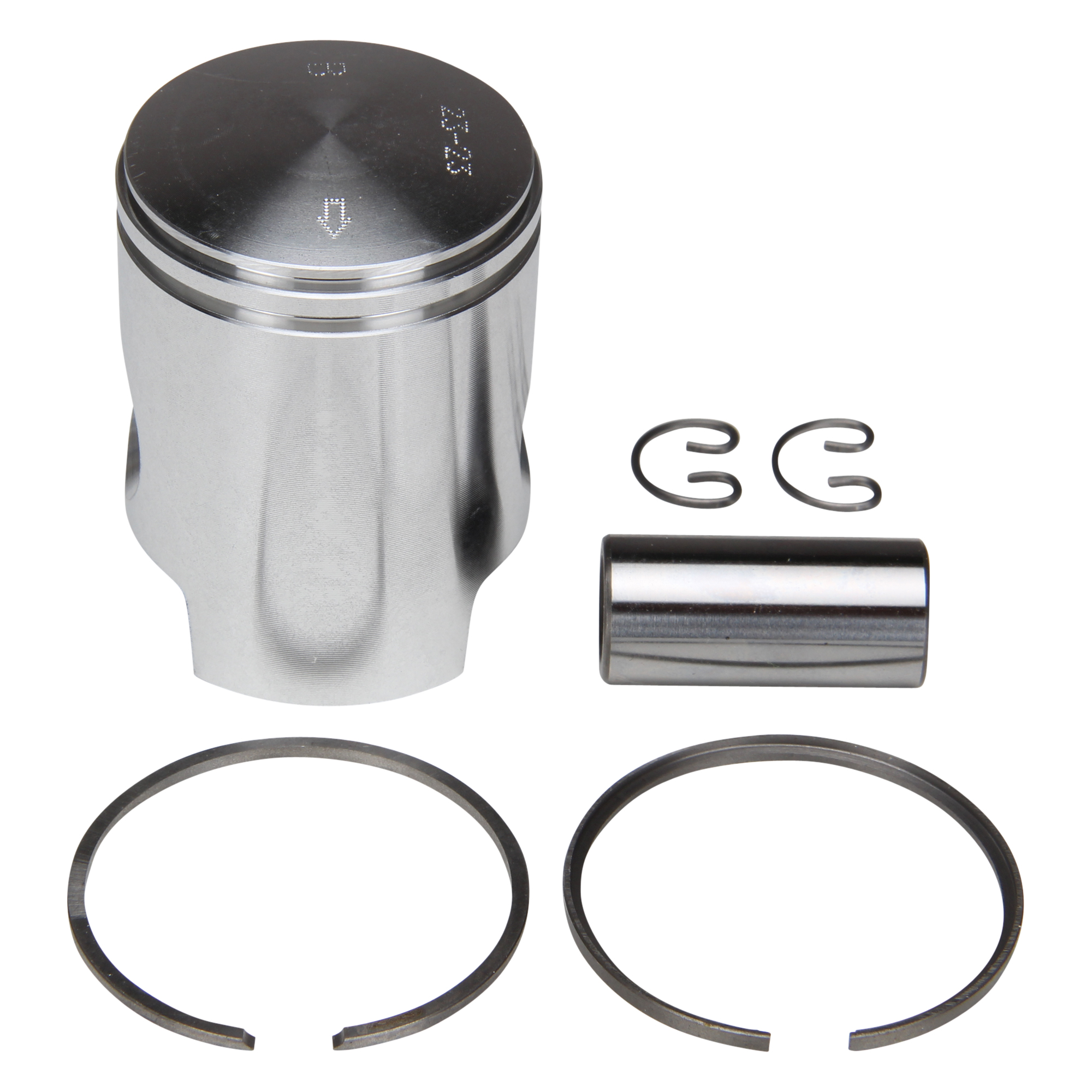

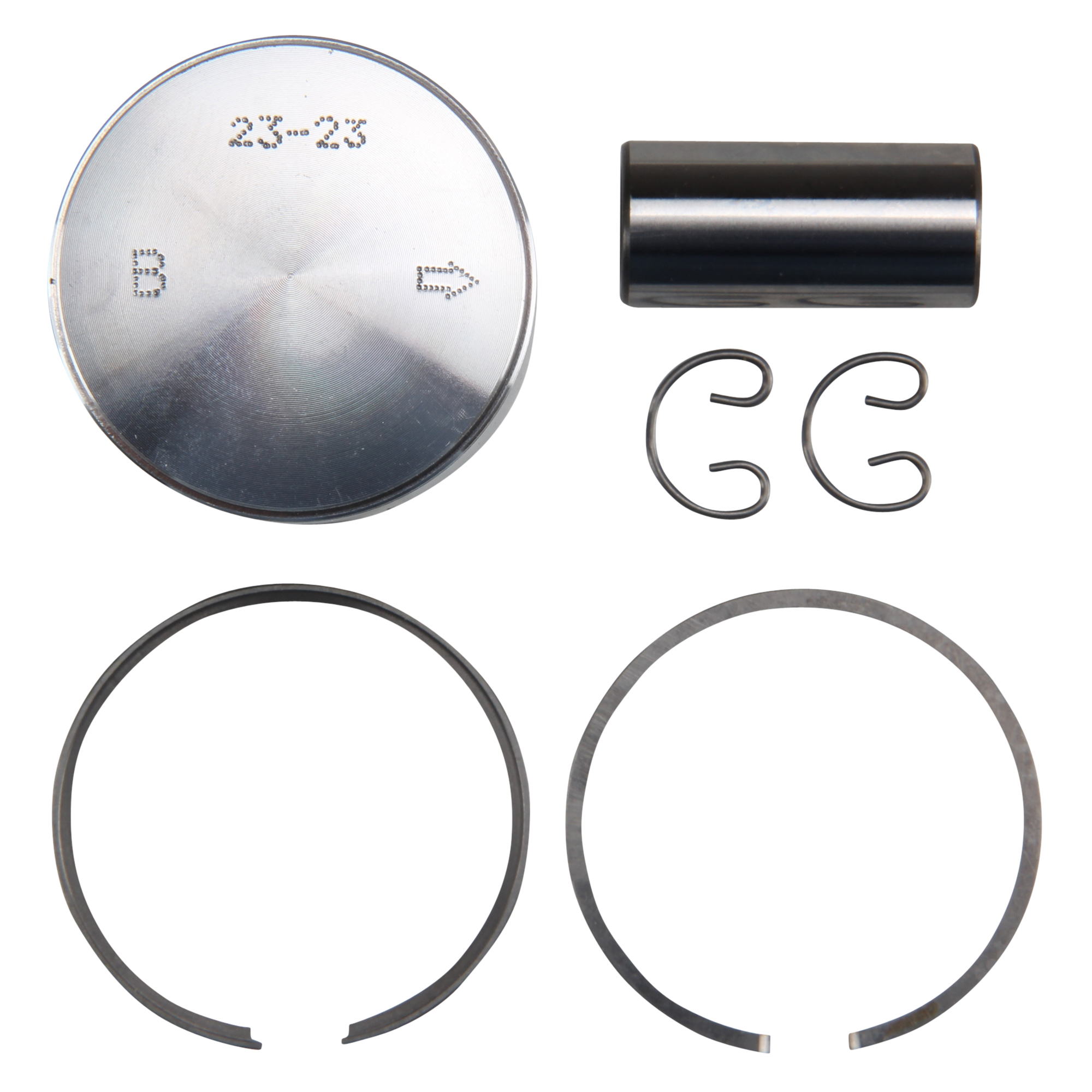

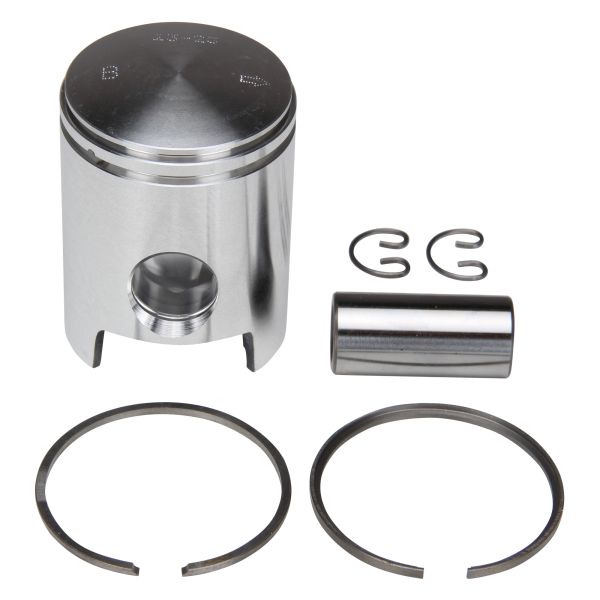

Meteor piston set 38mm Tol. B 50ccm for Hercules K50 RS RE RL RX SE SL SX Sprint Ultra SB 1 5 / Sachs 50S aluminum cylinder
- Item no: PC0857B
- EAN: 4060861124563
- Manufacturer: Meteor Piston
- Manufacturer no.: PC0857B
- Height: 50 cm
- Width: 50 cm
Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1963-1970 )
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (1974-1980)
Hercules K 50 RX (1969-1972)
Hercules K 50 SE (1973 -1974)
Hercules K 50 SL (1974-)
Hercules K 50 SX (1969-1972)
Hercules K 50 Sprint (1969-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules RT 159 Jet (1973)
Hercules RT 159 (1973)
Hercules SB 1 Sport Bike (1972-1975)
Hercules SB 5 Sport Bike (1975-1979)
Sachs 50S aluminum cylinder
Vintage part: | Yes, Yes |
Dimension I (piston skirt length outlet side): | 42.8 mm |
OE/OEM reference number(s): | 0286 344 011, 0286 344 111, 0286344011, 0286344111, Meteor AN1B1410SET (piston clips), Meteor F0380020017531H0I / F0380015016015H0I (piston ring), Meteor PC0857B (piston), Meteor SP140300090HI (piston pin) |
Bolt length: | 30 mm |
Dimension C + D (total height): | 51 mm |
Dimension D (curvature): | 2 mm |
Dimension G (piston skirt length inlet side): | 42.8 mm |
Piston ring (top) Width: | 1.75 mm |
Piston ring (top) Shape: | B (groove for center locking pin) |
Piston ring (top) Profile: | L-ring |
Piston ring (bottom) Width: | 1.60 mm |
Piston ring (bottom) Dimension: | 38 x 1.5 mm |
Dimension F (piston skirt width inlet side): | 29 mm |
Dimension H (piston skirt width outlet side): | 25.7 mm |
GTIN: | 4060861124563 |
Dimension A (piston diameter): | 37.96 mm |
Tolerance size: | B (37.96mm) |
Piston ring (top) Dimension: | 38 x 2.0 mm |
Dimension J (max. needle bearing width): | 15 mm |
Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
Tuning & Styling Part: | No |
Bolt diameter: | 14 mm |
Cylinder bores: | 38 mm |
Dimension E (piston pin diameter): | 14 mm |
Dimension B (compression height): | 28 mm |
Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
Dimension C (piston height): | 49 mm |
Piston ring (bottom) Profile: | Rectangular ring |
Color: | Silver |
Piston diameter: | 38 mm |
Engine type: | 2-stroke |
Scope of delivery: | 1x piston set |
Manufacturer number: | PC0857B |
Country and region of manufacture: | Italy |
Product type: | Piston set |
Type of motorcycle: | Moped & Mokick |
Offer package: | Yes, Yes |
Description of the package content: | Piston + piston rings + piston pin + piston clips |
Manufacturer warranty: | 2 years |
Material: | Aluminum alloy |
suitable for: | 50 cc |
Meteor Piston is known for over 60 years for high quality piston sets, pistons and piston rings in OEM quality. In the 50's Kolebn for Vespa scooters and Lambretta scooters were manufactured with aluminum coating. Meanwhile Meteor Piston offers its products not only for scooters but also for Maxi, Quad and ATV. As a special feature, all small parts such as piston rings, circlips or piston pins are included with the piston sets.
