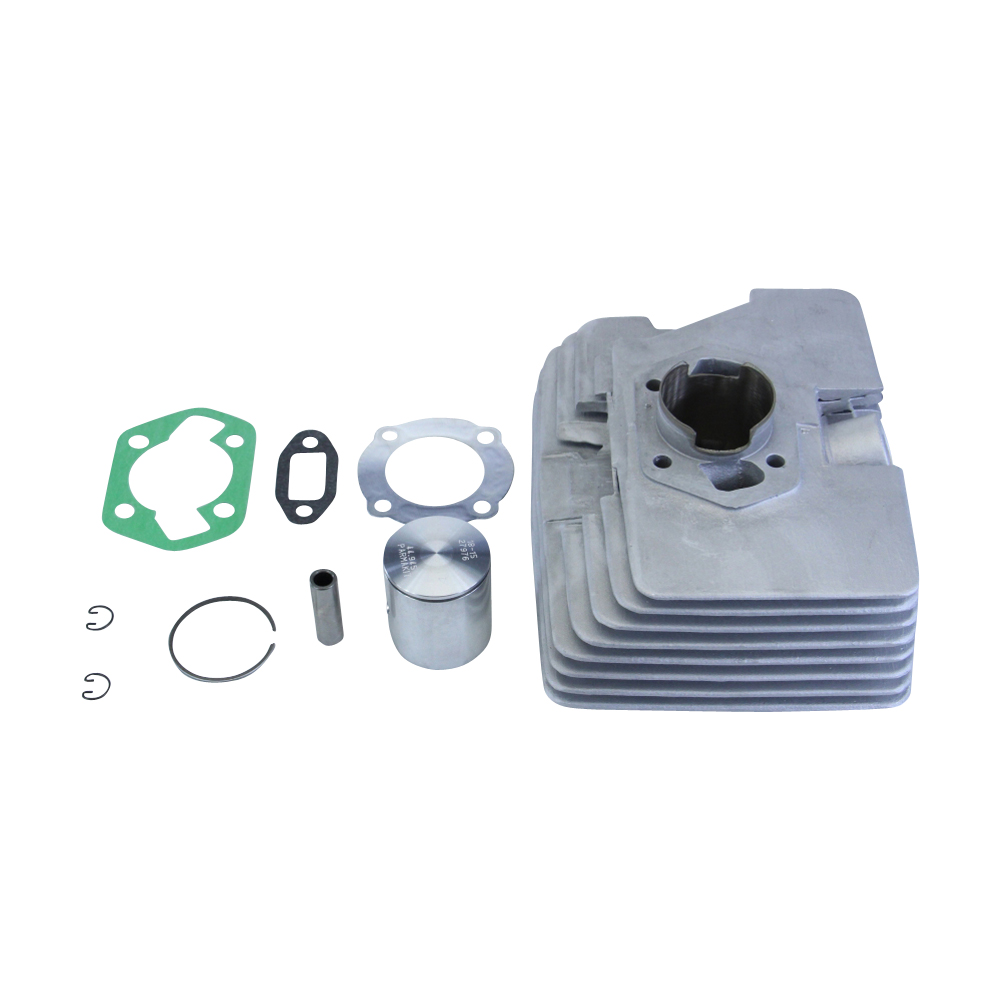

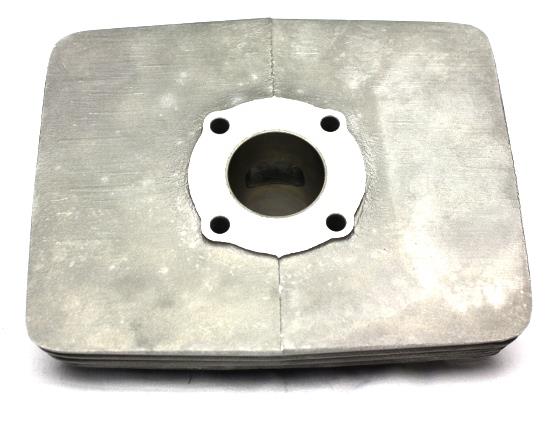

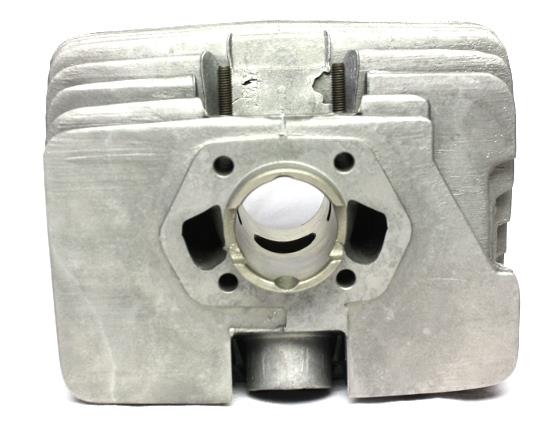

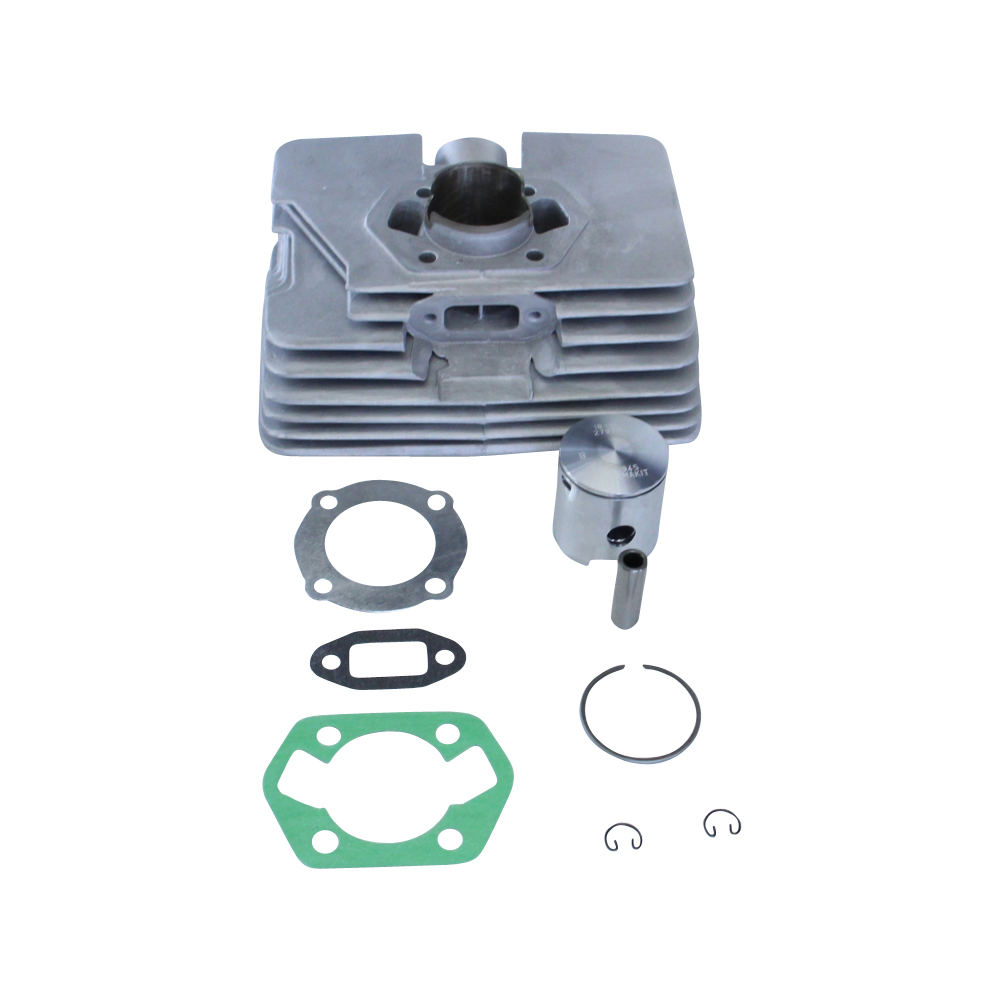

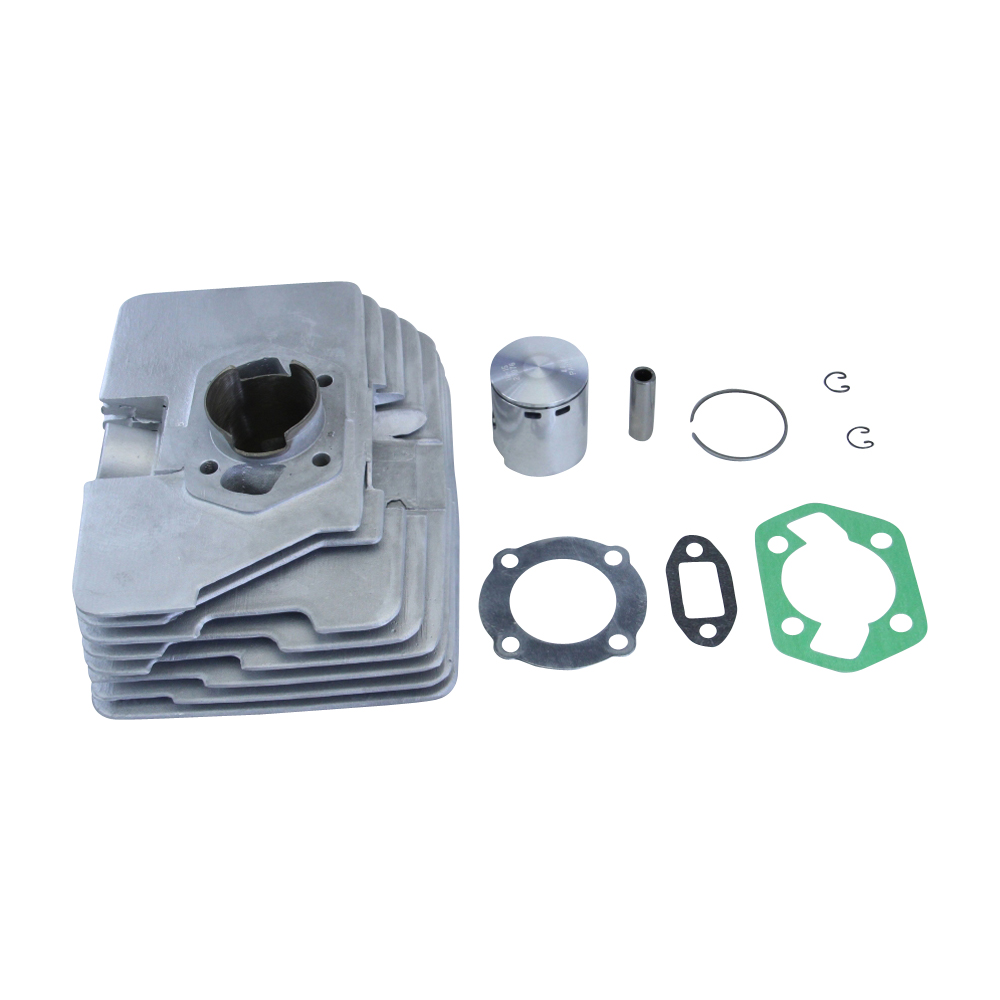

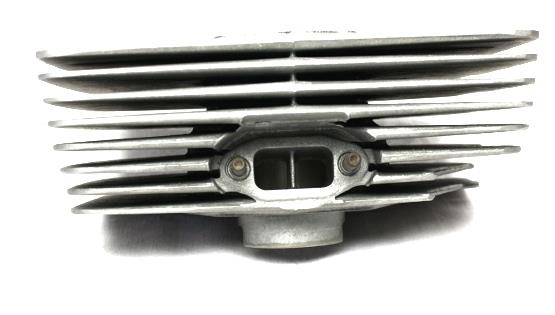

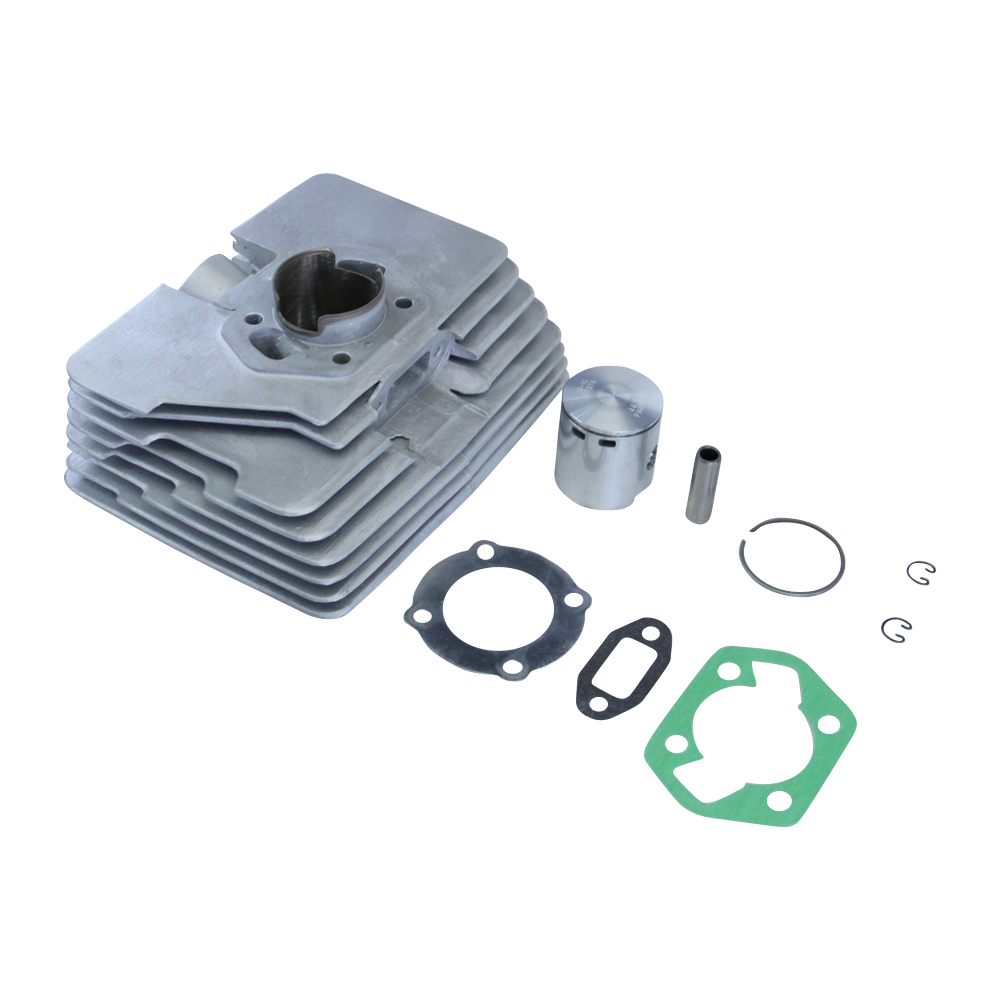

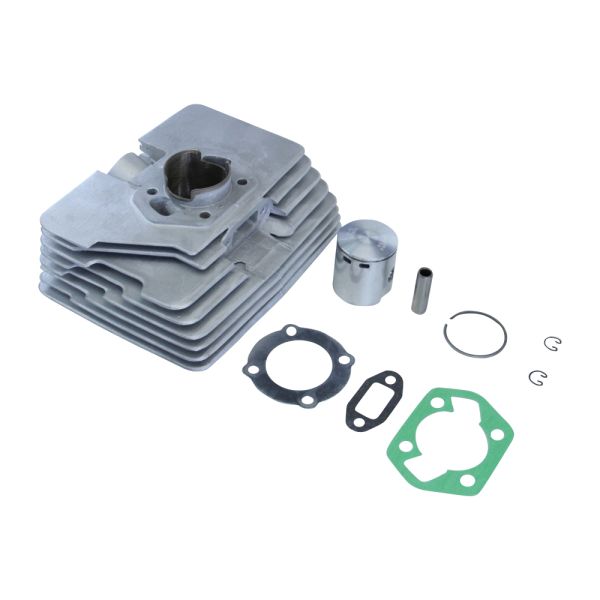

Cylinder set 50ccm 39mm (4 ÜS) for Zündapp Supertherm KS 50 517 530 / GTS 50 529 / CS Hai 50 448
- Manufacturer: Parmakit
- Item no: 85205.00
- Manufacturer no.: 85205.00
- EAN: 4060861167447
Item data
| Product type: | Cylinder set |
| Piston pin diameter: | 12 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Tuning & Styling Part: | Yes |
| Piston ring profile: | Rectangular ring |
| Vintage part: | Yes |
| Piston special feature: | With four 4 mm piston window bores / chrome-plated piston ring |
| Surface finish: | Matt |
| Cylinder special feature: | Nikasil-coated piston track |
| Inlet inside dimension: | 17 x 30 mm, square |
| Outlet Outer dimension: | 36 mm |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| GTIN: | 4060861167447 |
| Inlet stud spacing: | 45 mm |
| Inlet stud bolt thread: | M6 |
| Diffuser internal dimension: | 29 mm |
| Cylinder dimensions (LxWxH): | 160 x 200 x 90 mm |
| Scope of delivery: | Gasket set, Piston, Piston rings, Cylinder |
| Cylinder stud distance: | 45 x 45 mm |
| Number of overflows: | 4 |
| Comparison number: | Parmakit 85205.00, Piston 85206.02, Piston ring 27110.16, Gasket set 85205.03 |
| Cylinder stud bore: | 8 mm |
| Manifold connection type: | Clamp/plug |
| Color: | Grey |
| Number of piston rings: | 1 |
| Features: | Durable, Corrosion resistant |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 85205.00 |
| Country and region of manufacture: | Italy |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 2.60 kg |
| Material: | Aluminum |
| Type: | Tuning |
| suitable for: | Zündapp Supertherm |
