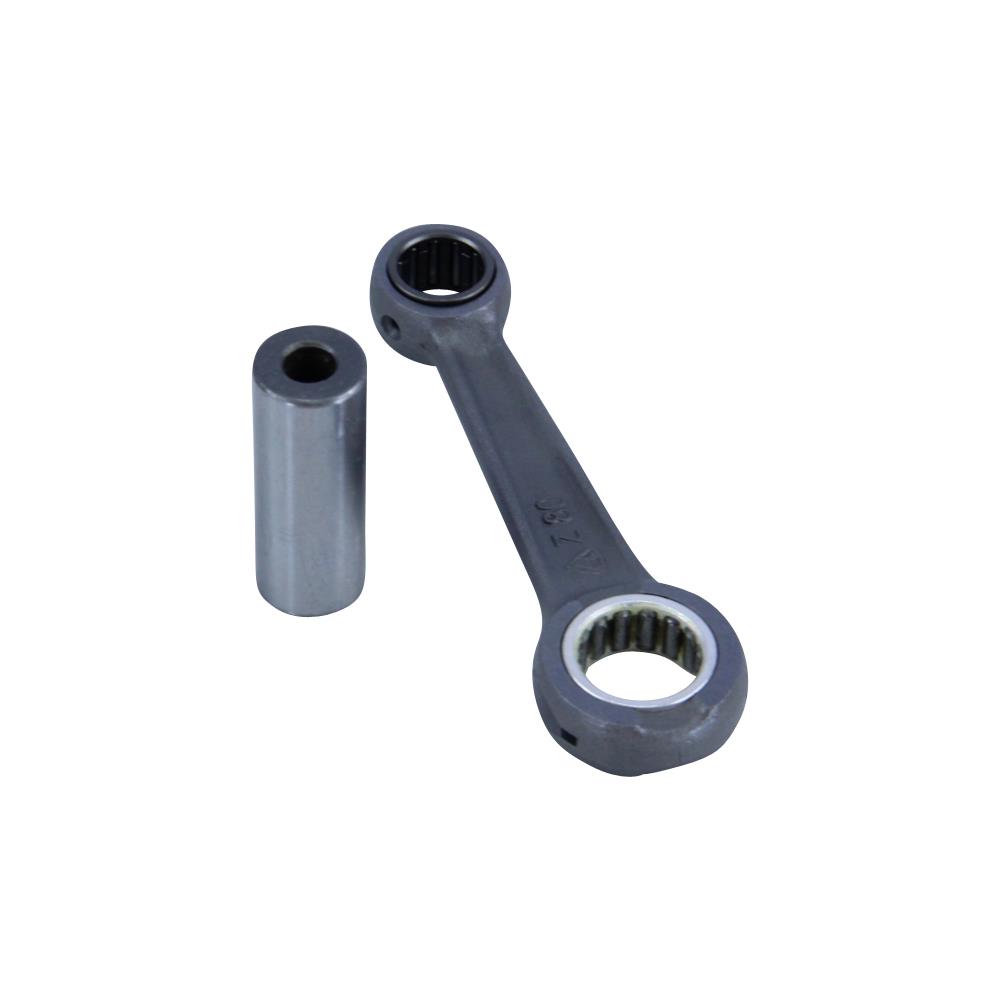

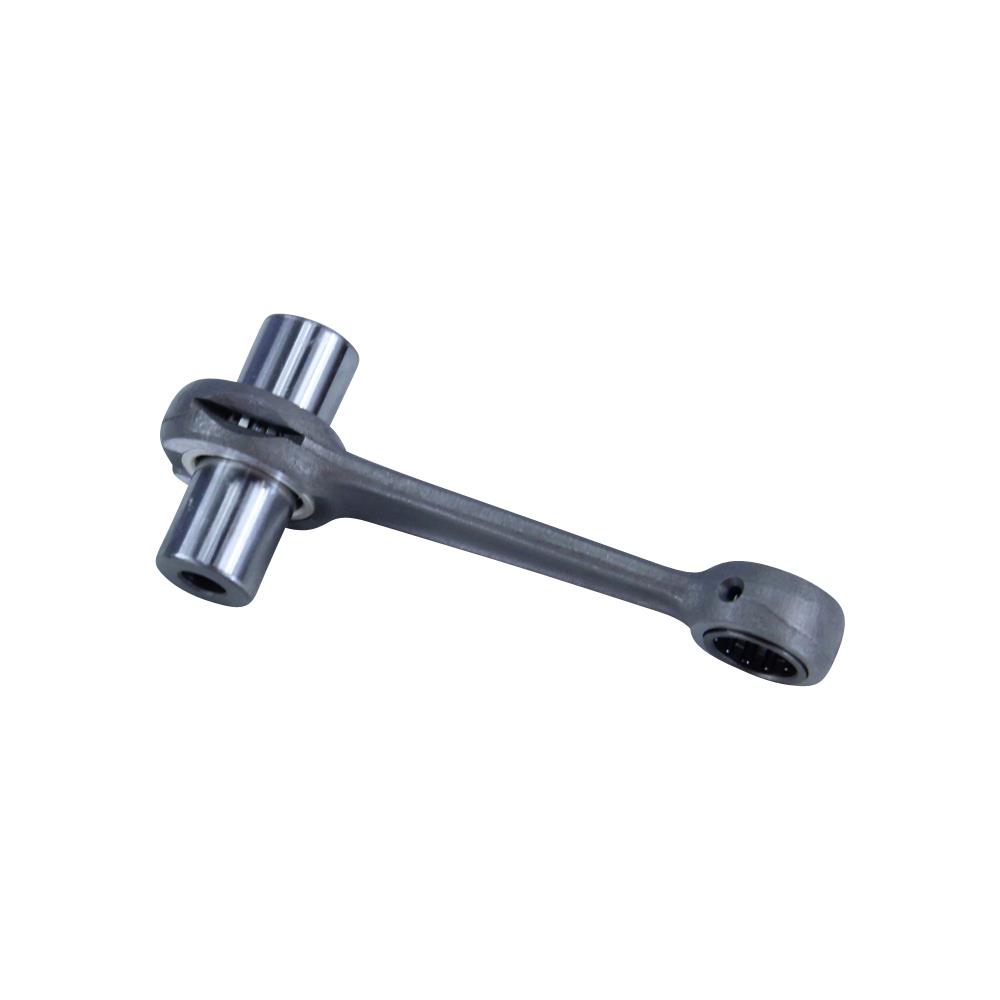

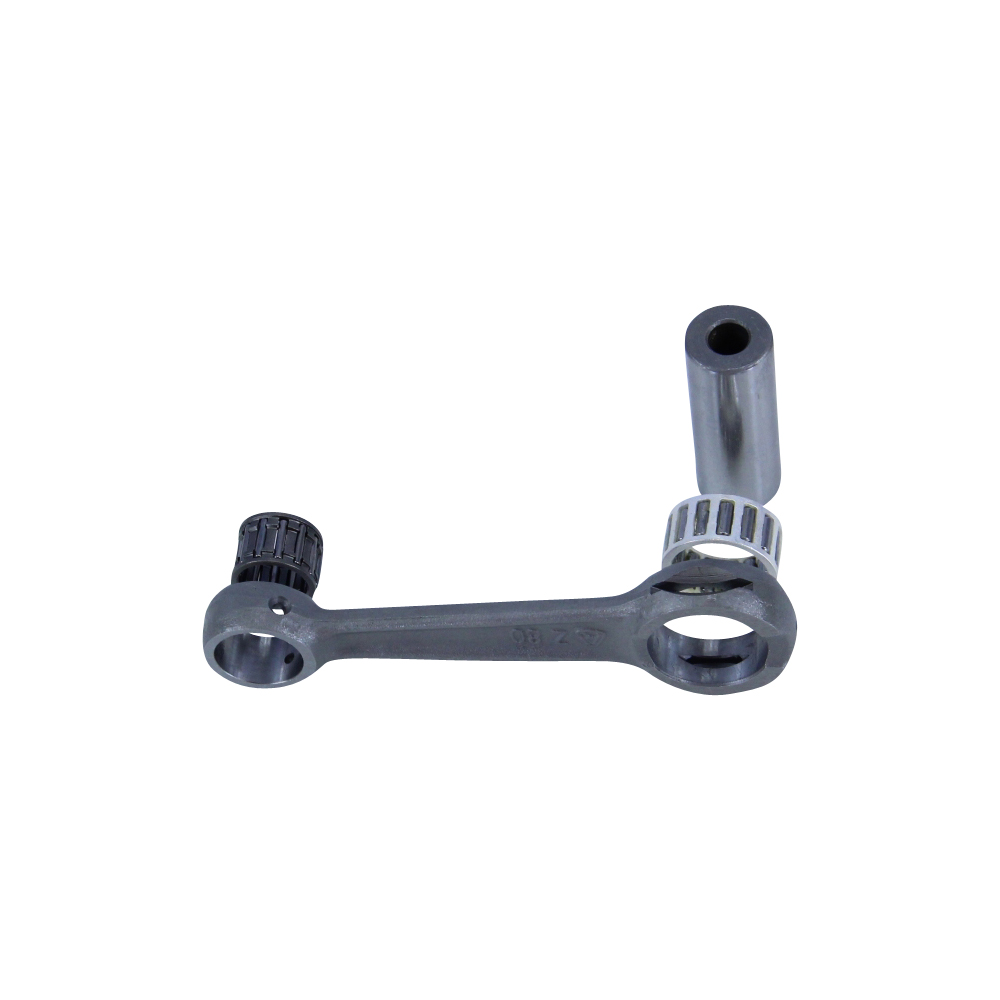

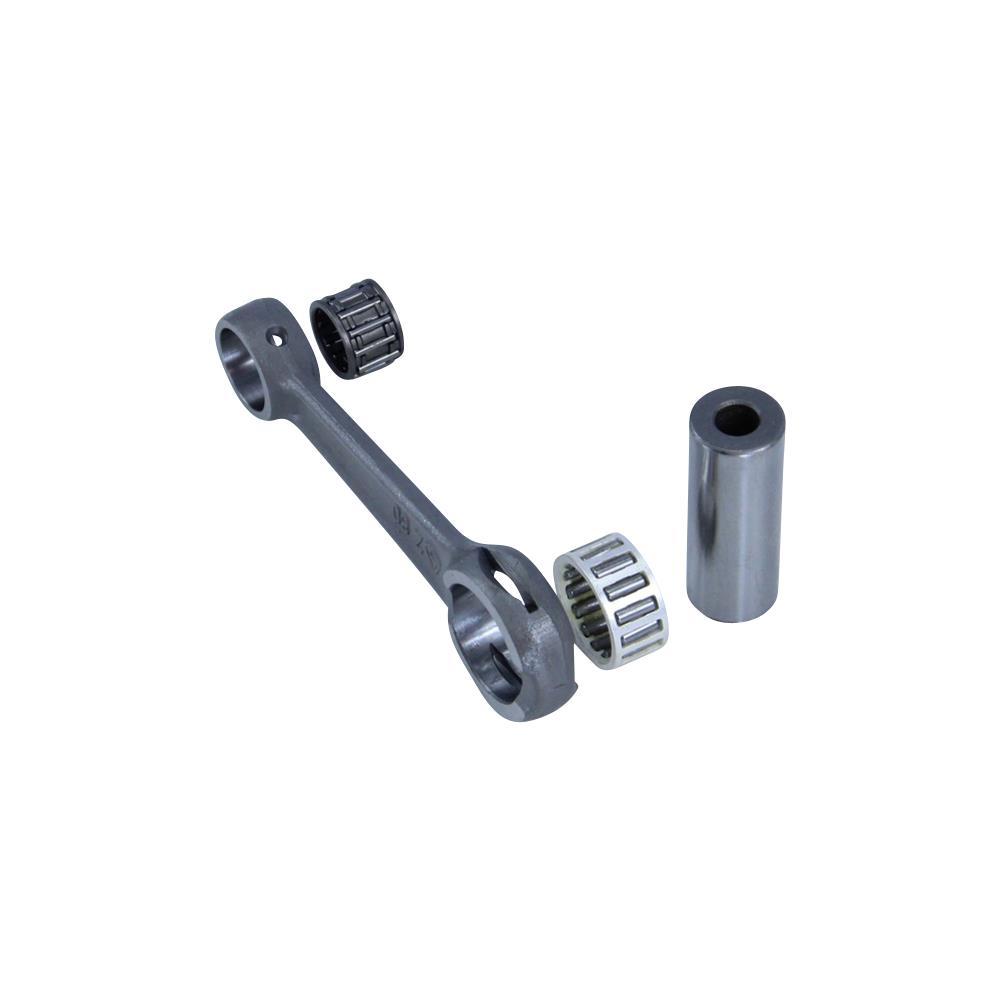

RITO connecting rod repair kit ORIGINAL for Zündapp KS K SX 80 type 530 537 540
- Manufacturer: RITO
- Item no: 09.195.30.1.112
- Manufacturer no.: 09.195.30.1.112
- EAN: 4251048860095
Item data
| Product type: | Connecting rod |

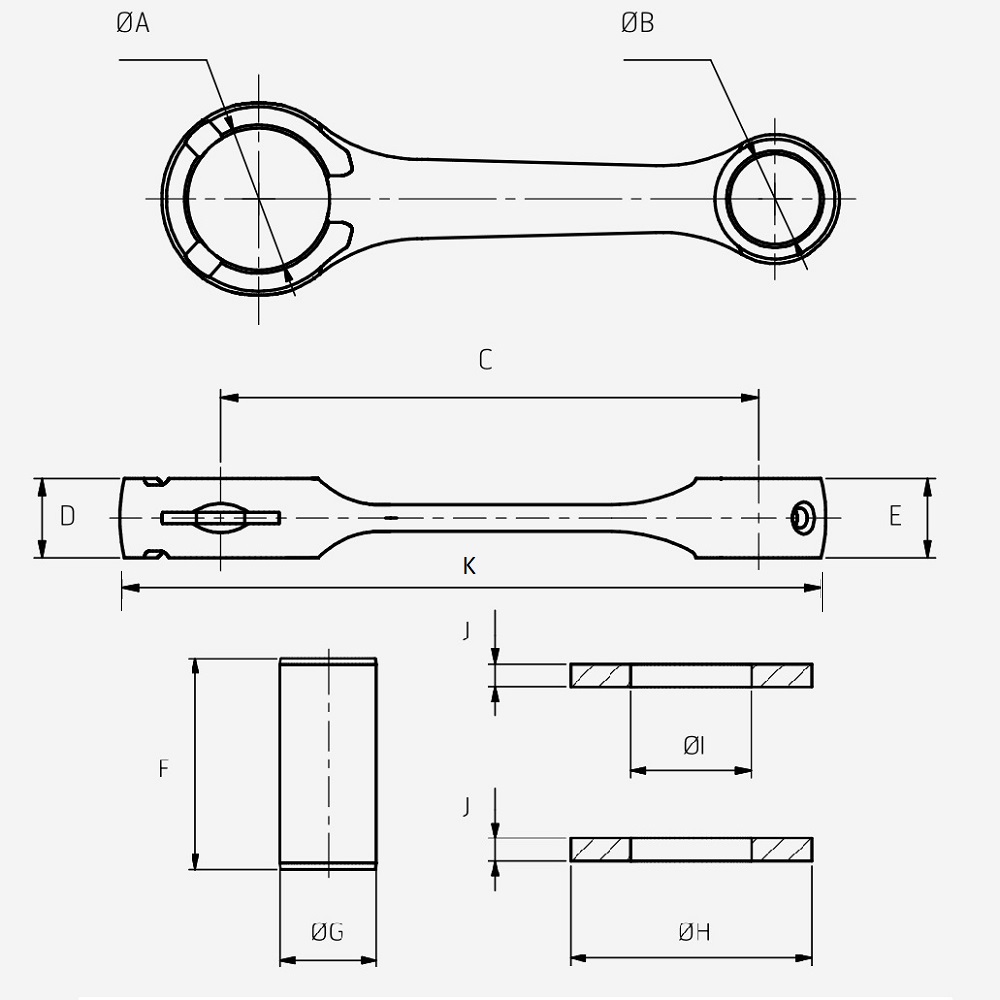

| Dimension F (length of lifting pin): | 47.9 mm |
| Feature: | 91 mm connecting rod |
| Needle roller bearing pin dimensions: | 18x24x11.8 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 14x18x14.5 mm |
| Surface finish: | Matt |
| Dimension C (connecting rod length): | 91 mm |
| Dimension G (diameter of lifting pin): | 18 mm |
| matching piston pin: | 14 mm |
| Dimension K (total length of connecting rod): | 120 mm |
| OE/OEM reference number(s): | RITO 09.195.30.1.112 |
| GTIN: | 4251048860095 |
| Dimension A (diameter of connecting rod eye at bottom): | 24 mm |
| Dimension D (width of connecting rod at bottom): | 11.8 mm |
| Scope of delivery: | Bolt, Needle roller bearing, Connecting rod |
| Dimension E (top width of connecting rod): | 11.8 mm |
| Dimension B (top diameter of connecting rod eye): | 18 mm |
| Color: | Grey |
| Scope of delivery: | 1x connecting rod repair kit |
| Manufacturer number: | 09.195.30.1.112 |
| Country and region of manufacture: | Portugal |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Connecting rod incl. needle bearing, crank pin |
| Manufacturer warranty: | 2 years |
| Weight: | 0.185 kg |
| Material: | Cast iron |
| Type: | Original |
Prices plus VAT plus shipping costs
In stock! Delivery time 1-3 working days
Cylinder kit 50cc including cylinder head + valves for China scooters, Baotian, Rex RS450
Cylinder kit 50cc Minarelli AC air-cooled horizontal engines, CPI, Rexy, Keeway
Cylinder kit 50cc AC air-cooled 12mm bolt angled flange for horizontal CPI engines, CPI, Keeway
Cylinder Kit 70cc LC watercooled incl. head for Piaggio engines, NRG, ZIP, NTT, Gilera Runner
RITO crankshaft RACING 19000RPM (91mm connecting rod) (44mm stroke) for Zündapp 3/4 gear
KS 80 WK type 530-050 (up to engine no. 9925610)
KS 80 Touring type 530-070 (up to engine no. 9925610)
KS 80 WK type 530-050 ( from engine no. 9925611)
KS 80 Touring type 530-070 (from engine no. 9925611)
KS 80 Super type 537-010 (up to engine no. 1015760)
KS 80 Super Type 537-010 (from engine no. 1015761)
K 80 Type 540-010
K 80 Type 540-011
SX 80 Type 540-150
K 80 WK Type 540-200
António Ferreira Rito & Filhos
Rua de Ventosa 37 C
4705-112 Braga
Web page https://www.rito.pt/en/
Email: rito@rito.pt
| Product type | Connecting rod |
|---|---|
| Dimension F (length of lifting pin) | 47.9 mm |
| Feature | 91 mm connecting rod |
| Needle roller bearing pin dimensions | 18x24x11.8 mm |
| Tuning & Styling Part | No |
| Vintage part | Yes |
| Dimensions needle bearing piston pin | 14x18x14.5 mm |
| Surface finish | Matt |
| Dimension C (connecting rod length) | 91 mm |
| Dimension G (diameter of lifting pin) | 18 mm |
| matching piston pin | 14 mm |
| Dimension K (total length of connecting rod) | 120 mm |
| OE/OEM reference number(s) | RITO 09.195.30.1.112 |
| GTIN | 4251048860095 |
| Dimension A (diameter of connecting rod eye at bottom) | 24 mm |
| Dimension D (width of connecting rod at bottom) | 11.8 mm |
|---|---|
| Scope of delivery | Bolt, Needle roller bearing, Connecting rod |
| Dimension E (top width of connecting rod) | 11.8 mm |
| Dimension B (top diameter of connecting rod eye) | 18 mm |
| Color | Grey |
| Scope of delivery | 1x connecting rod repair kit |
| Manufacturer number | 09.195.30.1.112 |
| Country and region of manufacture | Portugal |
| Type of motorcycle | Moped & Mokick |
| Offer package | Yes |
| Description of the package content | Connecting rod incl. needle bearing, crank pin |
| Manufacturer warranty | 2 years |
| Weight | 0.185 kg |
| Material | Cast iron |
| Type | Original |
